Which gas is not normally used in TIG welding?

Introduction to TIG Welding

TIG welding, or Tungsten Inert Gas welding, stands as a highly precise and versatile welding technique. It primarily employs a non-consumable tungsten electrode to produce the weld. TIG welding finds extensive use across various industries due to its ability to produce high-quality, clean welds with minimal spatter.

Overview of TIG Welding Process

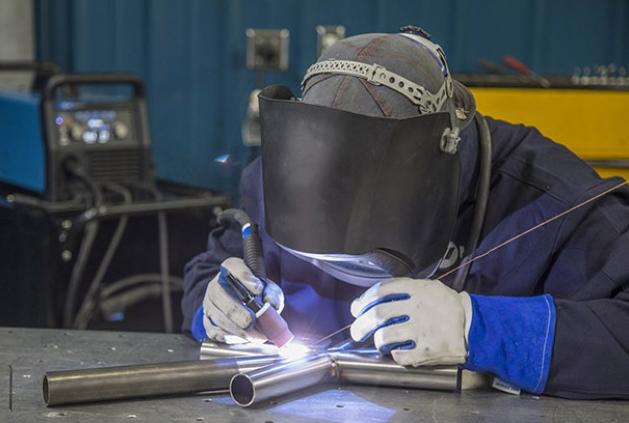

In TIG welding, the welder skillfully controls the heat with a foot pedal or thumb control. This process requires a steady hand to maintain a short arc length, which is critical for creating precise welds. TIG welding offers the advantage of working with a wide range of metals, including steel, stainless steel, aluminum, and even exotic metals like magnesium and copper alloys.

The welding area remains protected from atmospheric contamination through an inert shielding gas, typically argon or helium. This aspect of TIG welding ensures the production of strong and clean welds, free from oxidation and other defects that could compromise the structural integrity of the weld.

Which gas is not normally used in TIG welding

Importance of Gas Selection in TIG Welding

The choice of shielding gas in TIG welding significantly influences various aspects of the welding process. For instance, argon, a commonly used gas, facilitates easy arc starting, stable arc control, and a clean, uncontaminated weld pool. It also plays a crucial role in determining factors such as welding speed, penetration, and overall weld quality.

Selecting the right gas also impacts cost-efficiency. For example, while argon is a versatile choice, helium can be used for greater heat input and faster welding speeds on thicker materials, though at a higher cost. Welders often weigh these factors against their project requirements to optimize both performance and budget.

In summary, TIG welding offers unmatched precision and quality, with gas selection being a pivotal aspect of the process. The choice of gas not only affects the quality and appearance of the weld but also has implications for operational efficiency and cost-effectiveness.

Common Gases Used in TIG Welding

TIG welding relies on specific shielding gases to protect the weld area from atmospheric contamination and ensure the quality of the weld bead. Two of the most commonly used gases in TIG welding are argon and helium, each with its own unique characteristics and applications.

Argon and its Characteristics

Argon, a noble gas, is a prevalent choice for TIG welding due to its inert nature and excellent shielding properties. It operates effectively across a wide range of applications, offering several key advantages:

  • Purity: Argon gas used in TIG welding is typically of high purity, often exceeding 99.99%. This ensures minimal impurities that could affect the weld quality.
  • Stability: Argon provides a stable arc with minimal spattering, making it ideal for precise and controlled welding. The consistent arc stability allows for smooth and clean welds.
  • Penetration: While argon offers good penetration, it excels in producing shallow penetration welds. This is advantageous for thin materials where deep penetration could cause burn-through.
  • Cost: Argon is relatively cost-effective compared to some other shielding gases, making it a preferred choice for many welding applications.

Helium and its Application in TIG Welding

Helium is another gas used in TIG welding, although it differs significantly from argon in its characteristics and applications:

  • Heat Transfer: Helium has excellent heat-carrying capabilities, making it suitable for welding thicker materials. It produces a hotter arc compared to argon, which allows for faster welding speeds on heavy metals.
  • Cost Considerations: While helium is effective, it tends to be more expensive than argon. Therefore, welders often use it selectively, mainly for specific projects where its advantages are required.
  • Joint Configuration: Helium is often chosen for welding joints with thicker sections or when deep penetration is necessary. It can also be mixed with argon in various ratios to create a blend that balances cost and performance.
  • Compatibility: Helium is compatible with a range of metals, including aluminum, stainless steel, and copper alloys. Its versatility makes it valuable in diverse welding scenarios.

In summary, argon and helium are both essential gases in TIG welding, each with distinct characteristics and applications. Argon is favored for its stability and cost-effectiveness, while helium excels in heat transfer for welding thicker materials. Welders carefully consider the specific requirements of their projects when selecting the appropriate gas for TIG welding.



Gases Not Used in TIG Welding

TIG welding relies on specific shielding gases to ensure the integrity of the weld and the quality of the final product. There are several gases that are not suitable for TIG welding due to their inherent characteristics and incompatibility with the process.

Incompatible Gases for TIG Welding

Oxygen (O2):

  • Oxygen is a highly reactive gas that can lead to severe oxidation of the weld pool.
  • Even a small amount of oxygen in the shielding gas can result in porous and weak welds.
  • Welding with oxygen is avoided to maintain the desired metallurgical properties.

Acetylene (C2H2):

  • Acetylene is a highly combustible gas that poses significant safety risks when used in TIG welding.
  • It can create an unstable and unpredictable arc, making it unsuitable for precise welding.

Nitrogen (N2):

  • Nitrogen can cause contamination of the weld area, leading to porosity and reduced weld quality.
  • It interferes with the formation of a stable arc and is not conducive to TIG welding.

Reasons for Their Incompatibility

Oxidation: Oxygen, when present in the shielding gas, reacts with the hot metal and leads to oxidation. This results in the formation of oxides that weaken the weld and reduce its corrosion resistance.

Safety Concerns: Gases like acetylene are highly flammable and can lead to dangerous situations in welding. Safety is a paramount concern in TIG welding, and incompatible gases are avoided to prevent accidents.

Weld Quality: Incompatible gases can introduce impurities and contaminants into the weld pool, compromising its quality. Porosity, lack of fusion, and other defects may result from the use of these gases.

Arc Stability: TIG welding relies on a stable and controlled arc. Incompatible gases can disrupt the stability of the arc, making it challenging to achieve precise and clean welds.

In conclusion, TIG welding requires careful consideration of shielding gas selection to ensure the best possible weld quality and safety. Incompatible gases, such as oxygen, acetylene, and nitrogen, are avoided due to their detrimental effects on the welding process and the final weld.

Which gas is not normally used in TIG welding

Effects of Incorrect Gas Use in TIG Welding

The choice of shielding gas in TIG welding is critical, and using the wrong gas can have profound effects on both the quality of the weld and safety considerations.

Impact on Weld Quality

Porosity Formation:

  • Incorrect gases can introduce impurities into the weld pool, leading to the formation of porosity.
  • Porosity weakens the weld and reduces its resistance to corrosion, impacting its overall quality.

Lack of Fusion:

  • Incompatible gases can hinder proper fusion between the base metal and the filler material.
  • This lack of fusion results in weak joints and compromises the structural integrity of the weld.

Excessive Spatter:

  • Using the wrong gas can cause excessive spatter during welding.
  • Spatter not only affects the appearance of the weld but also increases the need for post-weld cleanup.

Inadequate Penetration:

  • Some gases may not provide the required heat input for deep penetration on thicker materials.
  • This can lead to incomplete welds and reduced joint strength.

Metallurgical Changes:

  • Incorrect gas selection can result in unwanted metallurgical changes in the weld and heat-affected zone.
  • These changes can affect the material properties and lead to brittleness or reduced toughness.

Safety Concerns

Fire Hazard:

  • Inappropriate gases, especially flammable ones, pose a significant fire hazard in the welding environment.
  • This can result in accidents, injuries, and damage to equipment.

Toxic Fumes:

  • Some gases produce toxic fumes when exposed to the high temperatures of welding.
  • Inhaling these fumes can be harmful to the welder’s health, necessitating proper ventilation and safety measures.

Arc Stability:

  • Using gases that disrupt the stability of the welding arc can lead to erratic and uncontrollable arcs.
  • This not only affects the quality of the weld but also poses safety risks.

Equipment Damage:

  • Incorrect gases may cause damage to welding equipment, such as torches and regulators.
  • Equipment failure can halt welding operations and incur repair costs.

In summary, the effects of using the wrong gas in TIG welding are far-reaching, impacting weld quality and safety. Porosity, lack of fusion, spatter, inadequate penetration, and metallurgical changes can compromise the weld’s quality. Safety concerns include fire hazards, toxic fumes, arc stability issues, and the potential for equipment damage, emphasizing the importance of proper gas selection in TIG welding.

Which gas is not normally used in TIG welding

Selection Criteria for TIG Welding Gases

Choosing the right shielding gas for TIG welding is crucial to achieve optimal results. Several factors influence the selection of the appropriate gas for a welding project, and understanding these criteria is essential.

Factors Influencing Gas Choice

  • Material Type:Different materials require specific gases. For example, argon is commonly used for stainless steel, while helium is preferred for aluminum welding.
  • Thickness of Material:Thicker materials often require gases that provide higher heat input, such as helium, to ensure proper penetration.
  • Welding Speed:The desired welding speed affects gas selection. Helium can allow for faster welding, while argon offers more precise control at lower speeds.
  • Cost Considerations:Cost is a significant factor. Helium is more expensive than argon, so budget constraints may influence the choice.
  • Joint Configuration:The type of joint and its geometry play a role. Some gases may be better suited for fillet welds, while others are ideal for butt joints.
  • Weld Appearance:The desired appearance of the weld, including cleanliness and spatter, is a consideration. Argon often produces cleaner welds with minimal spatter.

How to Determine the Right Gas for Your Welding Project

  • Material Compatibility:Start by identifying the material you will be welding. Consult welding charts or material specifications to determine the recommended shielding gas.
  • Thickness Assessment:Measure the thickness of the material to be welded. Thicker materials may require gases with higher heat input.
  • Welding Speed Goals:Consider your desired welding speed. If speed is critical, helium or a helium-argon mix may be suitable.
  • Budget Analysis:Evaluate your budget constraints. Ensure that the chosen gas aligns with the project’s cost limitations.
  • Joint Examination:Examine the joint configuration and geometry. Determine whether the chosen gas will provide adequate penetration and coverage.
  • Weld Quality and Appearance:Assess the desired weld quality and appearance. If cleanliness and minimal spatter are essential, argon may be the better choice.
  • Consultation:When in doubt, consult with experienced welders or welding engineers. They can provide valuable insights and recommendations based on their expertise.

In summary, the selection of the right shielding gas for TIG welding involves a careful consideration of material type, thickness, welding speed, budget, joint configuration, and desired weld appearance. By evaluating these factors and seeking expert advice when needed, welders can make informed decisions to achieve the best results in their welding projects.

Advanced Considerations in TIG Welding

TIG welding, known for its precision and versatility, has advanced over the years with innovative techniques and developments. Several advanced considerations are crucial for welders looking to push the boundaries of TIG welding.

Which gas is not normally used in TIG welding

Mixtures of Gases and Their Applications

Gas Mixtures for Enhanced Performance:

  • Welders often use gas mixtures to optimize the benefits of different gases.
  • Examples include helium-argon blends, which combine the high heat of helium with the stability of argon for improved welding on thick materials.

Custom Gas Blends:

  • Some welding applications require custom gas blends tailored to specific project needs.
  • These blends may involve precise combinations of argon, helium, and other gases to achieve desired results.

Twin Gas Systems:

  • In specialized scenarios, twin gas systems are employed, allowing for the simultaneous use of two different gases.
  • This approach offers versatility in controlling heat input and weld characteristics.

Gas Flow Control:

  • Precise control of gas flow rates is essential when working with gas mixtures.
  • Welders use flowmeters and regulators to maintain the correct gas ratios during welding.

Innovations and Future Trends in Welding Gases

  • Advancements in Gas Purity:Gas suppliers continue to improve the purity levels of welding gases, ensuring minimal impurities for cleaner welds.
  • Efficiency Improvements:Research is ongoing to develop gases that enhance welding efficiency, allowing for faster welding speeds and reduced costs.
  • Environmental Considerations:Future trends include the development of eco-friendly shielding gases that minimize environmental impact.
  • Smart Gas Delivery Systems:Innovations in gas delivery systems incorporate digital controls for precise gas management, improving weld consistency.
  • Alternative Shielding Methods:Some research explores alternative methods of shielding, such as using innovative fluxes or electromagnetic fields.
  • Cost-Effective Solutions:Future trends aim to provide cost-effective shielding gas solutions that meet the demands of various industries.

In summary, advanced considerations in TIG welding encompass the use of gas mixtures, custom blends, twin gas systems, and precise gas flow control. Additionally, ongoing innovations and future trends in welding gases focus on purity, efficiency, environmental sustainability, smart gas delivery, alternative shielding methods, and cost-effective solutions to meet the evolving needs of the welding industry.

Why is oxygen not commonly used in TIG welding?

Oxygen is avoided in TIG welding because it has oxidizing properties that can lead to poor weld quality and contamination.

What are the commonly used gases in TIG welding?

Common TIG welding gases include argon and helium, each offering distinct properties and applications.

What is the cost difference between using helium and argon in TIG welding?

Helium is typically more expensive than argon, with costs varying based on purity and location. Helium costs can be double or more compared to argon.

How do I choose the right gas for my TIG welding project?

Gas selection should consider material type, thickness, welding speed, cost, joint configuration, and desired weld appearance, among other factors.

What are the applications of gas mixtures in TIG welding?

Gas mixtures like helium-argon blends can enhance welding performance, increasing heat input and welding speed, among other benefits.

How is gas flow controlled in TIG welding?

Gas flow is controlled using flowmeters and regulators to ensure adequate gas coverage and protection of the welding area.

What are the future trends in welding gases?

Future trends include higher gas purity, improved efficiency, environmental considerations, digital gas control, alternative shielding methods, and cost-effective solutions.

Are there quality standards related to gas selection in TIG welding?

Yes, welding standards like AWS A5.32 specify quality requirements for gases used in TIG welding to ensure weld quality and reliability.
