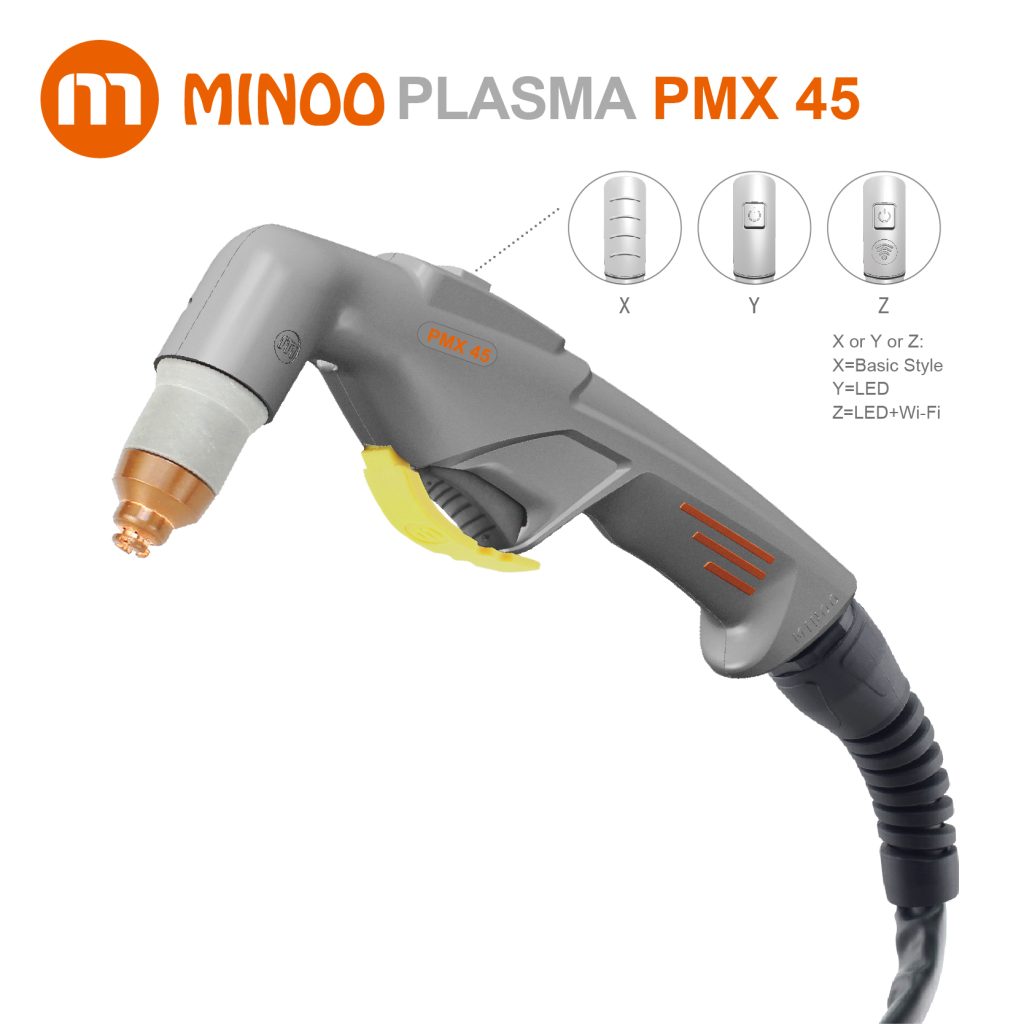

PMX45
Technical Parameter
45A WITH NHF
60% DUTY CYCLE
5.0 BAR
155-165L/min
40s POST FLOW
12mm(500mm/min)RECOMMENDED VALUE
Procurement code+Optional accessory( ? = X or Y or Z)
AVT03101+?
6M
1/4G Pneumatic-electric Integggrated/2Wires
AVT03102+?
6M
1/4G Gas electric Separation/2Wires
AVT03103+?
6M
Central Adapter/2Wires
AVT031030+?
6M
Central Adapter/4Wires
AVT03104+?
6M
Central Adapter/Coaxial
Consumables procurement code(with”🔴”is the standard configuration)
| Position | Code | Ref. | Description |
|---|---|---|---|
| 0 | AVG0989X | ||
| AVG0989Y | Torch head kit | ||
| AVG0989Z | |||
| 1 | MSM0674 | CV0129 | |
| 🔴2 | MSM0629 | CV0174 | 🔴3 | MVS0692 | PC0147 |
| 4 | MVU0657-09 | PD0152-09 | Φ0.9mm 45A |
| 🔴5 | MVU0659-09 | PD0154-09 | Φ0.9mm 45A |
| 🔴6 | MVF3000 | PE8000 | |
| 🔴7 | MVB3045 | PR8095 | |
| 8 | MVZ0693 | PF0148 | |
| 🔴9.1 | MHQ0433 | Refer toY、Z | |
| 9.2 | MHQ0433-1 | Refer to X | |
| 10.1 | AGV1001X | ||
| 🔴10.2 | AGV1001Y | Handle | |
| 10.3 | AGV1001Z | ||
