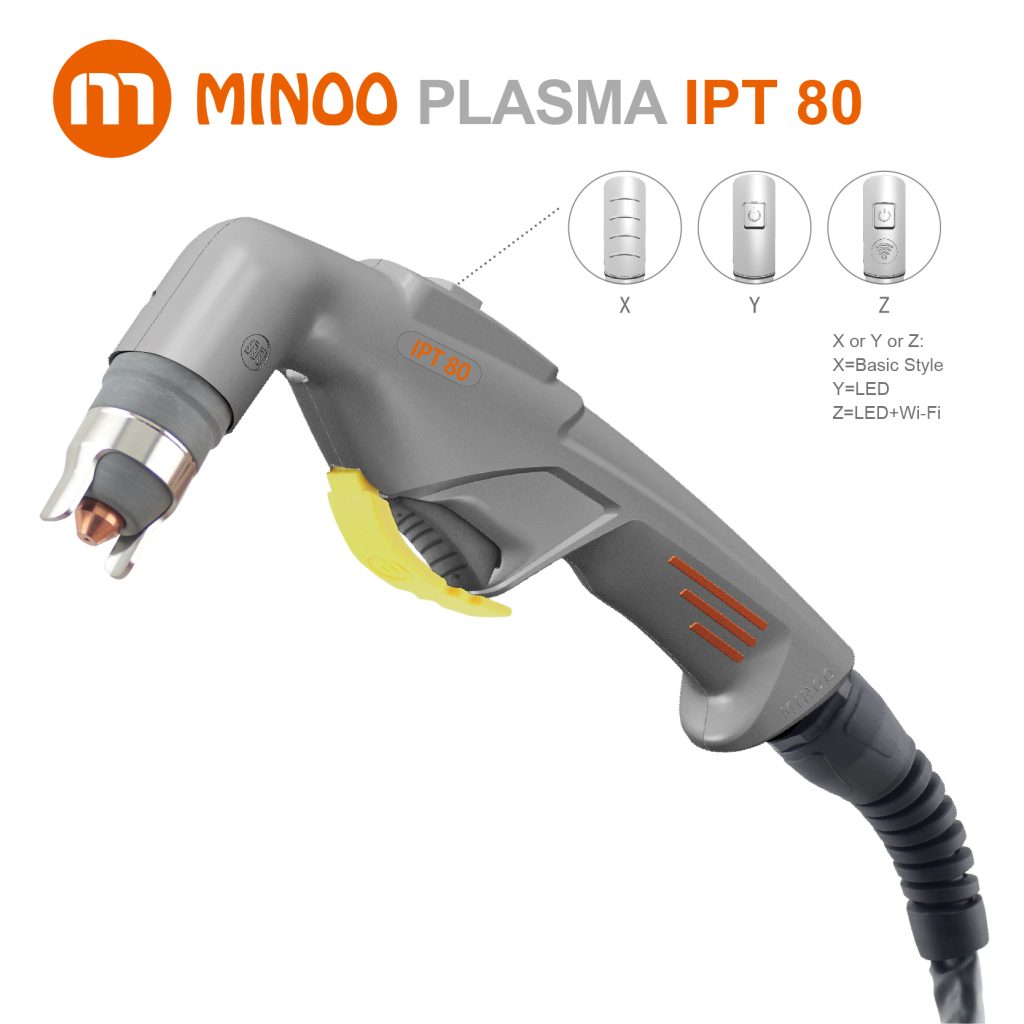

IPT 80
Technical Parameter
80A WITH NHF
60% DUTY CYCLE
4.5-5.0 BAR
150-160L/min
80s POST FLOW
20mm(500mm/min)RECOMMENDED VALUE
Procurement code+Optional accessory( ? = X or Y or Z)
AVT0906+?
6M
1/4G Pneumatic-electric Integggrated/2Wires/back striking
AVT0907+?
12M
1/4G Pneumatic-electric Integggrated/2Wires/back striking
AVT0908+?
6M
1/4G Gas electric Separation/2Wires/back striking
AVT0909+?
12M
1/4G Gas electric Separation/2Wires/back striking
AVT0904+?
6M
Central Adapter/2Wires/back striking
AVT0905+?
12M
Central Adapter/2Wires/back striking
AVT00904+?
6M
Central Adapter/4Wires/back striking
AVT00905+?
12M
Central Adapter/4Wires/back striking
AVT0904-00+?
6M
Central Adapter/Coaxial
AVT0905-00+?
12M
Central Adapter/Coaxial

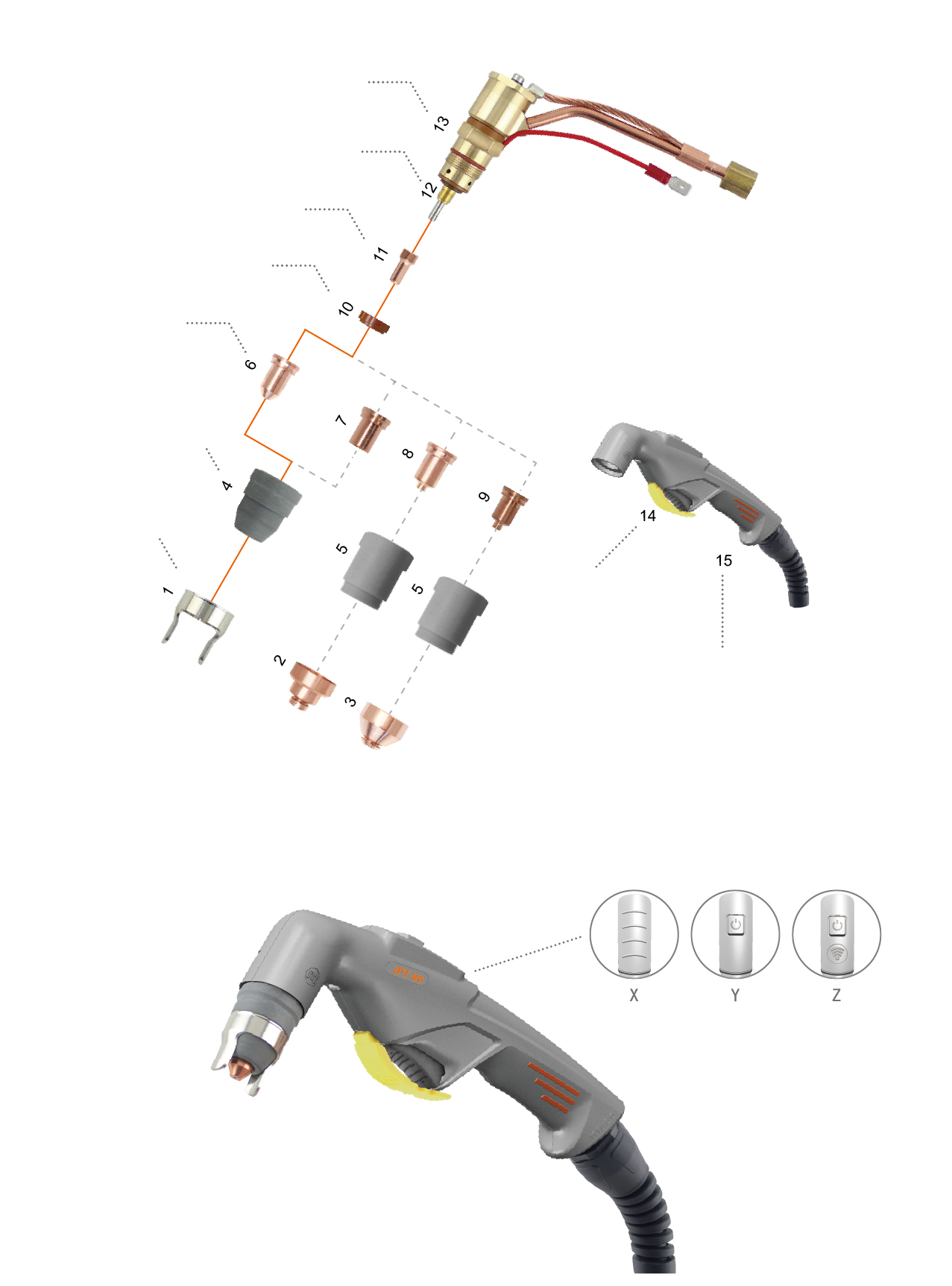

Consumables procurement code(with”🔴”is the standard configuration)
| Position | Code | Ref. | Description |
|---|---|---|---|
| 0 | AVG1994X | ||
| AVG1994Y | Torch head kit | ||
| AVG1994Z | |||
| 🔴1 | MSM0098 | 60434 | |
| 2 | MSM0700 | 60504 | |
| 3 | MSM1064 | 60508 | |
| 🔴4 | MVS1667-05 | 60510 | Glass fiber |
| 5 | MVS1672-05 | 60511 | |
| 6.1 | MVU1670-10 | 51311.10 | Φ1.0mm 50A |
| 6.2 | MVU1670-11 | 51311.11 | Φ1.1mm 60A |
| 6.3 | MVU1670-12 | 51311.12 | Φ1.2mm 70A |
| 🔴6.4 | MVU1670-13 | 51311.13 | Φ1.3mm 80A |
| 7 | MVU1671-09 | 51310.09 | Φ0.9mm 40A |
| 8.1 | MVU1679-10 | 51311S.10 | Φ1.0mm 50A |
| 8.2 | MVU1679-11 | 51311S.11 | Φ1.1mm 60A |
| 8.3 | MVU1679-12 | 51311S.12 | Φ1.2mm 70A |
| 8.4 | MVU1679-13 | 51311S.13 | Φ1.3mm 80A |
| 9 | MVU1675-16 | 513110.16 | Φ1.6mm 80A |
| 🔴10 | MVF1665 | 60027 | |
| 🔴11 | MVB1669 | 52558 | |
| 🔴12 | MZN0773 | 09800.42 | |
| 🔴13 | MVZ0043 | PF0098 | |
| 🔴14.1 | MHQ0433 | Refer toY、Z | |
| 14.2 | MHQ0433-1 | Refer to X | |
| 15.1 | AGV1001X | ||
| 🔴15.2 | AGV1001Y | Handle | |
| 15.3 | AGV1001Z | ||
