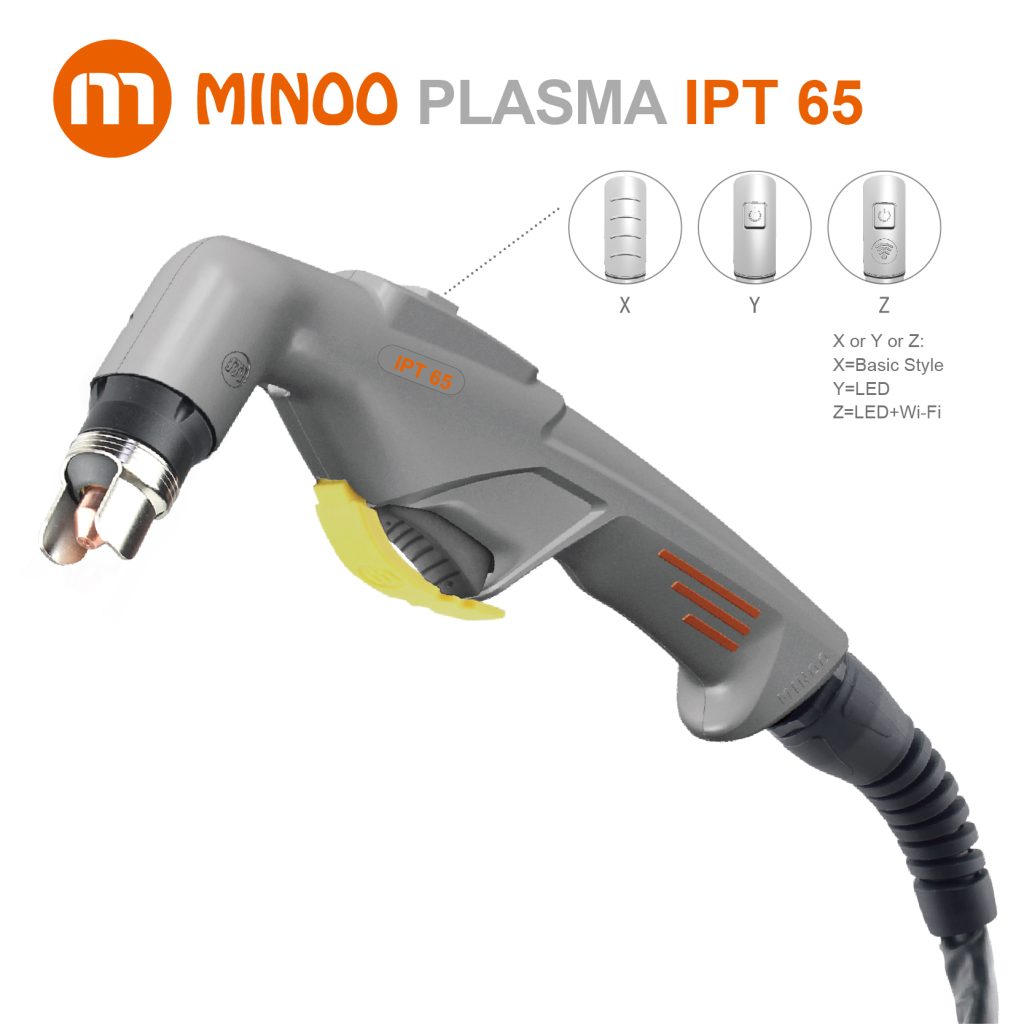

IPT65 non screw
Technical Parameter
65A WITH NHF
60% DUTY CYCLE
4.4-5.0 BAR
140-150L/min
60s POST FLOW
18mm(500mm/min)RECOMMENDED VALUE
Procurement code+Optional accessory( ? = X or Y or Z)
AVT03171+?
6M
1/4G Pneumatic-electric Integggrated/2Wires
AVT03172+?
6M
1/4G Gas electric Separation/2Wires
AVT03173+?
6M
Central Adapter/2Wires
AVT031730+?
6M
Central Adapter/4Wires
AVT03174+?
6M
Central Adapter/Coaxial

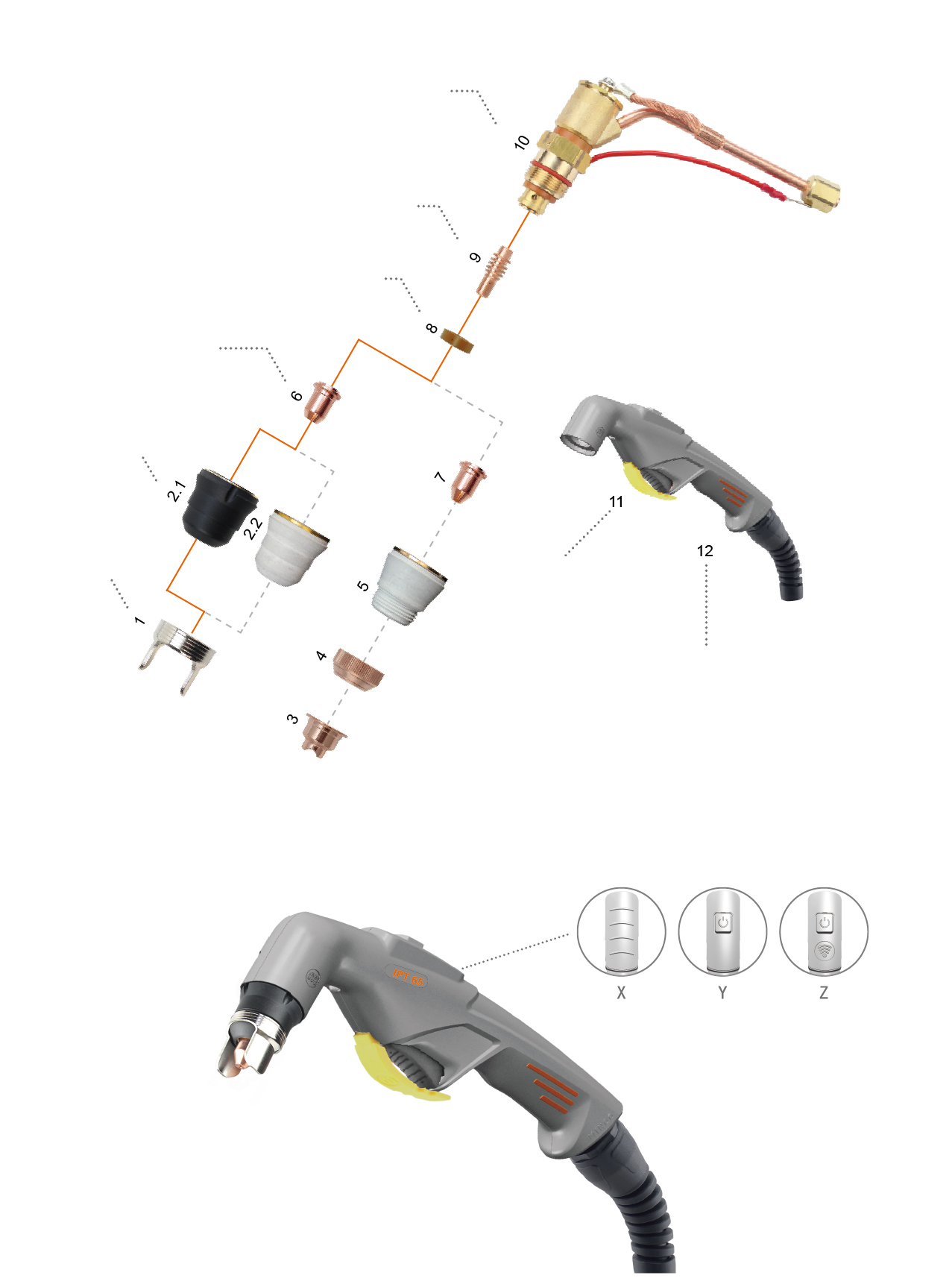

Consumables procurement code(with”🔴”is the standard configuration)
| Position | Code | Ref. | Description |
|---|---|---|---|
| 0 | AVG0996X | ||
| AVG0996Y | Torch head kit | ||
| AVG0996Z | |||
| 🔴1 | MSM0098-04 | 60432 | |
| 🔴2.1 | MVS0661-03 | 60389 | |
| 2.2 | MVS1661-05 | Glass fiber | |
| 3 | MSM0620 | CV0170 | |
| 4 | MSM0658 | CV0153 | |
| 5 | MVS0632-05 | PC0187-05 | Glass fiber |
| 🔴6 | MVU0792--11-00 | PD0247-11-00 | Φ1.1mm 65A |
| 🔴7.1 | MVU0792--09 | PD0247-09 | Φ0.9mm 40A |
| 🔴7.2 | MVU0792--11 | PD0247-11 | Φ1.1mm 60A |
| 8 | MVF1601 | 60028 | |
| 🔴9 | MVB1048-06 | PR6093-06 | |
| 10 | MVZ0041-03 | PF0096-03 | |
| 🔴11.1 | MHQ0433 | Refer toY、Z | |
| 11.2 | MHQ0433-1 | Refer to X | |
| 12.1 | AGV1001X | ||
| 🔴12.2 | AGV1001Y | Handle | |
| 12.3 | AGV1001Z | ||
