PMX105
Technical Parameter
105A WITH NHF
60% DUTY CYCLE
5.0-5.5 BAR
250-260L/min
100s POST FLOW
25mm(500mm/min)RECOMMENDED VALUE

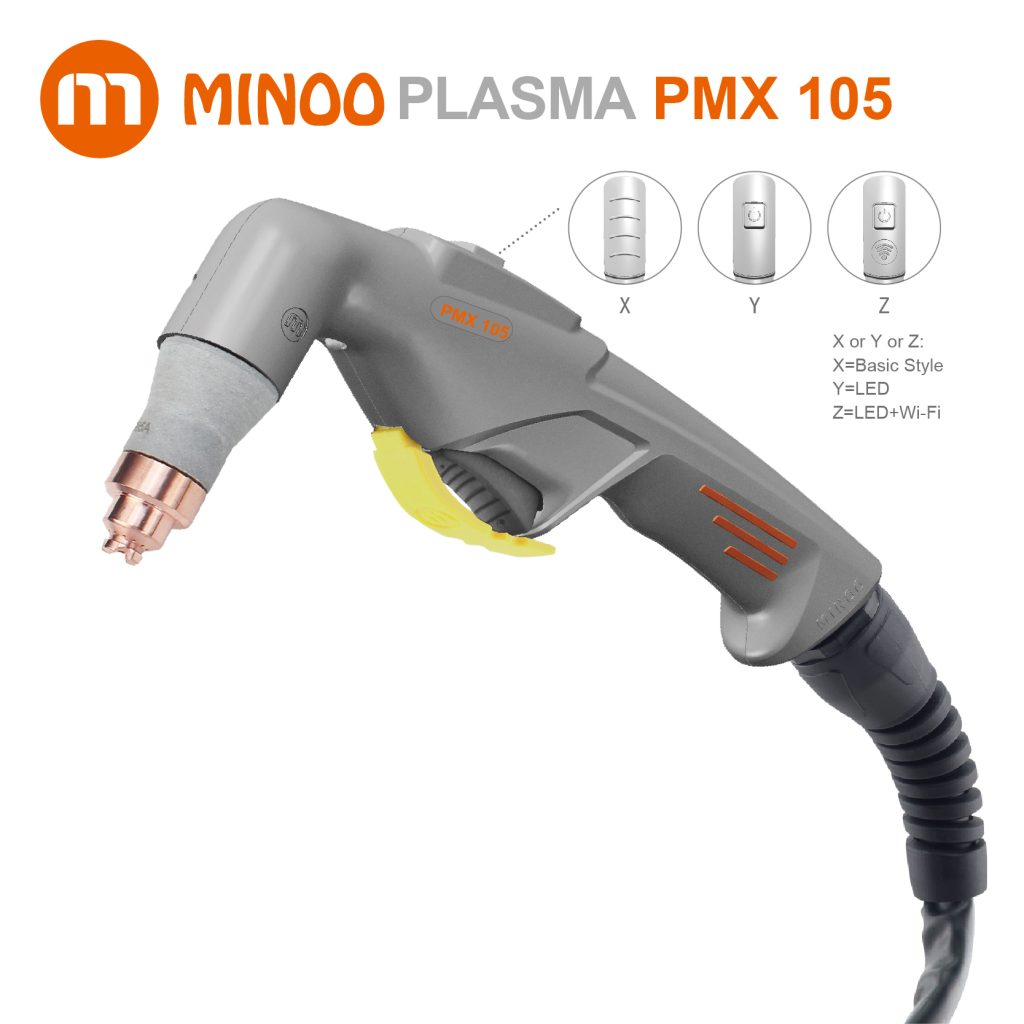

Procurement code+Optional accessory( ? = X or Y or Z)
AVT03241+?
6M
1/4G Pneumatic-electric Integggrated/2Wires
AVT03242+?
6M
1/4G Gas electric Separation/2Wires
AVT03243+?
6M
Central Adapter/2Wires
AVT032430+?
6M
Central Adapter/4Wires
AVT03244+?
6M
Central Adapter/Coaxial

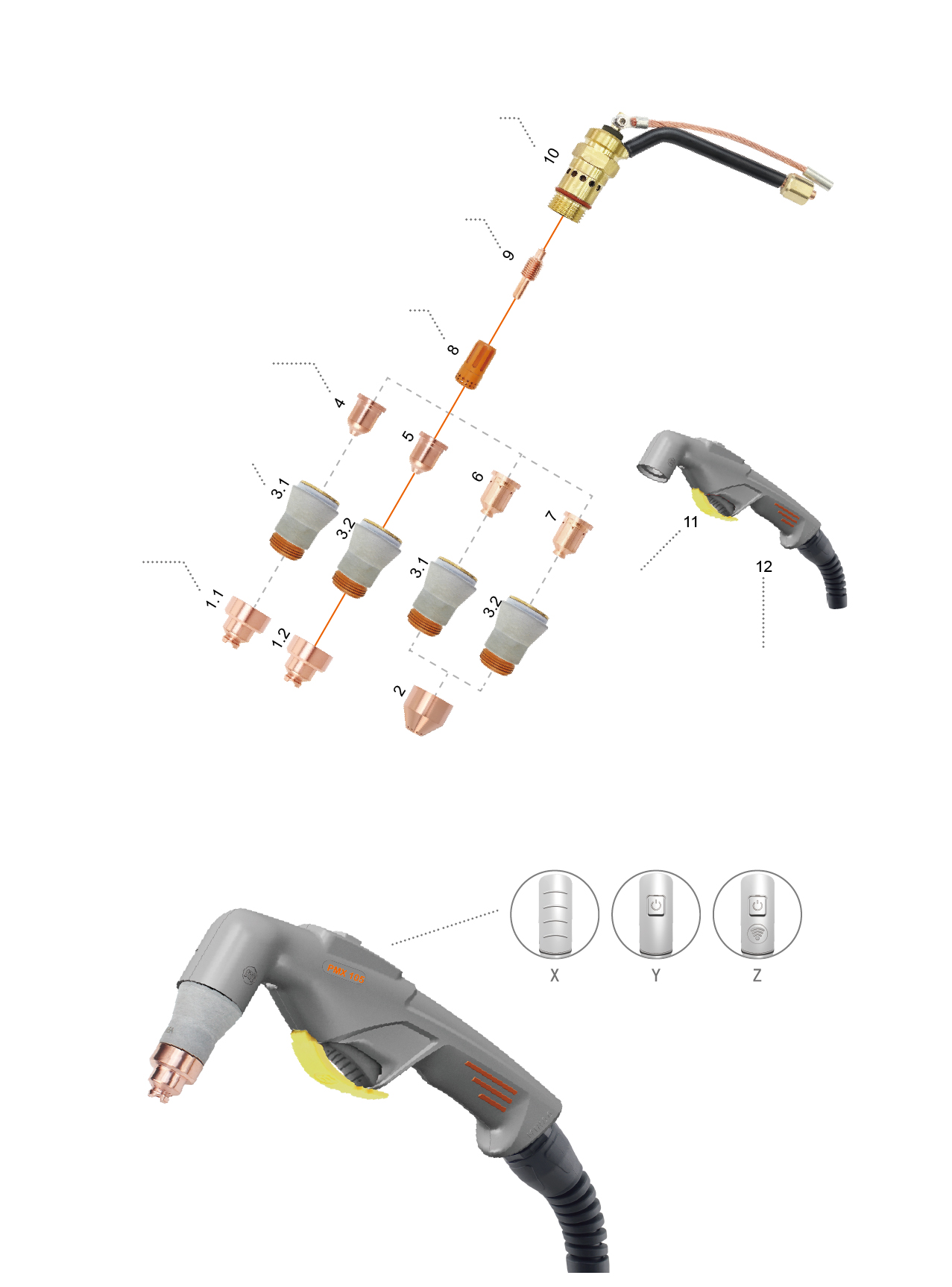

Consumables procurement code(with”🔴”is the standard configuration)
| Position | Code | Ref. | Description |
|---|---|---|---|
| 0 | AVG0993X | ||
| AVG0993Y | Torch head kit | ||
| AVG0993Z | |||
| 1.1 | MSM0623 | CV0178 | 45-85A | 1
| 🔴1.2 | MSM0621 | CV0176 | 105A | 2 | MSM0711 | CV0261 | Gouging 45-105A | 3.1 | MVS0693 | PC0148 | 45-85A |
| 🔴3.2 | MVS0694 | PC0149 | 105A |
| 4.1 | MVU0653-09 | PD0158-09 | Φ0.9mm 45A |
| 4.2 | MVU0653-11 | PD0158-11 | Φ1.1mm 65A |
| 4.3 | MVU0653-13 | PD0158-13 | Φ1.3mm 85A |
| 5 | MVU0653-15 | PD0158-15 | Φ1.5mm 105A |
| 🔴6 | MVU0632-13 | PD0186-13 | Gouging Φ1.3mm 45-85A |
| 🔴7 | MVU0632-15 | PD0186-15 | Gouging Φ1.3mm 105A |
| 8 | MVF3003 | PE8008 | |
| 🔴9 | MVB0032 | PR0087 | |
| 10 | MVZ0694 | PF0149 | |
| 🔴11.1 | MHQ0433 | Refer toY、Z | |
| 11.2 | MHQ0433-1 | Refer to X | |
| 12.1 | AGV1002X | ||
| 🔴12.2 | AGV1002Y | Handle | |
| 12.3 | AGV1002Z | ||
