PMX- M65
Technical Parameter
65A WITH NHF
60% DUTY CYCLE
5.0 BAR
175-185L/min
60s POST FLOW
16mm(500mm/min)RECOMMENDED VALUE
Procurement code
MVT13111
6M
1/4G Pneumatic-electric Integggrated
MVT13113
6M
Central Adapter/EPDM tube
MVT13114
6M
Central Adapter/Coaxial

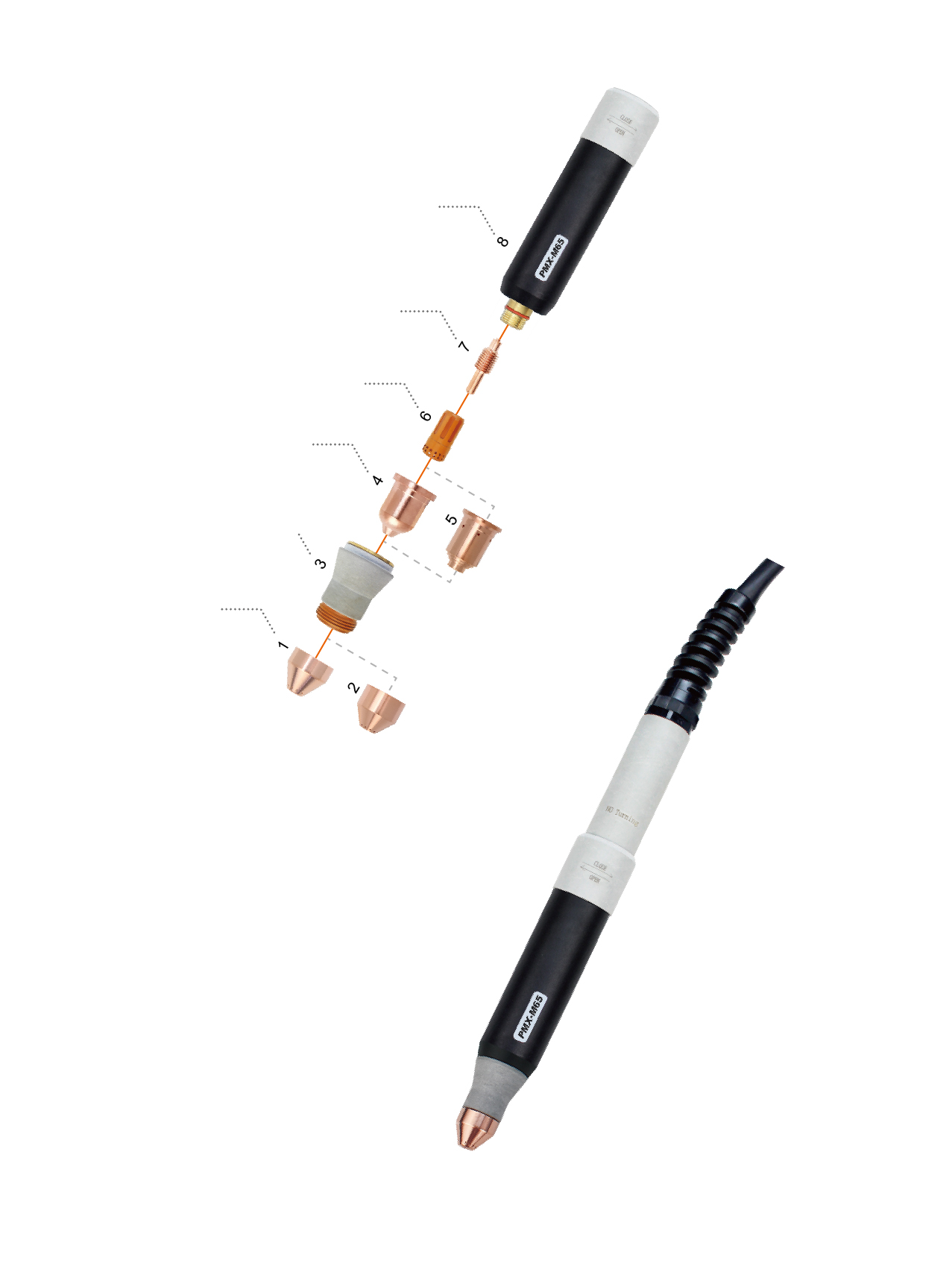

Consumables procurement code(with”🔴”is the standard configuration)
| Position | Code | Ref. | Description |
|---|---|---|---|
| 0 | MVG0692 | Torch head kit | |
| MVG0692-01 | EPDM Torch head kit | ||
| 🔴1 | MSM0624 | CV0179 | |
| 2 | MSM0711 | CV0261 | Gouging |
| 🔴3 | MVS0693 | PC0148 | 4.1 | MVU0653-09 | PD0158-09 | Φ0.9mm 45A |
| 4.2 | MVU0653-11 | PD0158-11 | Φ1.1mm 65A |
| 5 | MVU0632-13 | PD0186-13 | Gouging |
| 🔴6 | MVF3001 | PE8006 | |
| 🔴7 | MVB0032 | ||
| 🔴8 | MVZ0651 | ||
