PMX-M105
Technical Parameter
105A WITH NHF
60% DUTY CYCLE
5.0-5.5 BAR
255L/min
120s POST FLOW
16mm(500mm/min)RECOMMENDED VALUE
Procurement code
MVT13241
6M
1/4G Pneumatic-electric Integggrated
MVT13243
6M
Central Adapter/EPDM tube
MVT13244
6M
Central Adapter/Coaxial

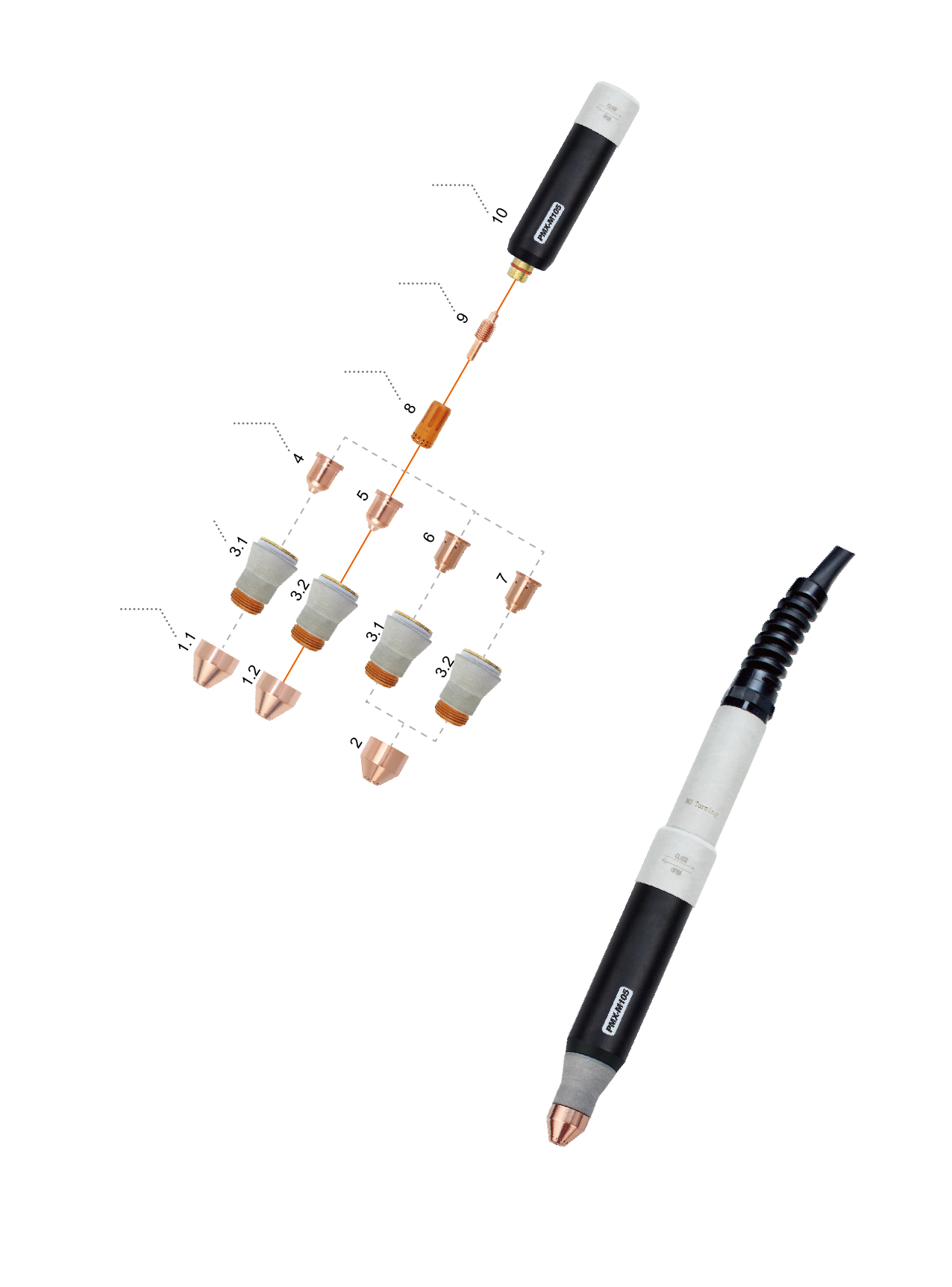

Consumables procurement code(with”🔴”is the standard configuration)
| Position | Code | Ref. | Description |
|---|---|---|---|
| 0 | MVG0694 | Torch head kit | |
| MVG0694-01 | EPDM Torch head kit | ||
| 1.1 | MSM0624 | CV0179 | 45-85A |
| 🔴1.2 | MSM0622 | CV0177 | 105A |
| 2 | MSM0711 | CV0261 | Gouging 45-105A |
| 3.1 | MVS0693 | PC0148 | 45-85A | 🔴3.2 | MVS0694 | PC0149 | 105A | 4.1 | MVU0653-09 | PD0158-09 | Φ0.9mm 45A |
| 4.2 | MVU0653-11 | PD0158-11 | Φ1.1mm 65A |
| 4.3 | MVU0653-13 | PD0158-13 | Φ1.3mm 85A |
| 5 | MVU0653-15 | PD0158-15 | Φ1.5mm 105A |
| 6 | MVU0632-13 | PD0186-13 | Gouging Φ1.3mm 45-85A |
| 7 | MVU0632-15 | PD0186-15 | Gouging Φ1.3mm 105A |
| 🔴8 | MVF3003 | ||
| 🔴9 | MVB0032 | ||
| 🔴10 | MVZ0694 | ||
