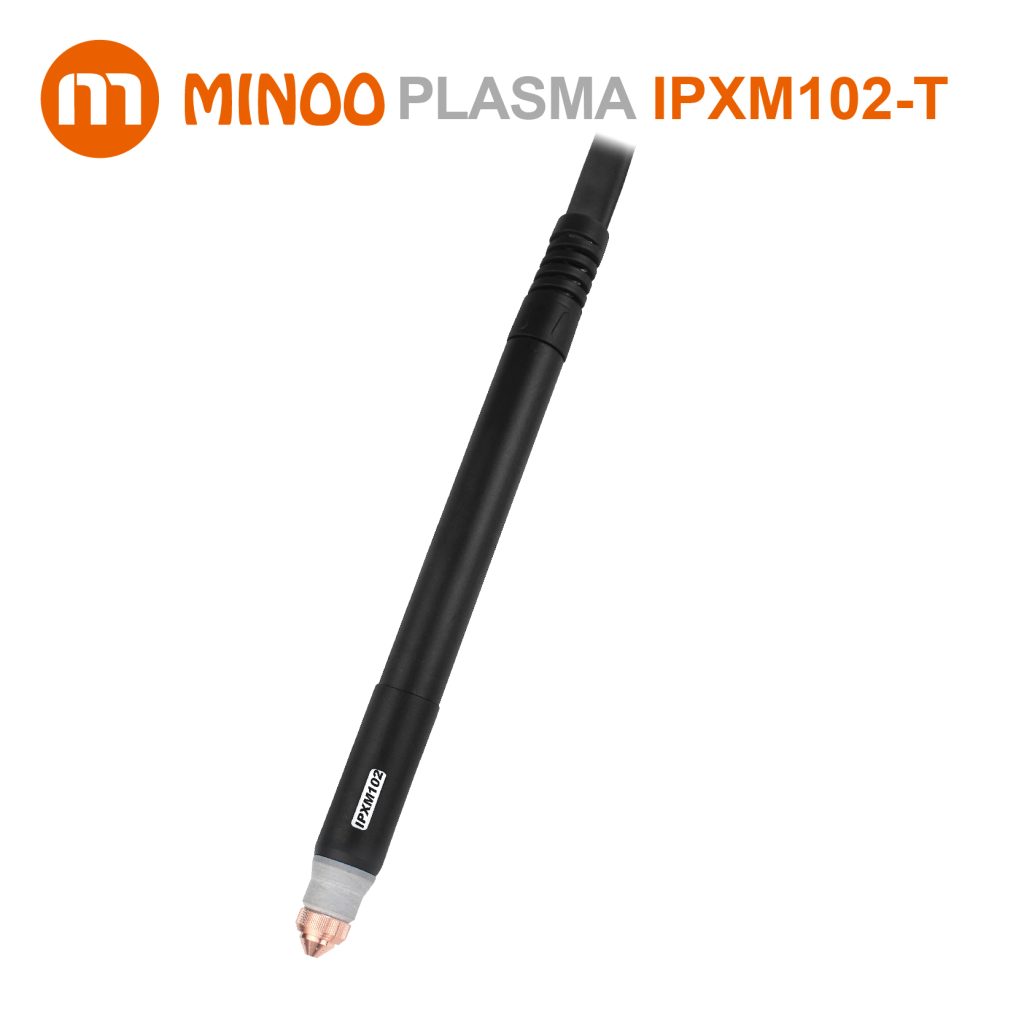

IPXM102-T
Technical Parameter
120A WITH NHF
60% DUTY CYCLE
5.0 BAR
200L/min
100s POST FLOW
30mm(500mm/min)RECOMMENDED VALUE
Procurement code
MVT33091
6M
1/4G Pneumatic-electric Integggrated/back striking
MVT33092
6M
1/4G Gas electric Separation/back striking
MVT33093
6M
Central Adapter/back striking
MVT33094
6M
Central Adapter/Coaxial
Consumables procurement code(with”🔴”is the standard configuration)
| Position | Code | Ref. | Description |
|---|---|---|---|
| 0 | MVG0656 | Torch head kit | |
| 1 | MSM0653 | CV0158 | 40-80A |
| 🔴2 | MSM0654 | CV0159 | 100-120A |
| 3 | MSM0766 | CV0211 | |
| 4.1 | MSM0655 | CV0155 | |
| 4.2 | MSM0655-01 | CV0155-1 | |
| 5 | MVS0634-05 | PC0189-05 | Glass fiber 40-80A | 🔴6 | MVS0631-05 | PC0186-05 | Glass fiber 100-120A | 7.1 | MVU0754-10 | PD0259-10 | Φ1.0mm 40A |
| 7.2 | MVU0754-11 | PD0259-11 | Φ1.1mm 50A |
| 7.3 | MVU0754-12 | PD0259-12 | Φ1.2mm 0A |
| 7.4 | MVU0754-14 | PD0259-14 | Φ1.4mm 80A |
| 🔴8.1 | MVU0791-16 | PD0246-16 | Φ1.6mm 100A |
| 8.2 | MVU0791-18 | PD0246-18 | Φ1.8mm 120A |
| 9 | MVU0757 | PD0252 | 40-120A Gouging |
| 10.1 | MVU0755-10 | PD0255-10 | Φ1.0mm 40A |
| 10.2 | MVU0755-11 | PD0255-11 | Φ1.1mm 50A |
| 10.3 | MVU0755-12 | PD0255-12 | Φ1.2mm 60A |
| 10.4 | MVU0755-14 | PD0255-14 | Φ1.4mm 80A |
| 11 | MVU0759-16 | PD0254-14 | Φ1.6mm 100A |
| 12 | MVF0053 | PE0058 | |
| 🔴13 | MVF0051 | PE0056 | |
| 🔴14 | MVB0631 | PR0186 | |
| 15 | MVB0637 | PR0187 | |
| 🔴16.1 | MZN0707 | FH0202 | |
| 16.2 | MZN0644 | FH0199 | |
| 17 | MVZ0723 | ||
