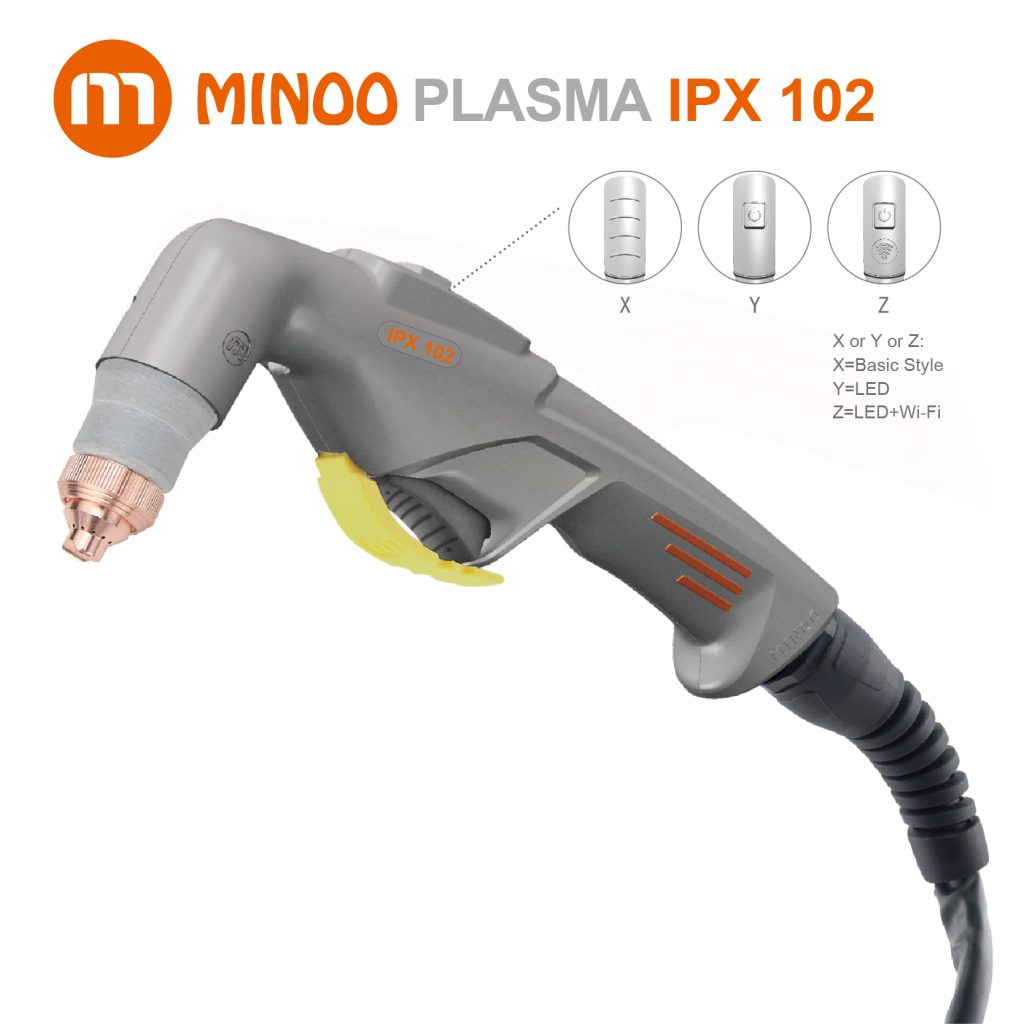

IPX102
Technical Parameter
120A WITH NHF
60% DUTY CYCLE
5.0 BAR
200L/min
100s POST FLOW
30mm(500mm/min)RECOMMENDED VALUE
Procurement code+Optional accessory( ? = X or Y or Z)
AVT2906+?
6M
1/4G Pneumatic-electric Integggrated/2Wires
AVT2907+?
12M
1/4G Pneumatic-electric Integggrated/2Wires
AVT2908+?
6M
1/4G Gas electric Separation/2Wires
AVT2909+?
12M
1/4G Gas electric Separation/2Wires
AVT2904+?
6M
Central Adapter/2Wires
AVT2905+?
12M
Central Adapter/2Wires
AVT20904+?
6M
Central Adapter/4Wires
AVT20905+?
12M
Central Adapter/4Wires
AVT2904-00+?
6M
Central Adapter/Coaxial
AVT2905-00+?
12M
Central Adapter/Coaxial

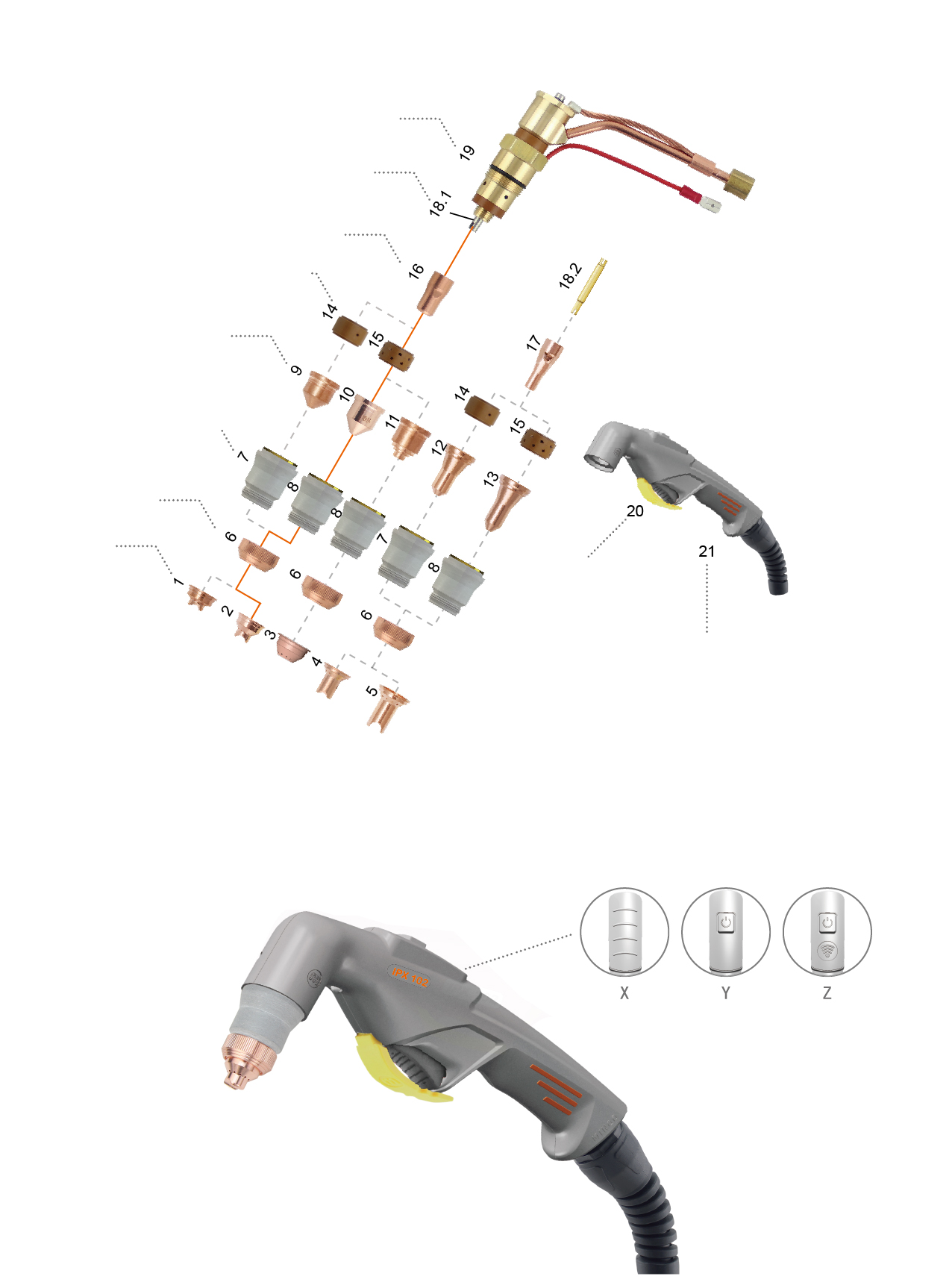

Consumables procurement code(with”🔴”is the standard configuration)
| Position | Code | Ref. | Description |
|---|---|---|---|
| 0 | AVG1998X | ||
| AVG1998Y | Torch head kit | ||
| AVG1998Z | |||
| 1 | MSM6664 | CV1119 | 40-80A |
| 🔴2 | MSM6665 | CV1115 | 100-120A |
| 3 | MSM0766 | CV0211 | |
| 4 | MSM0767 | CV0212 | 40-80A |
| 5 | MSM0768 | CV0213 | 100A |
| 🔴6 | MSM0655 | CV0155 | |
| 7 | MVS0634-05 | PC0189-05 | Glass fiber 40-80A |
| 🔴8 | MVS0631-05 | PC0186-05 | Glass fiber 100-120A |
| 9.1 | MVU0754-10 | PD0259-10 | Φ1.0mm 40A |
| 9.2 | MVU0754-11 | PD0259-11 | Φ1.1mm 50A |
| 9.3 | MVU0754-12 | PD0259-12 | Φ1.2mm 60A |
| 9.4 | MVU0754-14 | PD0259-14 | Φ1.4mm 80A |
| 🔴10.1 | MVU0791-16 | PD0246-16 | Φ1.6mm 100-120A |
| 10.2 | MVU0791-18 | PD0246-18 | Φ1.8mm 120A |
| 11 | MVU0757 | PD0252 | 40-120A |
| 12.1 | MVU0755-10 | PD0255-10 | Φ1.0mm 50A |
| 12.2 | MVU0755-11 | PD0255-1 | Φ1.1mm 60A |
| 12.3 | MVU0755-12 | PD0255-12 | Φ1.2mm 0A |
| 12.4 | MVU0755-14 | PD0255-14 | Φ1.4mm 90A |
| 13 | MVU0759-16 | PD0255-16 | Φ1.6mm 100A |
| 14 | MVF0053 | PE0058 | |
| 🔴15 | MVF0051 | PE0056 | |
| 🔴16 | MVB0631 | PR0186 | |
| 17 | MVB0637 | PR0187 | |
| 🔴18.1 | MZN0707 | FH0202 | |
| 18.2 | MZN0644 | FH0199 | |
| 19 | MVZ0044 | PF0099 | |
| 🔴20.1 | MHQ0433 | Refer toY、Z | |
| 20.2 | MHQ0433-1 | Refer to X | |
| 21.1 | AGV1001X | ||
| 🔴21.2 | AGV1001Y | Handle | |
| 21.3 | AGV1001Z | ||
