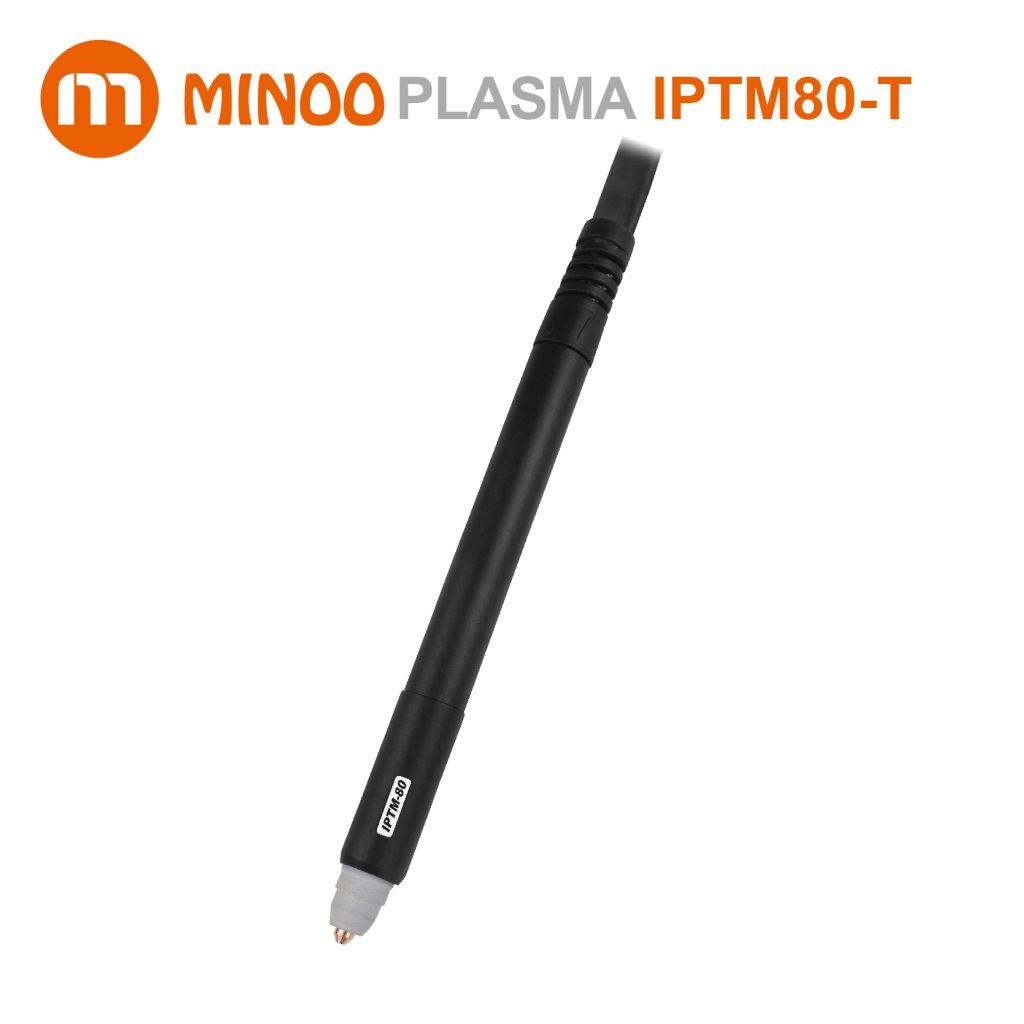

IPTM80-T
Technical Parameter

80A WITH NHF

60% DUTY CYCLE

4.5-5.0 BAR

150-160L/min

80s POST FLOW

20mm(500mm/min)RECOMMENDED VALUE
Procurement code
MVT33051-00
6M
1/4G Pneumatic-electric Integggrated/back striking
MVT33052-00
6M
1/4G Gas electric Separation/back striking
MVT33053-00
6M
Central Adapter/back striking
MVT33054-00
6M
Central Adapter/Coaxial
Consumables procurement code(with”🔴”is the standard configuration)
Position | Code | Ref. | Description |
---|---|---|---|
0 | MVG0618 | Torch head kit | |
1 | MSM1064 | 60508 | Gouging |
🔴2 | MVS1667-05 | 60510 | Glass fiber | 3 | MVS1672-05 | 60511 | Contact | 4.1 | MVU1670-10 | 51311.10 | Φ1.0mm 50A |
4.2 | MVU1670-11 | 51311.11 | Φ1.1mm 60A |
4.3 | MVU1670-12 | 51311.12 | Φ1.2mm 70A |
🔴4.4 | MVU1670-13 | 51311.13 | Φ1.3mm 80A |
5 | MVU1675-16 | 51311G.16 | Gouging Φ1.6mm 80A |
🔴6 | MVF1665 | 60027 | |
🔴7 | MVB1669 | 52558 | |
🔴8 | MZN0773 | FH0228 | |
9 | MVZ0721 | ||
