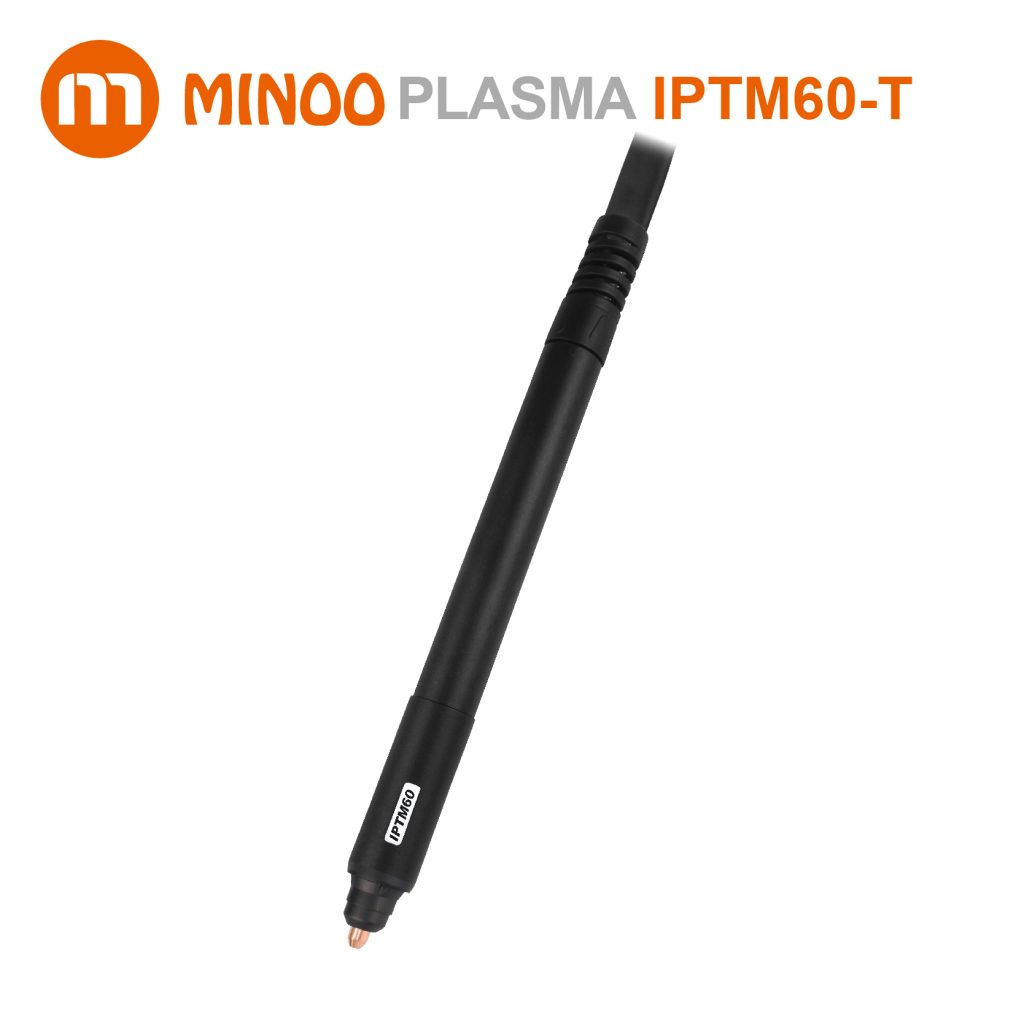

IPTM60-T
Technical Parameter
60A WITH NHF
60% DUTY CYCLE
4.5-5.0 BAR
120-130L/min
60s POST FLOW
16mm(500mm/min)RECOMMENDED VALUE
Procurement code
MVT33041-00
6M
1/4G Pneumatic-electric Integggrated/back striking
MVT33042-00
6M
1/4G Gas electric Separation/back striking
MVT33043-00
6M
Central Adapter/back striking
MVT33044-00
6M
Central Adapter/Coaxial

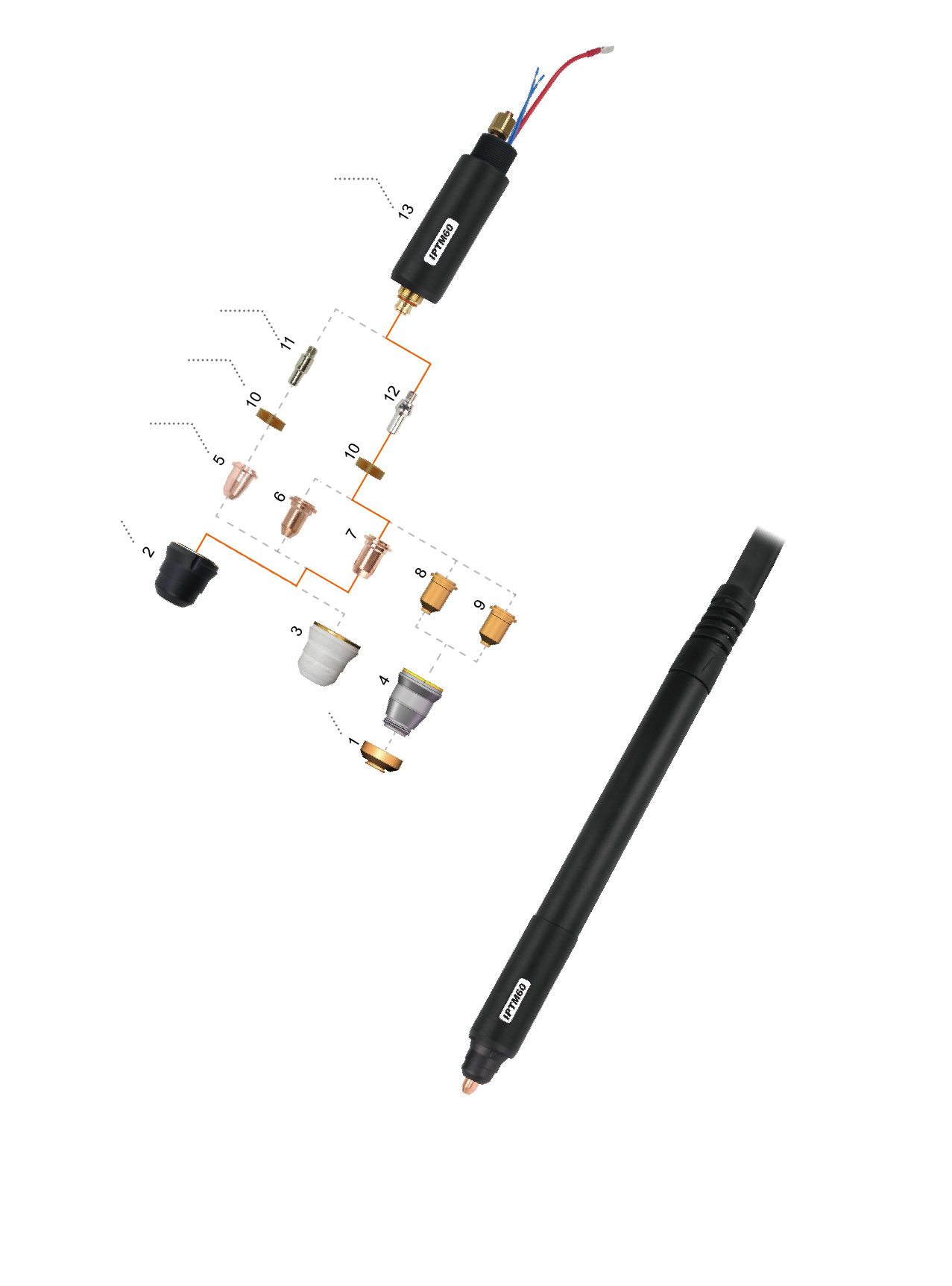

Consumables procurement code(with”🔴”is the standard configuration)
| Position | Code | Ref. | Description |
|---|---|---|---|
| 0 | MVG0617 | Torch head kit | |
| 1 | MSM0765 | 60487 | |
| 🔴2 | MVS0661-03 | 60389 | Bakelite | 3 | MVS1661-05 | Glass fiber | 4 | MVS1689-05 | 60389C | Glass fiber |
| 5.1 | MVU0661-06 | PD0116-06 | Φ0.6mm 20A |
| 5.2 | MVU0661-08 | PD0116-08 | Φ0.8mm 30A |
| 5.3 | MVU0661-09 | PD0116-09 | Φ0.9mm 40A |
| 6.1 | MVU1660-06 | 51318.06 | Φ0.6mm 20A |
| 6.2 | MVU1660-08 | 51318.08 | Φ0.8mm 30A |
| 6.3 | MVU1660-09 | 51318.09 | Φ0.9mm 40A |
| 6.4 | MVU1660-10 | PD6110-10 | Φ1.0mm 50A |
| 7.1 | MVU1668-10 | 51313P.10 | Φ1.0mm 50A |
| 🔴7.2 | MVU1668-11 | 51313P.11 | Φ1.1mm 60A |
| 8.1 | MVU1658-09 | 513180.09 | 40A |
| 8.2 | MVU1658-10 | 513180.10 | 50A |
| 8.3 | MVU1658-11 | 513180.11 | 60A |
| 9.1 | MVU0753-16 | PD0258-16 | Gouging 40A |
| 9.2 | MVU0753-18 | Gouging 60A | |
| 🔴10 | MVF1601 | 60028 | |
| 11 | MVB0660 | PR0110 | |
| 🔴12 | MVB1048 | 52582 | |
| 13 | MVZ0720 | ||
