IPT 40
Technical Parameter
40A WITH NHF
60% DUTY CYCLE
4.5-5.0 BAR
120-130L/min
40s POST FLOW
10mm(500mm/min)RECOMMENDED VALUE
Procurement code+Optional accessory( ? = X or Y or Z)
AVT0850+?
6M
2Wires
AVT0852+?
6M
4Wires
AVT0856+?
6M
1/4G Pneumatic-electric Integggrated/2Wires
AVT0858+?
6M
1/4G Gas electric Separation/2Wires
AVT0854+?
6M
Central Adapter/2Wires
AVT00854+?
6M
Central Adapter/4Wires
Consumables procurement code(with”🔴”is the standard configuration)

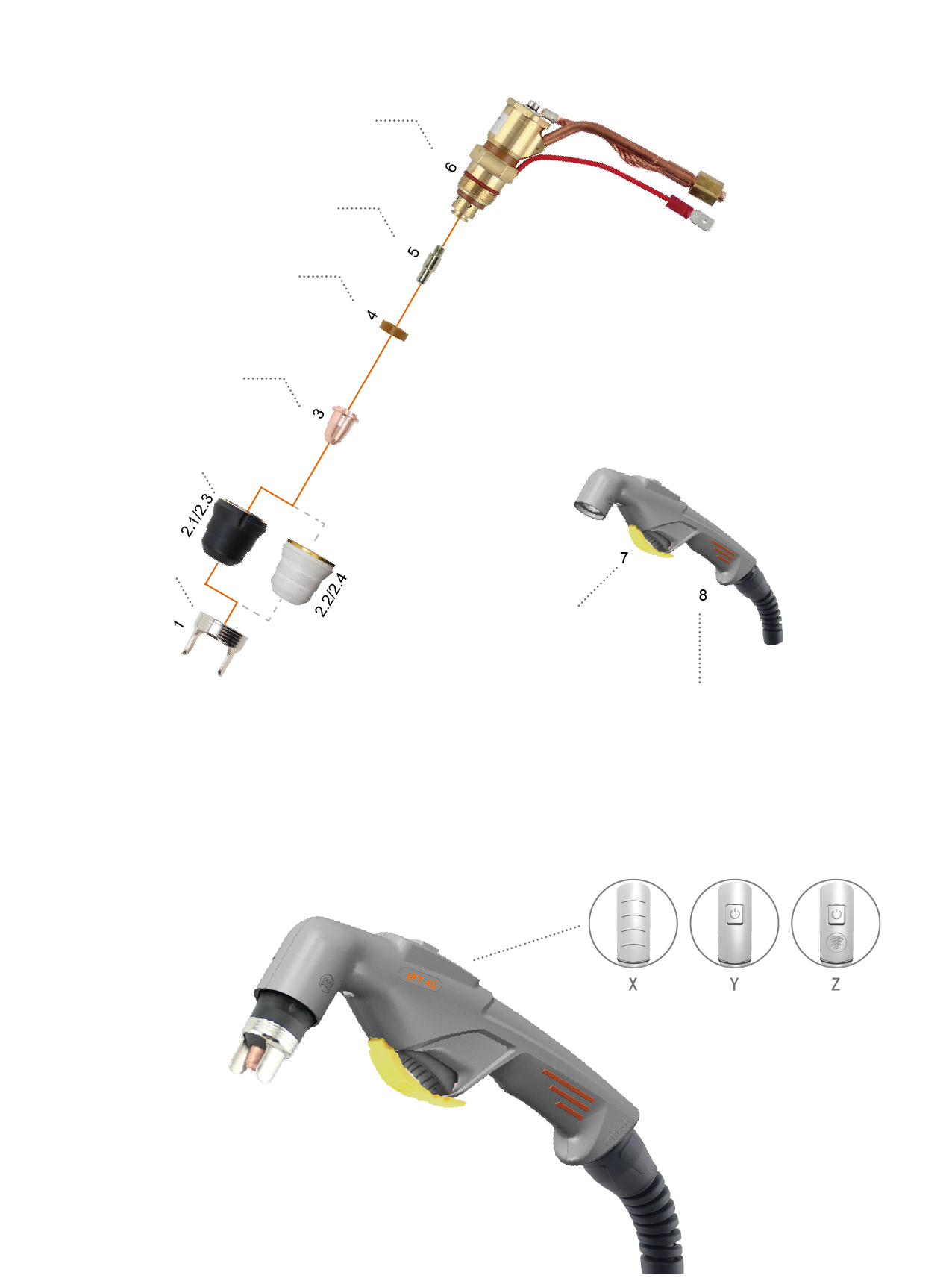

| Position | Code | Ref. | Description |
|---|---|---|---|
| 0 | AVG1992X | ||
| AVG1992Y | Torch head kit | ||
| AVG1992Z | |||
| 🔴1 | MSM0098-01 | ||
| 🔴2.1 | MVS0661-03 | 60389 | Bakelite |
| 2.2 | MVU1661-05 | Glass fiber | |
| 2.3 | MVS0685-03 | 60389K4 | Bakelite |
| 2.4 | MVS1685-05 | Glass fiber | |
| 3.1 | MVU0661-06 | PD0116-06 | Φ0.6mm 20A |
| 3.2 | MVU0661-08 | PD0116-08 | Φ0.8mm 30A |
| 🔴3.3 | MVU0661-09 | PD0116-09 | Φ0.9mm 40A |
| 🔴4 | MVF1601 | 60028 | |
| 🔴5 | MVB0660 | PR0110 | |
| 6 | MVZ0041 | PF0096 | |
| 🔴7.1 | MHQ0433 | Refer toY、Z | |
| 7.2 | MHQ0433-1 | Refer to X | |
| 8.1 | AGV1001X | ||
| 🔴8.2 | AGV1001Y | Handle | |
| 8.3 | AGV1001Z | ||
