IPT 20C
Technical Parameter
20A WITH NHF
35% DUTY CYCLE
2.0 BAR
30L/min
15s POST FLOW
4mm(500mm/min)RECOMMENDED VALUE

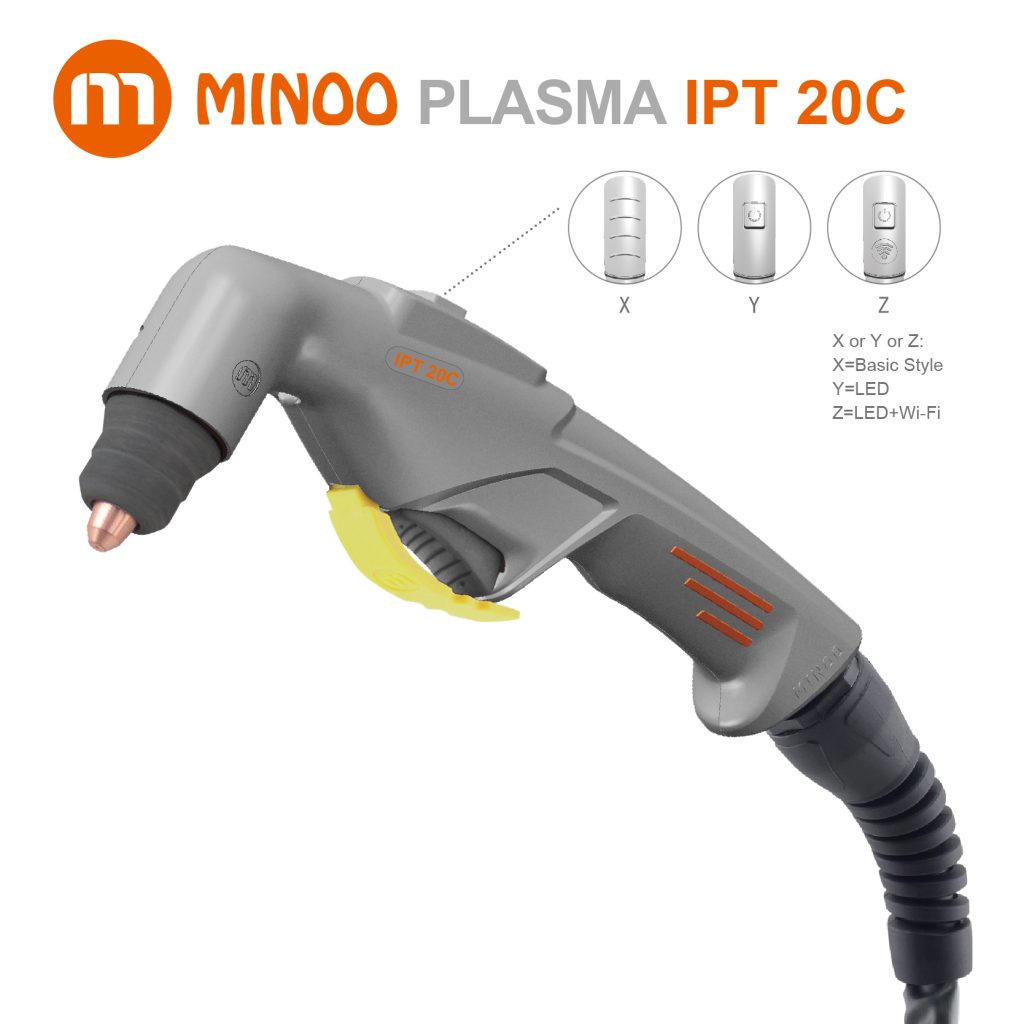

Procurement code+Optional accessory( ? = X or Y or Z)
AVT0800+?
4M
2Wires
AVT0802+?
4M
4Wires

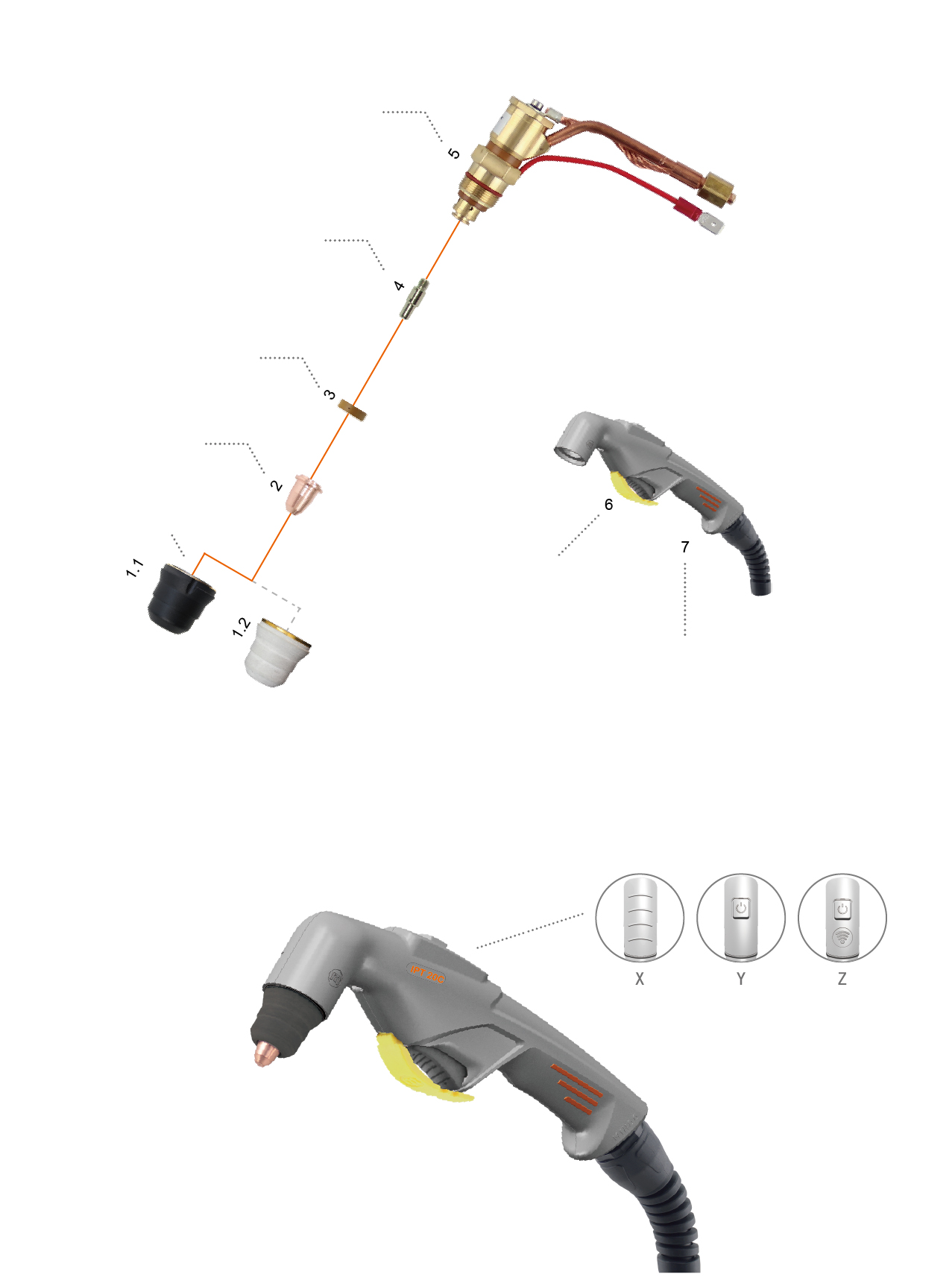

Consumables procurement code(with”🔴”is the standard configuration)
| Position | Code | Ref. | Description |
|---|---|---|---|
| 0 | AVG1990X | ||
| AVG1990Y | Torch head kit | ||
| AVG1990Z | |||
| 🔴1.1 | MVS0662-03 | 60389K | Bakelite |
| 1.2 | MVS1662-05 | Glass fibe | |
| 🔴2.1 | MVU0661-06 | PD0116-06 | Φ0.6mm 20A |
| 2.2 | MVU0661-08 | PD0116-08 | Φ0.8mm 30A |
| 🔴3 | MVF1601 | 60028 | |
| 🔴4 | MVB0660 | PR0110 | |
| 5 | MVZ0041 | PF0096 | |
| 6.1 | MHQ0433 | Refer toY、Z | |
| 🔴6.2 | MHQ0433-1 | Refer to X | |
| 🔴7.1 | AGV1001X | ||
| 7.2 | AGV1001Y | Handle | |
| 7.3 | AGV1001Z | ||
