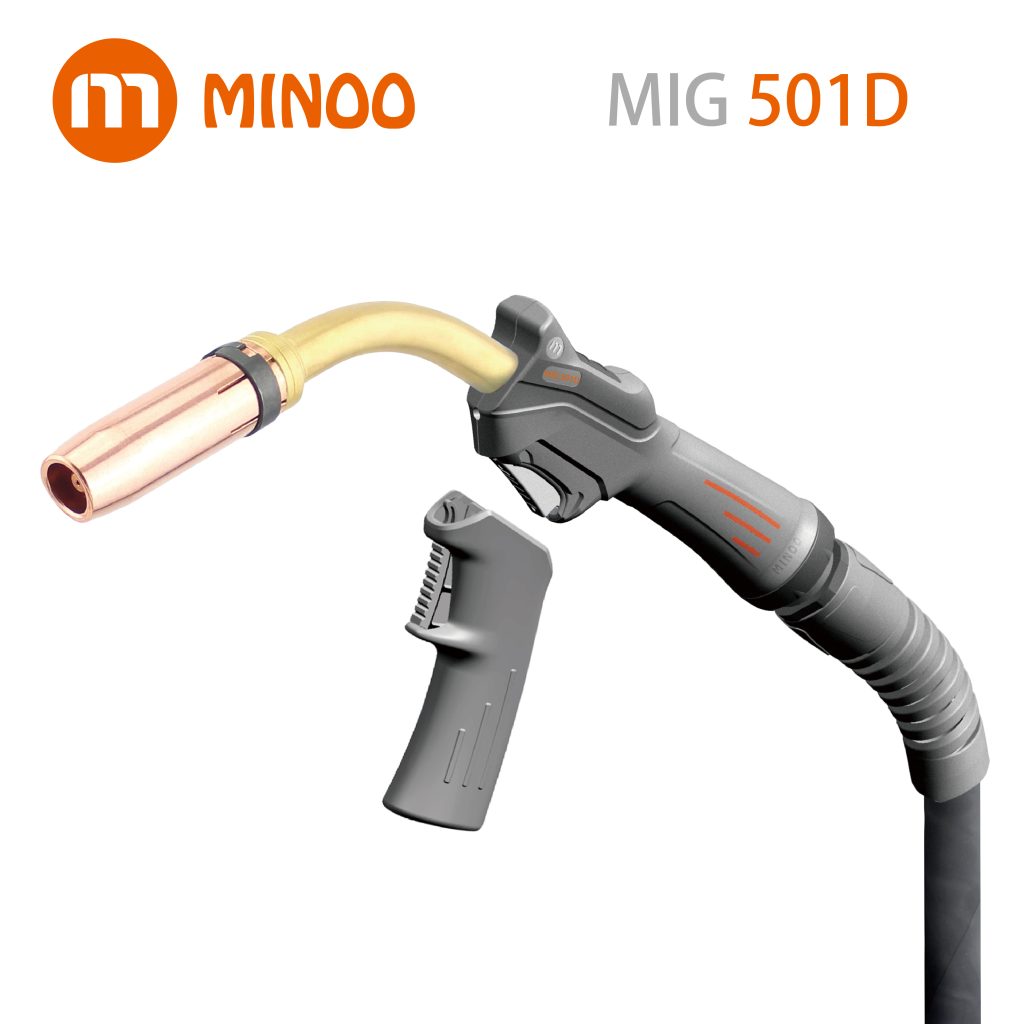

MIG 501D Gas Cooled CO₂ MIG Welding
Technical Parameter
WATER COOLED
DUTY CYCLE 100%: 500A CO₂，450A MIXED GAS
WIRE SIZE:1.0~1.6mm
Procurement code+Optional accessory( ? = A or B or C or D)
ACH2398+（？）
501D
3M
ACH2399+（？）
501D
4M
ACH2395+（？）
501D
5M
ACH2388+（？）
501D（ALU）
3M
ACH2389+（？）
501D（ALU）
4M
ACH2385+（？）
501D（ALU）
5M

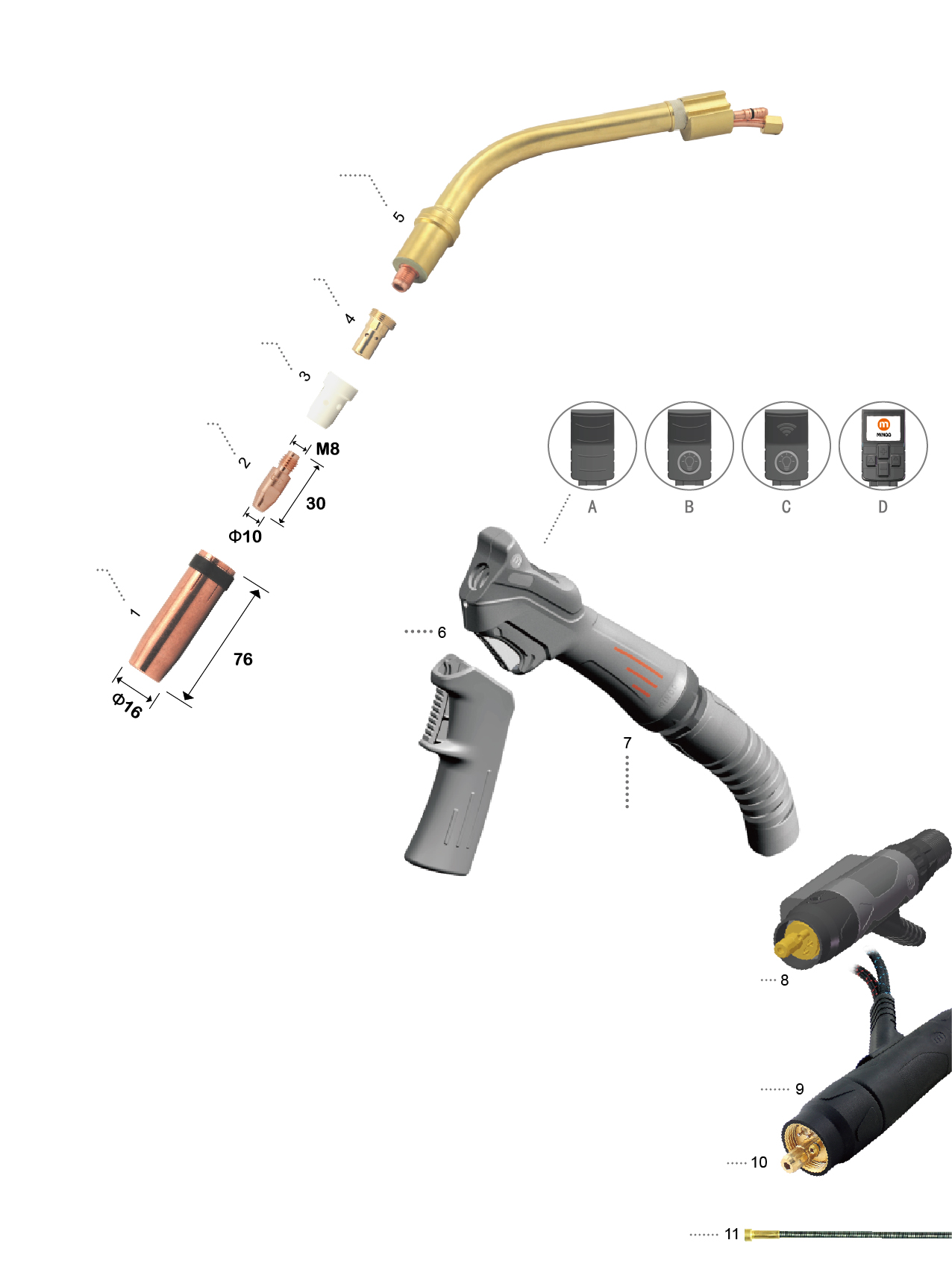

Consumables procurement code(with”🔴”is the standard configuration)
| Position | Code | Ref. | Description |
|---|---|---|---|
| 🔴1 | MCS0713 | 145.0085 | 16mm |
| 🔴2 | MCU0005-12 | 140.0442 | 1.2mm |
| 🔴3 | MCF0524 | 030.0190 | |
| 🔴4 | MCF0021 | 142.0022 | |
| 🔴5 | MCI0055 | 034.0011 | |
| 🔴6.1 | MHQ0433 | Refer to B、C、D | |
| 6.2 | MHQ0433-1 | Refer to A | |
| 7.1 | ACV1001A | Handle kit | |
| 🔴7.2 | ACV1001B | Handle kit | |
| 7.3 | ACV1001C | Handle kit | |
| 7.4 | ACV1001D | Handle kit | |
| 🔴8 | MHJ1004 | Refer to B、C、D | |
| 9 | MHJ1002 | Refer to A | |
| 10 | MTB0058 | ||
| 11.1 | MIC0580 | 122.0056 | 1.2~1.6 3.4M |
| 11.2 | MIC0586 | 122.0060 | 1.2~1.6 4.4M |
| 11.3 | MIC0587 | 122.0073 | 1.2~1.6 5.4M |
