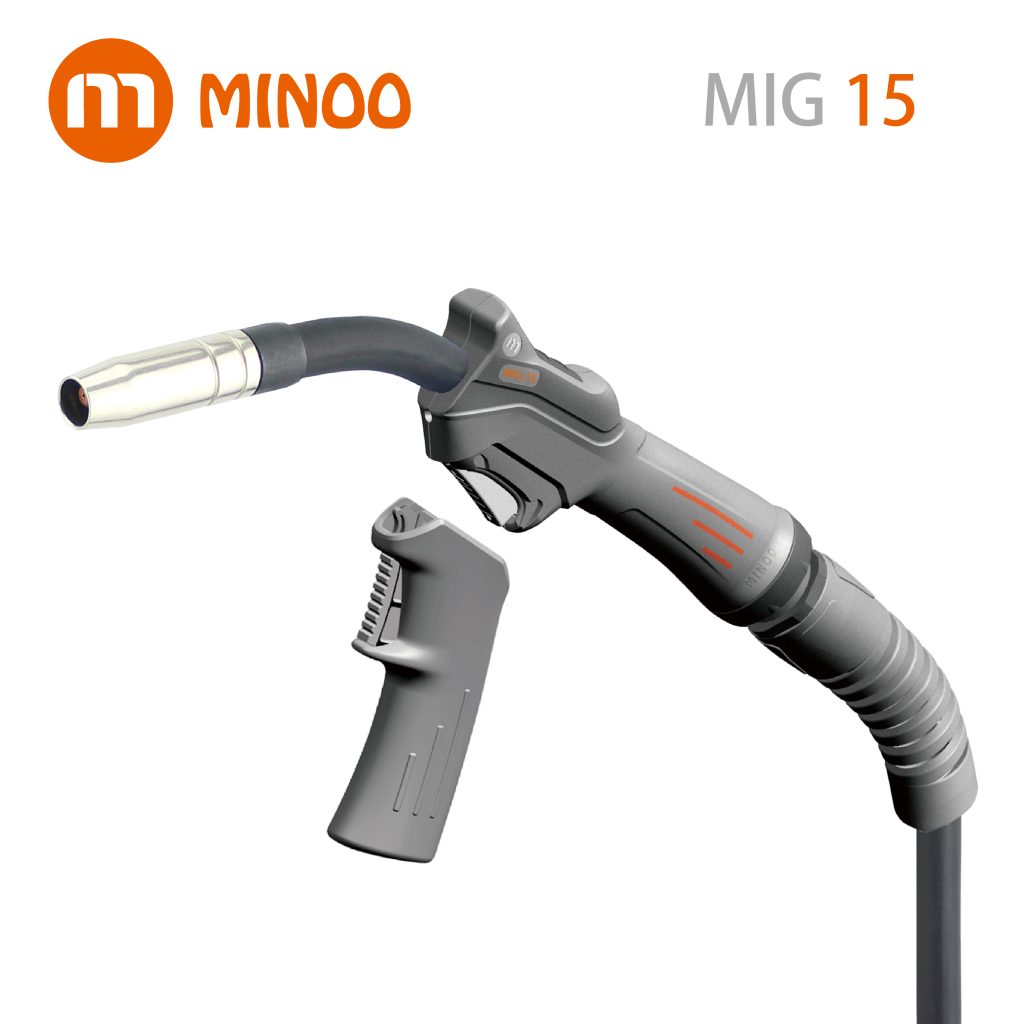

MIG 15 Gas Cooled CO₂ MIG Welding
Technical Parameter
GAS COOLED
DUTY CYCLE 60% ：180A CO₂，150A MIXED GAS
WIRE SIZE： 0.6~1.0mm
Procurement code+Optional accessory( ? = A or B or C or D)
ACT2098+（？）
MIG 15
3M
ACT2099+（？）
MIG 15
4M
ACT2095+（？）
MIG 15
5M

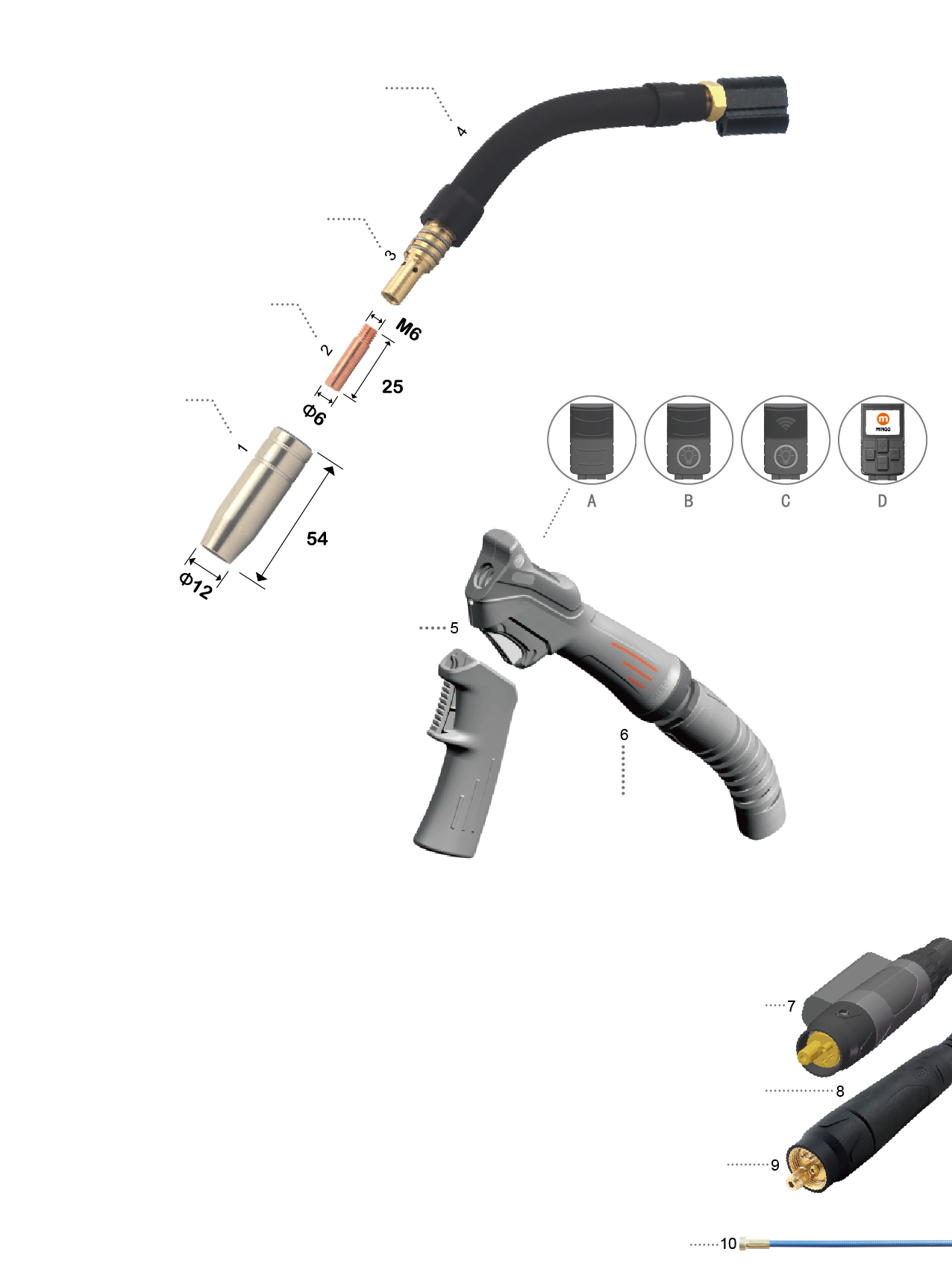

Consumables procurement code(with”🔴”is the standard configuration)
| Position | Code | Ref. | Description |
|---|---|---|---|
| 🔴1 | MCS0063 | 145.0075 | 12mm |
| 🔴2 | MCU0003-08 | 140.0059 | 0.8mm |
| 🔴3 | MZH0660 | ||
| 🔴4 | MCZ6087 | ||
| 🔴5.1 | MHQ0433 | Refer to B、C、D | |
| 5.2 | MHQ0433-1 | Refer to A | |
| 6.1 | ACV1001A | Handle kit | |
| 🔴6.2 | ACV1001B | Handle kit | |
| 6.3 | ACV1001C | Handle kit | |
| 6.4 | ACV1001D | Handle kit | |
| 🔴7 | MHJ1003 | Refer to B、C、D | |
| 8 | MHJ1001 | Refer to A | |
| 9 | MTB0055 | ||
| 10.1 | MIC0500 | 124.0011 | 0.6~0.8 3.4M |
| 10.2 | MIC0506 | 124.0012 | 0.6~0.8 4.4M |
| 10.3 | MIC0507 | 124.0015 | 0.6~0.8 5.4M |
