MIG 36 Gas Cooled CO₂ MIG Welding
Technical Parameter
GAS COOLED
DUTY CYCLE 60% ：340A CO₂，300A MIXED GAS
WIRE SIZE： 0.8~1.2mm
Procurement code+Optional accessory( ? = A or B or C or D)
ACT2998+（？）
36KD
3M
ACT2999+（？）
36KD
4M
ACT2995+（？）
36KD
5M
ACT2990+（？）
36KD（ALU）
3M
ACT2991+（？）
36KD（ALU）
4M
ACT2992+（？）
36KD（ALU）
5M
Consumables procurement code(with”🔴”is the standard configuration)

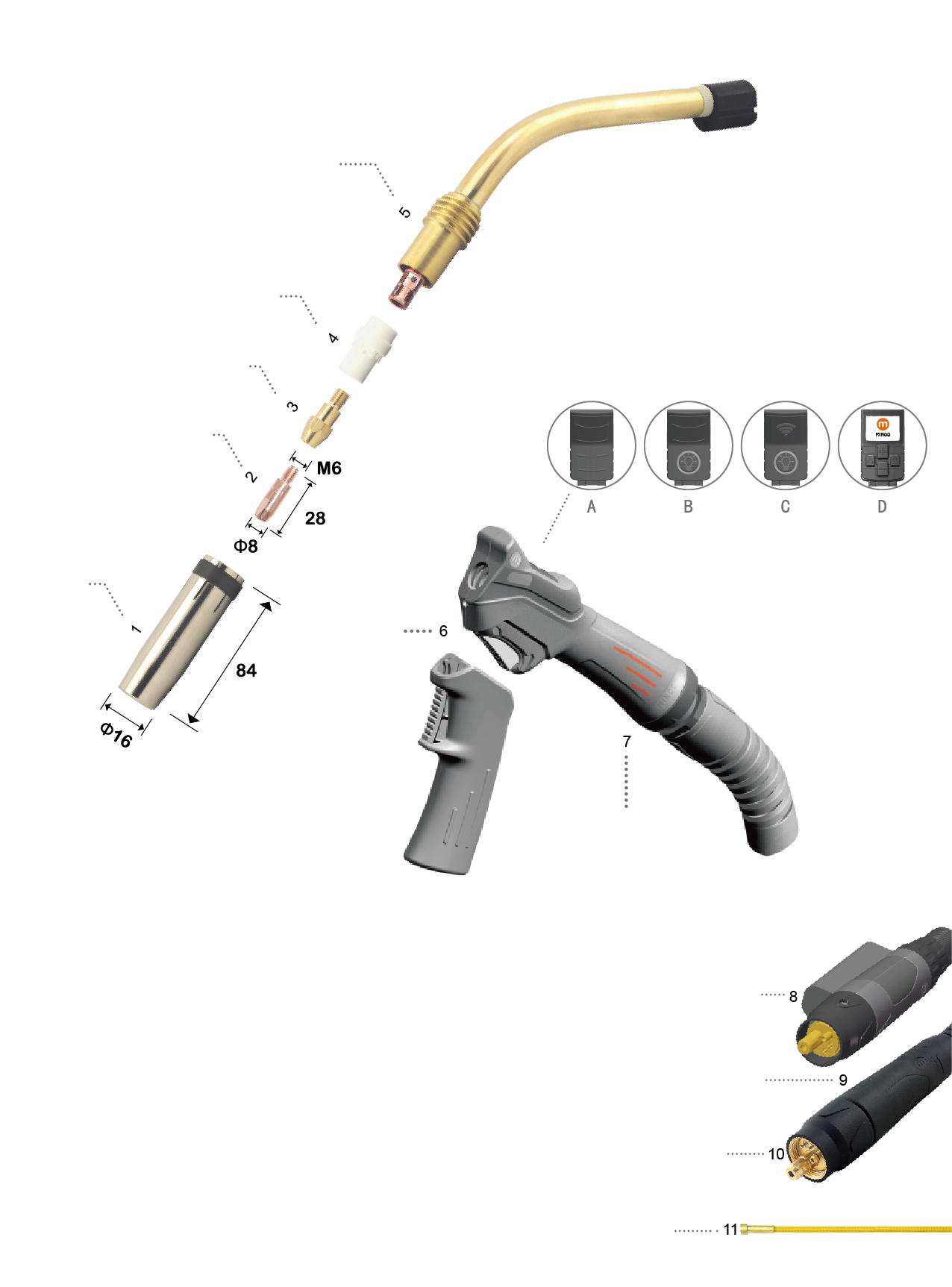

| Position | Code | Ref. | Description |
|---|---|---|---|
| 🔴1 | MCS0072 | 145.0078 | 16mm |
| 🔴2 | MCU0004-12 | 140.0379 | 1.2mm |
| 🔴3 | MCU0686 | 142.0011 | |
| 🔴4 | MCF0562 | 014.0023 | |
| 🔴5 | MCZ0089 | 014.0006 | |
| 🔴6.1 | MHQ0433 | Refer to B、C、D | |
| 6.2 | MHQ0433-1 | Refer to A | |
| 7.1 | ACV1001A | Handle kit | |
| 🔴7.2 | ACV1001B | Handle kit | |
| 7.3 | ACV1001C | Handle kit | |
| 7.4 | ACV1001D | Handle kit | |
| 🔴8 | MHJ1003 | Refer to B、C、D | |
| 9 | MHJ1001 | Refer to A | |
| 10 | MTB0055 | ||
| 11.1 | MIC0590 | 124.0041 | 1.0~1.6 3.4M |
| 11.2 | MIC0596 | 124.0042 | 1.0~1.6 4.4M |
| 11.3 | MIC0597 | 124.0044 | 1.0~1.6 5.4M |
