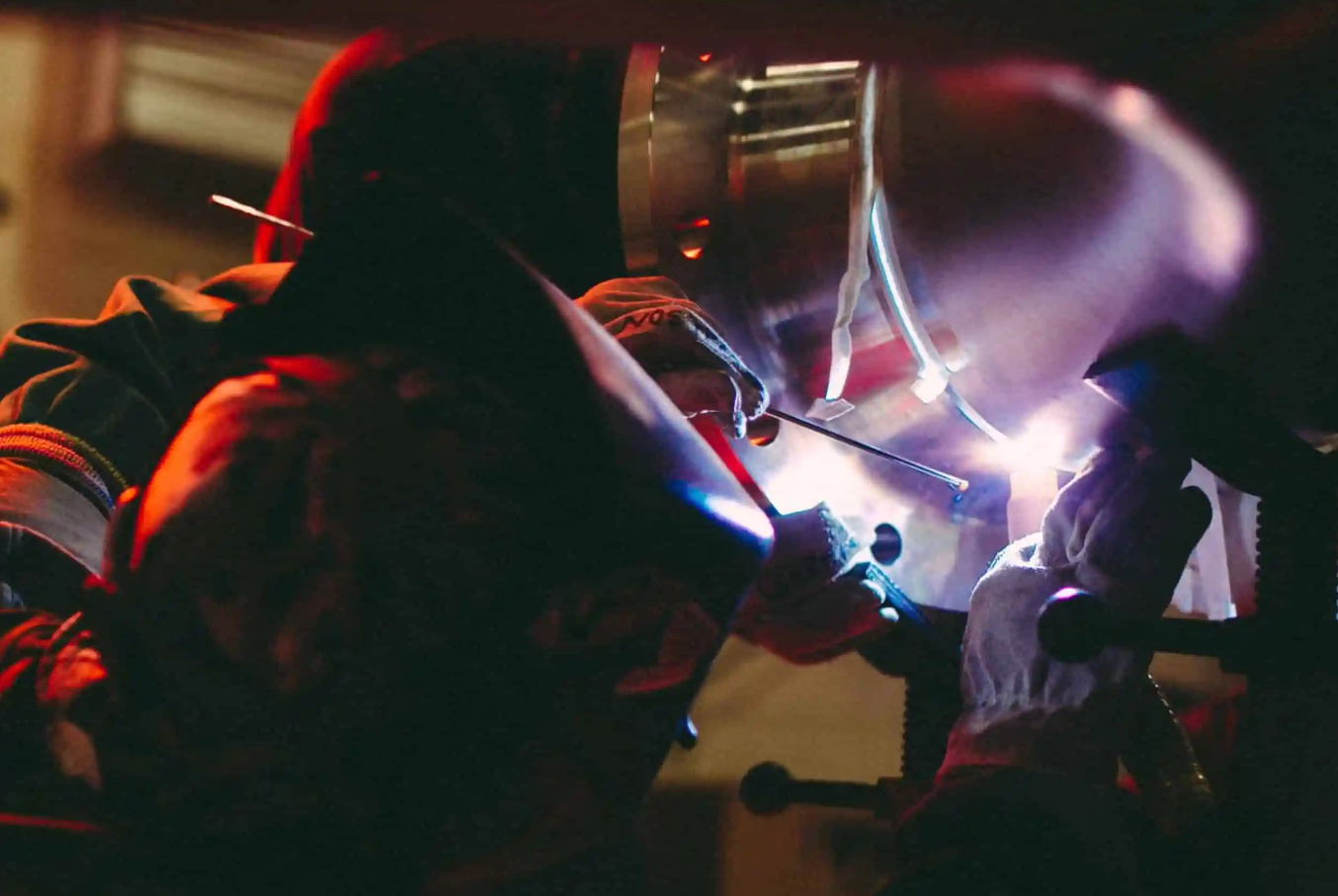

The overhead welding position is often considered the hardest due to accessibility and gravity challenges.
Different Welding Positions
Welding positions determine the direction of the welding process in relation to the workpiece. The position affects both the ease and quality of the weld. The American Welding Society (AWS) has standardized these positions to provide clarity and consistency in the welding industry.
Flat Position (1G and 1F)
In a flat welding position, the workpiece is lying flat, and the weld is performed from above it. It’s considered the easiest position for most welders.
- 1G: This refers to groove welds in a flat position. In this scenario, the welder joins two pieces of metal by fusing their edges.
- 1F: This refers to fillet welds in a flat position. Here, the welder joins two pieces of metal at right angles.
Tips for Flat Position Welding
Horizontal Position (2G and 2F)
In the horizontal welding position, the weld is made on the side of the workpiece, and the weld pool is susceptible to gravitational effects, making it slightly more challenging.
- 2G: Groove welds made in a horizontal position. The joint’s face lies in a vertical plane, while the weld is executed horizontally.
- 2F: Fillet welds done horizontally. It typically involves joining two flat pieces where their edges meet or a flat piece to a vertical one.
Vertical Position (3G and 3F)
Vertical welding requires the welder to move the torch up or down on a vertical workpiece. It’s more challenging due to the risk of the weld pool sagging.
- 3G: This pertains to groove welds done vertically. It can be performed both upwards and downwards, though the upward technique is more common due to better control over the weld pool.
- 3F: Refers to fillet welds in a vertical position. Here, the welder may need to start at the bottom and move upward to combat gravitational effects on the molten pool.
Understanding Vertical Welding
Overhead Position (4G and 4F)

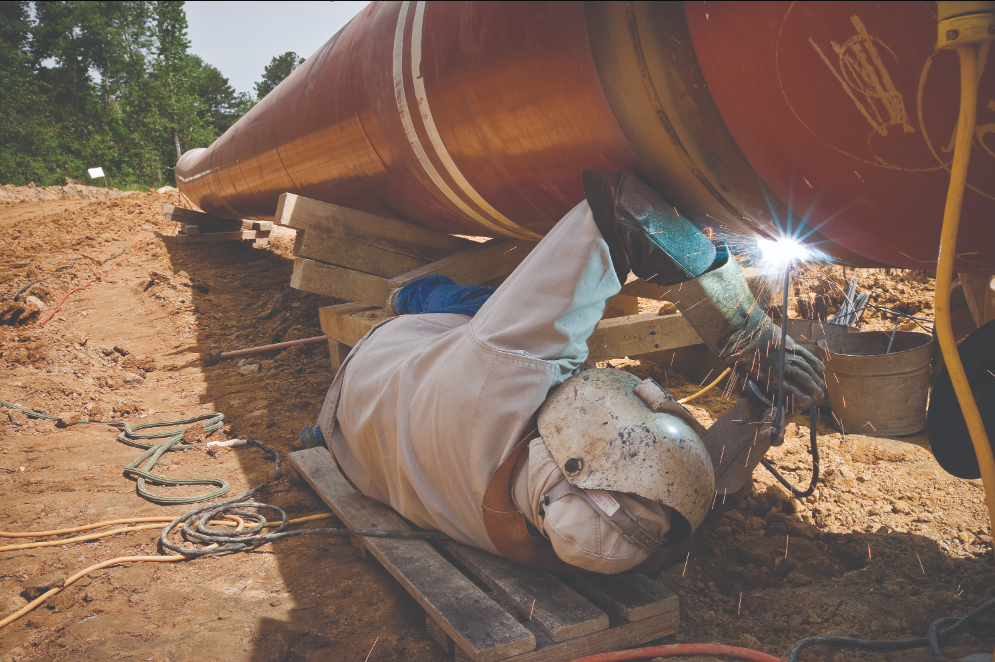

Overhead welding is arguably the most challenging position. The welder works beneath the joint, and the molten metal tends to drip, requiring superior skills.
- 4G: Groove welds done in an overhead position. The welder must control the weld pool carefully to prevent it from falling or sagging.
- 4F: Fillet welds performed overhead. Just like 4G, it demands a high level of precision and control from the welder.
Challenges of Overhead Welding
Pipe Positions (5G, 6G, etc.)
Welding pipes involves a unique set of challenges, especially when the pipe isn’t rotated during the process.
- 5G: A position where the pipe is fixed and cannot be rotated. The welder works around the pipe. It combines elements of flat, horizontal, and overhead welding.
- 6G: One of the most challenging positions, where the pipe is at a 45-degree angle. This position tests a welder’s skill in all positions.
Challenges Associated with Various Welding Positions
Understanding the challenges that come with different welding positions is crucial for ensuring quality welds. While every position has its unique set of difficulties, they all require a combination of skill, experience, and the right equipment. Some of the most common challenges faced by welders across various positions include:
Accessibility and Visibility

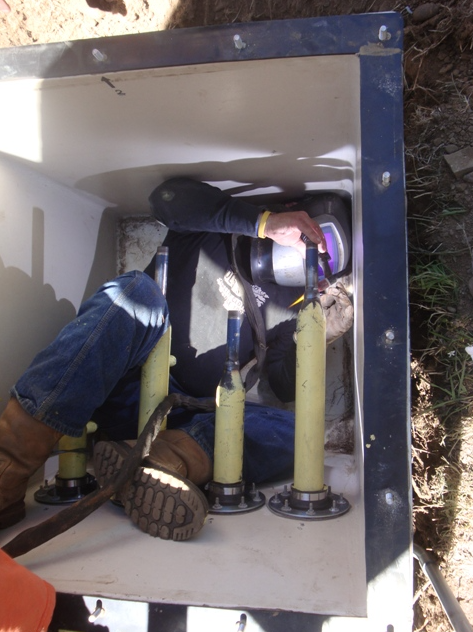

Ensuring proper visibility and access to the workpiece is a foundational requirement in welding. In positions such as overhead or vertical welding, there can be obstructions that impede a clear line of sight to the welding joint.
- Tips for Improvement: Using welding mirrors or cameras can help in situations with limited visibility. Investing in high-quality auto-darkening welding helmets can also enhance visibility and safety.
- Cost Implication: High-end auto-darkening helmets can range from $100 to $500, depending on brand and features.
Control of the Weld Pool
Controlling the molten weld pool is paramount, especially in positions like overhead or vertical welding, where gravity plays a significant role.
- Tips for Improvement: Practicing at different angles and speeds helps in mastering pool control. Additionally, using the right electrode and adjusting the amperage can make a difference.
- Cost Implication: Electrodes suitable for challenging positions might be slightly pricier, with prices ranging from $10 to $50 per pound, depending on the material and brand.
Impact of Gravity
Gravity’s influence on the molten weld pool can lead to sagging or dripping, particularly in overhead or vertical positions.
- Tips for Improvement: Using a shorter arc length and faster travel speed can combat the effects of gravity. It’s also beneficial to select the correct filler material with a suitable viscosity for the position.
- Cost Implication: Welding rods designed to counteract gravity’s effects can cost between $5 to $40 per pound.
Heat Distribution and Dissipation
Heat management is essential for ensuring the integrity of the weld. In positions like the horizontal or overhead, there can be uneven heat distribution, leading to weaker welds or warping of the material.
- Tips for Improvement: Preheating the workpiece or using intermittent welding (welding in short bursts) can help manage heat distribution. It’s also beneficial to invest in advanced welding machines with pulse welding features.
- Cost Implication: Welding machines with advanced heat control features can range from $500 to $5000, depending on the capacity and brand.
Why Some Positions are Considered More Difficult
Welding is an intricate process, and not all positions are created equal. While some positions offer a straightforward approach, others demand heightened skill levels, precision, and even physical endurance from the welder. Let’s dive into the primary reasons some positions are seen as more challenging than others:
Physical Strain and Ergonomics
The physical posture required by some welding positions can be taxing. Extended periods in uncomfortable positions can lead to fatigue, decreased performance, and even long-term health issues.
- Overhead Welding: Demands the welder to work underneath the joint, leading to potential neck strain and fatigue as they need to look upwards constantly.
- Vertical Welding: Requires constant movement either upwards or downwards. This can strain the arm muscles and test one’s hand-eye coordination.
- Pipe Welding: Especially in fixed positions, the welder might need to navigate around the pipe, leading to uncomfortable postures.
Tips for Improvement: Investing in ergonomic equipment, taking regular breaks, and practicing proper body mechanics can alleviate some of the physical strains. Also, maintaining physical fitness can play a role in reducing fatigue.
Learn about Welding Ergonomics
Risk of Defects and Imperfections
Certain welding positions increase the likelihood of defects due to the challenges they present. These imperfections not only affect the appearance of the weld but its structural integrity as well.
- Porosity: This is when gas bubbles get trapped in the weld, leading to weak points. Overhead and vertical positions can heighten the risk due to gravitational effects on the molten pool.
- Undercuts: Occur when the weld doesn’t fully fill the space between the pieces being joined. This can be common in vertical welding, where the molten metal might flow away from the intended area.
- Incomplete Penetration: This is when the weld doesn’t fuse through the entire thickness of the material. It’s a risk in positions where visibility is limited or access is restricted.
Tips for Improvement: Using the right welding technique, adjusting the amperage, and choosing the correct filler material can help in reducing the risk of defects. Regular inspection and practice can also go a long way in ensuring quality welds.
Tools and Equipment that Aid in Difficult Positions
Welding in complex positions demands not just skill and experience but also the right set of tools and equipment. These tools are specifically designed to assist welders, ensuring that the weld quality is maintained irrespective of the position. Let’s delve into some of these essential tools:
Welding Positioners
Welding positioners are mechanical devices that rotate or tilt workpieces, allowing the welder to work in a more comfortable position, essentially bringing the work to the welder.
- Rotary Positioners: These turn the workpiece around a central axis, ensuring consistent speed and precision, especially useful for pipe welding.
- Tilt-Turn Positioners: These can both rotate and tilt the workpiece, offering maximum flexibility, ideal for complex geometric pieces.
Benefits: Welding positioners can drastically increase productivity, reduce fatigue, and enhance weld quality by offering a stable work surface.
Learn more about Welding Positioners
Specialized Welding Torches
A welding torch is the point of action, and using a specialized one can significantly aid in challenging positions.
- Flexible Head Torches: These torches allow the welder to bend the head at various angles, granting access to confined spaces or difficult angles.
- Water-Cooled Torches: For extended welding sessions or in positions where heat buildup is significant, these torches help in dissipating the heat, ensuring consistent performance.
Benefits: Specialized torches provide better access, increased comfort, and enhanced performance, especially in demanding welding positions.
Deep dive into Welding Torches
Personal Protective Equipment (PPE) for Various Positions
Safety is paramount in welding. PPE is designed to safeguard the welder from potential hazards that vary with different welding positions.
- Auto-Darkening Helmets: These helmets automatically adjust the shade when an arc is struck, ensuring optimal visibility and protection in all positions.
- Respirators: Especially in positions where fumes can accumulate, a respirator ensures that the welder is not inhaling harmful particles.
- Welding Jackets and Aprons: In overhead welding, molten spatter can fall downwards. Protective clothing prevents burns and other injuries.
Benefits: PPE not only ensures the safety of the welder but also enhances comfort, leading to better performance and reduced fatigue.
Training and Practice: Key to Mastering Difficult Positions
The complexities of welding, especially in challenging positions, can’t be understated. Just like any craft or skill, welding demands dedicated training and consistent practice. Beyond the tools and equipment, it’s the welder’s expertise, developed through rigorous training and practice, that makes the real difference. Let’s delve into the integral aspects of this journey:
Importance of Welding Certification
Welding certification acts as a testament to a welder’s proficiency in specific techniques and positions.
- Standard Recognition: Welding standards set by organizations like the American Welding Society (AWS) define the criteria for different welding procedures. Earning a certification implies that a welder meets these rigorous standards.
- Career Opportunities: Many employers seek certified welders as it ensures quality and competence. Certification can open doors to more advanced and better-paying job opportunities.
- Personal Skill Assessment: The process of getting certified allows welders to understand their strengths and areas that need improvement.
Takeaway: Earning a welding certification is a professional milestone, ensuring both skill recognition and career advancement.
Delve into Welding Certification
Simulation and Real-World Training
In the age of technology, training methodologies have evolved, offering a blend of simulation and real-world experiences.
- Welding Simulators: These are virtual platforms that mimic real-world welding scenarios. They offer immediate feedback, allowing trainees to understand and rectify mistakes in a risk-free environment.
- Hands-on Training: Nothing beats the experience of welding in a real workshop setting. It helps in understanding the nuances of the material, equipment, and different positions.
Takeaway: A balanced approach, combining both simulator-based and real-world training, offers the best learning curve, ensuring that welders are well-prepared for any challenge.
Continuous Practice and Feedback
Like any skill, welding demands repetition and continuous feedback.
- Regular Practice: Consistency is the key. Regularly welding in different positions ensures muscle memory development and refines techniques.
- Seeking Feedback: Whether from peers, mentors, or through self-assessment tools, feedback helps in identifying areas of improvement and reinforces good practices.
Takeaway: The journey of mastering welding doesn’t end with training; it’s an ongoing process. Continuous practice and iterative feedback are the cornerstones of excellence in the welding domain.
Safety Concerns in Various Welding Positions
Welding, by its nature, presents a host of potential hazards. While these hazards are inherent across all positions, the risks may vary or amplify based on the specific welding position. Understanding and mitigating these dangers is crucial to ensuring both the welder’s safety and the quality of the weld. Here’s a deeper look into safety concerns in different welding positions:
Potential Hazards in Overhead Welding
Overhead welding, where the welder works beneath the joint, has its unique set of challenges.
- Falling Molten Metal: As the weld is being made overhead, there’s a risk of molten metal or slag falling onto the welder.
- Increased Fume Inhalation: Smoke and fumes naturally rise, making overhead welding more hazardous concerning inhalation of potentially toxic fumes.
- Risk of Arc Eye: The intensity of the arc can lead to “arc eye” or welder’s flash if adequate eye protection isn’t used.
Takeaway: Overhead welding demands heightened awareness and specialized PPE to counter its unique challenges.
Precautions in Vertical Welding
Welding vertically, either upwards or downwards, presents different risks and demands specific precautions.
- Molten Metal Flow: When welding vertically, the molten metal can flow away from the desired position due to gravity, leading to potential weld defects and drips.
- Restricted Movement: Often, vertical welding can restrict a welder’s movement, making quick escapes from sparks or excessive heat challenging.
- Visibility Issues: The position may cause the arc or the weld pool to be less visible, increasing the chances of errors or mishaps.
Takeaway: Vertical welding requires a mix of skill, patience, and vigilance. Proper technique and PPE are vital.
Know more about Vertical Welding
Best Practices to Ensure Safety
Safety should always be paramount, irrespective of the welding position. Here are some universal best practices:
- Wear Appropriate PPE: This includes welding helmets with auto-darkening lenses, heat-resistant gloves, and protective clothing.
- Ensure Proper Ventilation: Adequate ventilation reduces the risk of inhaling harmful fumes.
- Regular Equipment Checks: Regularly inspect welding equipment for any wear or damage. Ensure that all parts, including the torch and cables, are in good working condition.
- Stay Updated: Regularly attend safety seminars or workshops to stay updated on the latest safety protocols and techniques in the industry.
Takeaway: Safety in welding is a combination of awareness, preparation, and continuous learning. No matter the position, safety should never be compromised.
