What materials Cannot be cut with plasma?

Plasma cutting is unsuitable for glass, certain ceramics, reflective metals, and some thin or composite materials.

Characteristics of Plasma Cutting

Plasma cutting is a process that uses an accelerated jet of hot plasma to cut through electrically conductive materials. This method is primarily employed for cutting metals like steel, aluminum, brass, and copper, though it can be utilized for other materials as well. Below are some of the key characteristics of plasma cutting.

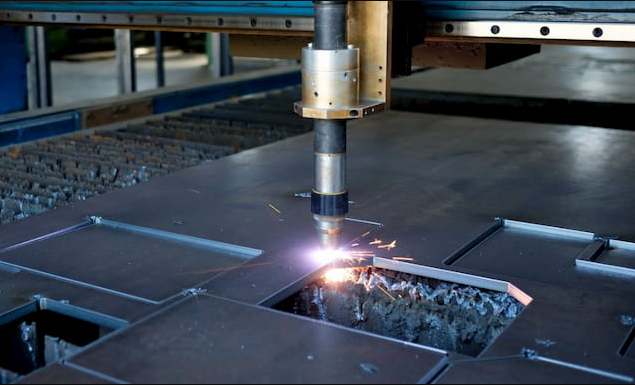

What materials Cannot be cut with plasma

Temperature and Speed

Plasma cutting operates at incredibly high temperatures, often exceeding 20,000°C. This extreme heat allows for a rapid cutting process and makes it especially effective for thick materials. The speed of the cut can be adjusted based on the thickness and type of the material. In general, thinner materials can be cut at a faster pace. With advancements in technology, modern plasma cutters can achieve speeds that make the process competitive with other cutting methods. One of the advantages of these high temperatures and speeds is the reduction in heat-affected zones (HAZ), leading to a cleaner cut. For more in-depth information about the mechanics of plasma, consider visiting the Wikipedia page on plasma (physics).

Material Thickness and Gases Used

The versatility of plasma cutting means it can handle a variety of material thicknesses. While the method shines particularly with thicker metals, advancements have made it possible to cut thinner sheets with precision. The type of gas used in plasma cutting plays a significant role in determining the quality of the cut. Common gases include oxygen, nitrogen, and argon. Each gas offers different benefits: for example, oxygen provides a cleaner cut on mild steel, while argon is often mixed with other gases for cutting non-ferrous metals. Understanding the interaction between gases and materials is crucial for achieving optimal cutting results. To learn more about the role of different gases in industrial processes, the Wikipedia page on industrial gases is a valuable resource.

Suitable Materials for Plasma Cutting

Plasma cutting, due to its versatility, is a preferred choice for many industrial applications. The method’s ability to handle a range of conductive materials efficiently makes it indispensable in fabrication and construction projects. However, understanding the most common materials it works with, and the advantages of using plasma cutting for these materials, can provide valuable insights.

Most Commonly Cut Materials

Plasma cutting excels in processing a variety of electrically conductive materials. The most popular among these include:

  • Steel: Including both stainless and mild varieties, steel is often cut using plasma for applications in automotive and construction industries.
  • Aluminum: Lighter than steel and widely used in aerospace, automotive, and marine applications, aluminum is another prime candidate for plasma cutting.
  • Copper: Essential in electrical components, copper can be intricately shaped using plasma cutters.
  • Brass: Often found in decorative elements and some machinery components, brass benefits from the precision offered by plasma cutting.

For a comprehensive list of materials and their properties, consider visiting the Wikipedia page on materials science.

Advantages of Plasma Cutting These Materials

There are several reasons why plasma cutting is the go-to method for the aforementioned materials:

  • Speed: Plasma cutting is faster than many traditional methods, especially for thicker materials.
  • Precision: The focused nature of the plasma jet allows for intricate designs and tight tolerances, even on dense materials.
  • Economical: In terms of time and resource efficiency, plasma cutting often offers better value compared to methods like oxy-fuel cutting.
  • Reduced HAZ: The high temperatures and rapid cutting speed result in minimal heat-affected zones, preserving the properties of the material being cut.

For a deeper understanding of manufacturing processes and advantages, the Wikipedia page on manufacturing offers a wide array of information.



Materials Unsuitable for Plasma Cutting

While plasma cutting is revered for its versatility, not all materials are conducive to this method. Understanding the materials that don’t work well with plasma cutting can save time and prevent potential damage to both the workpiece and the equipment. Here are some materials you might reconsider before using a plasma cutter.

Non-Conductive Materials

Plasma cutting relies on the electrical conductivity of the material being cut. Consequently, non-conductive materials are inherently unsuitable for this process.

  • Glass: Being a non-conductive material, glass is not a candidate for plasma cutting. Instead, methods like water jet cutting are typically employed for shaping glass.
  • Some Ceramics: While certain ceramics might contain conductive elements, many do not. Those without conductivity are not suitable for plasma cutting. Ceramics, in general, are better shaped using grinding or laser methods. To learn more about ceramics and their properties, check out the Wikipedia page on ceramics.

Certain Types of Metals

Some metals, due to their properties or form, aren’t ideal for plasma cutting.

  • Reflective Metals: Metals like gold and silver can reflect the plasma beam, which might lead to uneven cuts and potential harm to the cutting equipment.
  • Extremely Thin Metals: While plasma cutting can manage thin metals, metals that are too thin risk warping or melting under the intense heat of the plasma.

Temperature-Sensitive Materials

Certain materials can’t handle the extreme temperatures of plasma cutting without undergoing undesirable changes.

  • Certain Plastics: While some plastics are thick and dense enough to endure the heat, many will simply melt or release toxic fumes when exposed to the high temperatures of plasma cutting. For an in-depth look at plastics and their varying properties, the Wikipedia page on plastics is quite informative.
  • Rubber: Rubber can easily burn or melt when subjected to plasma cutting temperatures. It’s also a material that emits fumes that might be harmful when burned.

Composite Materials

Materials composed of multiple elements, like fiber-reinforced composites, might not react uniformly to plasma cutting. This non-uniform reaction can result in uneven cuts or damage to the material structure. Composites require specialized cutting methods that can handle their unique composition. For a deeper dive into composite materials and their applications, consider browsing the Wikipedia page on composite materials.

How Plasma Cutting Works

Challenges of Plasma Cutting Certain Materials

Plasma cutting, despite its many advantages, comes with its own set of challenges. Whether it’s potential harm to the materials, safety risks, or wear and tear on the machinery, users should be aware of these challenges to make informed decisions.

Potential Damages to the Material

The high temperatures involved in plasma cutting can lead to several issues with the workpiece:

  • Heat-Affected Zone (HAZ): The region surrounding the cut might experience a change in material properties due to the intense heat. This can sometimes weaken the material or alter its structure.
  • Dross Formation: Dross is the molten material that can solidify rapidly on the underside of a cut, leading to rough edges. This often necessitates post-cutting treatments to achieve smooth finishes.
  • Warpage: Especially in thinner materials, the intense heat can cause warping or distortion.

For a deeper understanding of how heat affects materials, the Wikipedia page on thermodynamics offers insightful information.

Safety Concerns

Plasma cutting, like many high-energy processes, comes with safety risks:

  • UV Radiation: The process emits ultraviolet radiation, which can harm exposed skin and eyes.
  • Toxic Fumes: The intense heat can cause the release of harmful fumes, especially when cutting materials like certain plastics or coated metals.
  • Electrical Hazards: Given that plasma cutting relies on electrical arcs, there’s always a risk of electric shocks if the equipment isn’t used properly.

Understanding and mitigating these risks is essential, and the Wikipedia page on occupational safety and health provides comprehensive guidelines on maintaining safety in industrial environments.

Equipment Wear and Maintenance

Plasma cutting equipment is subject to wear and requires regular maintenance:

  • Electrode and Nozzle Wear: The electrode and nozzle can wear out over time due to the high temperatures and pressures. Regular inspection and replacement are crucial.
  • Gas Flow Issues: Inconsistent gas flow can affect the quality of the cut. It’s vital to ensure that gas lines are clean and regulators function correctly.
  • Circuitry Concerns: The electrical components of a plasma cutter, over time, can experience wear or damage. Regular checks can prevent sudden breakdowns.

For tips on maintaining industrial equipment, the Wikipedia page on maintenance (technical) is a valuable resource.

How hot does the plasma jet get in plasma cutting?

Plasma cutting operates at temperatures often exceeding 20,000°C.

What are the primary metals cut using plasma?

Common metals cut using plasma include steel, aluminum, copper, and brass.

Which metals can reflect the plasma beam, potentially causing issues?

Reflective metals like gold and silver can reflect the plasma beam, leading to uneven cuts.

What are the potential safety risks associated with plasma cutting?

Risks include exposure to UV radiation, toxic fumes, and electrical hazards.

Why is it challenging to cut extremely thin metals with plasma?

Metals that are too thin risk warping or melting under the intense heat of the plasma.

How does plasma cutting affect the region surrounding the cut on a material?

The surrounding region, called the Heat-Affected Zone (HAZ), might experience changes in material properties due to intense heat.

Which components of the plasma cutter wear out frequently and need regular inspection?

The electrode and nozzle are prone to wear due to high temperatures and pressures and require regular replacement.

What are the advantages of using plasma cutting for steel and aluminum?

Plasma cutting offers speed, precision, economical value, reduced heat-affected zones, and is especially effective for thicker materials like steel and aluminum.
