What is a MIG welding gun?

A MIG welding gun is a critical component in the MIG (Metal Inert Gas) welding process. It feeds a consumable wire electrode and shielding gas into the weld pool, creating an electric arc that melts the wire to form a strong joint.

MIG Welding Gun Overview

Definition and Basic Function

A MIG Welding Gun serves as the critical tool in Metal Inert Gas (MIG) welding, a process widely recognized for its efficiency and speed in joining metals. Essentially, it functions by feeding a continuous solid wire electrode through the gun into the weld pool, melting the wire to form a strong joint. This method, known for its versatility, suits a variety of metals and thicknesses, making it a popular choice in both industrial and home settings.

Historical Development of MIG Welding Guns

The journey of MIG welding guns began in the 1940s, evolving significantly over the decades. Initially, they found use in welding non-ferrous materials during WWII, providing a faster alternative to traditional welding methods. Over the years, improvements in technology enhanced their functionality, such as the introduction of semi-automatic and fully automatic systems, dramatically increasing welding speeds and quality. By the 1960s, MIG welding had become a mainstay in manufacturing industries, praised for its ability to produce strong, high-quality welds rapidly.

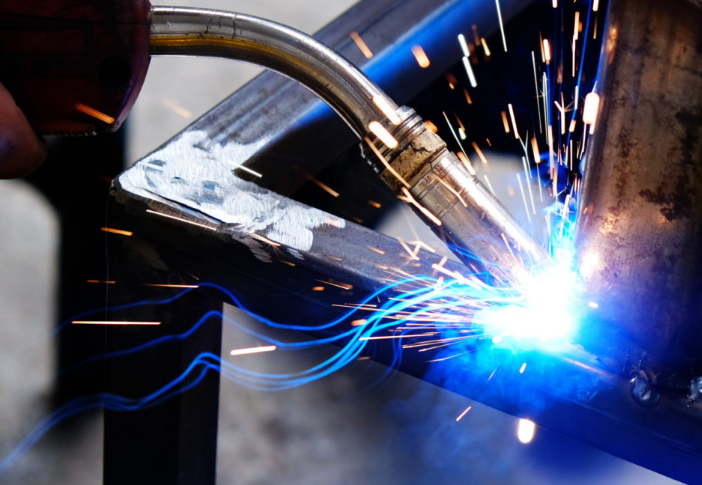

What is a MIG welding gun

Key Components of a MIG Welding Gun

A typical MIG welding gun comprises several essential components, each playing a pivotal role in the welding process. The handle allows for easy manipulation of the gun, while the trigger controls the wire feed and electric arc. The contact tip conducts electricity to the wire, creating the arc necessary for welding. Additionally, the nozzle directs the shielding gas, essential for protecting the weld pool from atmospheric contamination. The gas diffuser regulates the flow of gas, ensuring a stable and consistent weld. Notably, the durability and efficiency of these components can significantly impact the overall performance and cost-effectiveness of the welding process.

In crafting MIG welding guns, manufacturers often prioritize material quality to ensure longevity and performance. For example, using high-grade copper for the contact tip enhances electrical conductivity, while robust plastics or metals for the handle improve durability. The speed at which these guns operate can vary, with some advanced models capable of feeding wire at a rate of up to 800 inches per minute, showcasing the rapid advancements in welding technology.

Through these developments, MIG welding guns have become a staple in various sectors, including automotive repair, construction, and manufacturing. The emphasis on enhancing efficiency, reducing costs, and improving weld quality continues to drive innovations in this field, cementing the MIG welding gun’s position as an indispensable tool in modern metalworking.

Types of MIG Welding Guns

Air-Cooled MIG Guns

Air-Cooled MIG Guns stand out for their simplicity and cost-effectiveness. They utilize ambient air to dissipate heat generated during welding, making them suitable for light to medium-duty welding tasks. Typically, these guns can handle welding currents up to about 300-400 amps, making them a practical choice for general fabrication, auto repair, and DIY projects. The lack of additional cooling equipment makes these guns lighter and more maneuverable, a significant advantage in terms of ease of use and maintenance.

Water-Cooled MIG Guns

In contrast, Water-Cooled MIG Guns cater to high-heat, high-amperage welding applications, commonly found in industrial settings. These guns use a cooling fluid, typically water, to maintain a lower temperature even under intense welding conditions. They can efficiently handle currents exceeding 400 amps, sometimes reaching up to 600 amps, which is essential for heavy-duty welding tasks such as those in shipbuilding or industrial manufacturing. Despite their higher cost and the need for a cooling system, these guns offer better performance and longer continuous welding capability, making them invaluable in high-production environments.

Specialized MIG Guns for Specific Applications

Specialized MIG Guns are designed for unique welding applications, where standard guns might not suffice. These include guns with extended reach for welding in confined spaces, lightweight models for enhanced maneuverability, or guns with specific wire-feeding mechanisms to handle different types of welding wire. For instance, aluminum welding often requires a gun with a spool gun attachment to prevent wire tangling and feeding issues. These specialized tools cater to the nuanced needs of various industries, ensuring that there’s a MIG welding gun for virtually every type of welding task.



Each type of MIG welding gun brings its unique set of advantages, tailored to different welding scenarios. The choice between air-cooled, water-cooled, and specialized guns depends largely on the specific requirements of the welding task, including factors like amperage, duty cycle, and accessibility of the welding area. As technology advances, we can expect further innovations in these tools, enhancing their efficiency, durability, and versatility in the world of welding.

Operating Principles of MIG Welding Guns

The Role of Electricity in MIG Welding

Electricity plays a pivotal role in MIG welding, providing the energy needed to create the weld. The welding gun acts as a conduit for electrical current, which is necessary to heat and melt the metal. In MIG welding, the electrical current typically ranges from 40 to 350 amps, depending on the thickness of the metal and the type of welding being done. The voltage also plays a critical role, typically varying between 16 and 36 volts, to maintain a stable arc and control the heat input.

Gas Flow and Its Importance in MIG Welding

The gas flow in MIG welding serves two primary functions: protecting the weld area from atmospheric contaminants and stabilizing the welding arc. A mixture of inert gases, commonly argon and carbon dioxide, creates a shield around the weld pool to prevent oxidation and contamination, which can weaken the weld. The flow rate of these gases is crucial and typically ranges from 20 to 50 cubic feet per hour, depending on the welding parameters and external conditions like wind.

Wire Feed Mechanism in MIG Welding

The wire feed mechanism is central to the functionality of a MIG welding gun. It continuously feeds a consumable wire electrode at a controlled rate, which becomes the filler material for the weld. The speed of this wire feed is adjustable and plays a significant role in determining the welding speed and the quality of the weld. Wire feed speeds can vary widely, from as low as 40 inches per minute to as high as 800 inches per minute, depending on the welding application and the material being welded.

Each of these elements — electricity, gas flow, and wire feed mechanism — work in unison to ensure that MIG welding is efficient, versatile, and capable of producing high-quality welds in a variety of metals and thicknesses. Understanding these principles is key to mastering MIG welding and optimizing the welding process for different applications.

What is a MIG welding gun

Maintenance and Care of MIG Welding Guns

Routine Maintenance Procedures

Ensuring the optimal performance of MIG welding guns requires diligent routine maintenance. This involves regularly inspecting and replacing consumable parts like nozzles, contact tips, and liners. For instance, you should replace the contact tip after about 8 hours of use, depending on the welding intensity. Additionally, cleaning the gun and checking for wire feed issues form essential parts of daily upkeep. Always inspect the gun for signs of wear or damage before starting any welding job.

Troubleshooting Common Issues

When facing common issues with MIG welding guns, several straightforward solutions often come in handy. For erratic wire feeding, checking and adjusting the wire spool tension or replacing a dirty or damaged liner can solve the problem. If you encounter an inconsistent arc, consider replacing a worn contact tip or ensuring all electrical connections are secure and clean. To prevent overheating, especially in water-cooled guns, ensure proper rest periods and maintain the cooling system regularly.

Tips for Extending the Life of a MIG Welding Gun

To maximize the lifespan of a MIG welding gun, adopt a few key practices:

  • Regular Cleaning: Keeping the gun free from dust and debris prevents interference with electrical connections and cooling mechanisms.
  • Proper Storage: Storing the gun in a clean, dry environment helps to avoid corrosion and damage.
  • Appropriate Settings: Using the right welding settings for the material and job reduces stress on the gun.
  • Careful Handling: Avoid dropping or mishandling the gun to prevent internal damage.

By adhering to these maintenance and care practices, you can significantly extend the life of your MIG welding gun, ensuring reliable performance and reducing the need for costly repairs or replacements. Regular attention to these details can dramatically improve the efficiency and cost-effectiveness of your welding operations.

What is the maximum wire feed rate of a MIG welding gun?

The wire feed rate can reach up to 30 meters per minute (1200 inches per minute) in some advanced machines​​.

What materials are used for the contact tip of a MIG welding gun?

Contact tips are typically made of copper, sometimes chemically treated to reduce spatter​​.

How does a MIG welding gun prevent atmospheric contamination during welding?

A MIG welding gun uses shielding gases to protect the welding area from atmospheric gases like nitrogen and oxygen, which can cause fusion defects and embrittlement​​.

What are the key parts of a typical MIG welding gun?

A typical MIG welding gun includes a control switch, contact tip, power cable, gas nozzle, electrode conduit and liner, and a gas hose​​.

How does the wire feed mechanism in a MIG welding gun work?

The wire feed unit supplies the electrode to the work, driving it through the conduit to the contact tip. Feed rates typically range from 75 to 400 inches per minute for semi-automatic GMAW​​.
