What are the types of TIG welding torches available?

TIG welding torches come in various types, including air-cooled, water-cooled, and gas lens torches. These torches differ in their cooling methods and features, catering to different welding needs.

Overview of TIG Welding Torches

TIG (Tungsten Inert Gas) welding, also recognized as GTAW (Gas Tungsten Arc Welding), stands out as a preferred method for welding metals due to its precision and the high-quality results it delivers. This process particularly excels in welding stainless steel, aluminum, and other non-ferrous metals. At the heart of this welding method is the TIG welding torch, a tool that significantly influences the control and outcome of the welding operation.

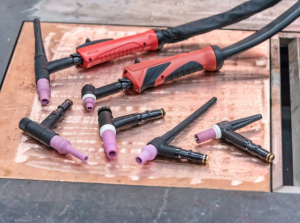

What are the types of TIG welding torches available

Definition and Function of TIG Welding Torches

A TIG welding torch serves as the critical conduit for delivering a controlled flow of inert gas, such as argon, to the weld zone. This torch not only houses a tungsten electrode that generates the arc for welding but also ensures a clean and high-quality weld by protecting the weld pool from atmospheric contaminants. The torch’s design allows for adjustable controls over gas flow and electric current, which are essential for welding across various angles, metal thicknesses, and achieving the desired weld penetration and bead aesthetics.

TIG welding torches come engineered to suit different welding environments and user preferences, offering features like:

  • Adjustable controls for precise gas flow and current adjustments.
  • Design variations catering to ergonomic needs and welding positions.
  • Cooling mechanisms (either air or water-cooled) to maintain optimal operation temperature.

Choosing the right TIG torch becomes pivotal in enhancing the welder’s accuracy, comfort, and control, directly impacting weld quality and operational efficiency.

Importance of Choosing the Right TIG Torch

Selecting the suitable TIG torch is not just about enhancing performance; it’s about matching the torch’s capabilities with the welding task at hand. The right torch choice can lead to significant improvements in weld quality, efficiency, and user satisfaction. For instance:

  • Air-cooled torches are best for lower amperage tasks, offering simplicity and ease of use without the need for a water cooler.
  • Water-cooled torches shine in high-amperage applications, providing superior cooling to handle prolonged welding sessions without overheating.

The decision factors include:

  • Application needs: Whether the task requires sustained high power or shorter, less intensive welding.
  • Budget considerations: Air-cooled torches tend to be more cost-effective and easier to set up.
  • Ergonomic requirements: A well-designed torch reduces fatigue, allowing for longer welding periods with greater comfort.

Ergonomics also play a crucial role, with features like flexible handles, lightweight designs, and easily adjustable controls making a significant difference in reducing welder fatigue and enhancing precision.

To illustrate, a typical air-cooled torch might handle up to 200 amps, suitable for most fabrication tasks, while water-cooled variants exceed 300 amps, ideal for industrial-level applications. The choice of a gas lens can further improve gas coverage, leading to cleaner welds with reduced contamination.

Choosing the correct TIG welding torch is a strategic decision that profoundly affects the welding process. By aligning the torch’s features with the task’s specific requirements, welders can consistently achieve superior quality welds. Advances in TIG torch technology continue to broaden the options available, offering enhanced precision, durability, and comfort in welding projects.

Types of TIG Welding Torches

TIG welding torches come in various types, each with its unique features, applications, and suited environments. These differences significantly influence the welding process’s efficiency, cost, and quality. Below is a comparative analysis of air-cooled, water-cooled, and gas lens TIG torches, detailing their features, applications, advantages, and limitations.

Air-Cooled TIG Torches

Features Applications Advantages Limitations
No external cooling system required; uses ambient air to cool. Ideal for light to medium fabrication work. Lower initial cost and simpler setup. Limited to lower amperage; typically up to 200 amps.
Ergonomically designed to reduce fatigue. Used in environments where adding a water cooler is impractical. Increased portability and ease of use. Can become hot during extended use, leading to discomfort.

Water-Cooled TIG Torches

Features Applications Advantages Limitations
Utilizes a water-cooling system to dissipate heat. Suited for high-amperage, industrial applications. Can handle amperages over 300 amps, allowing for prolonged use without overheating. Higher initial cost due to the need for a water cooler.
Typically more slender and flexible. Preferred for welding tasks requiring extended periods of operation. Reduced torch and handle heat, enhancing user comfort. More complex setup and maintenance requirements.

Gas Lens TIG Torches

Features Applications Advantages Limitations
Incorporates a gas lens to improve gas flow around the tungsten and weld pool. Ideal for welding jobs requiring improved gas coverage, such as stainless steel and aluminum welding. Enhanced weld pool visibility and gas coverage, leading to cleaner welds. Slightly higher cost due to the gas lens component.
Allows for a longer tungsten stick-out. Useful in tight or restricted access areas. Improved access to difficult welds and reduced contamination. Requires a bit more skill to optimize the benefits of improved gas flow.

Each type of TIG torch offers distinct benefits and comes with specific considerations regarding power requirements, cost implications, and operational efficiency. For example, air-cooled torches present a cost-effective and straightforward solution for lighter applications, where the simplicity and reduced setup time are crucial. In contrast, water-cooled torches, despite their higher upfront cost and complexity, provide essential benefits for high-amperage welding tasks, significantly improving productivity and comfort during long welding sessions. Gas lens torches, with their improved gas flow and weld pool visibility, offer substantial advantages in achieving high-quality welds, especially in challenging welding situations.

Selecting the right TIG torch involves considering these factors alongside the specific welding requirements, including material type, weld position, and the desired quality of the finished weld. The choice directly impacts the welding process’s effectiveness, safety, and the overall quality of the workpiece. Understanding these differences and making an informed decision can lead to significant improvements in welding performance and outcomes.


Selection Criteria for TIG Welding Torches

Choosing the right TIG welding torch is essential for achieving optimal welding results. Various factors come into play, from compatibility with welding machines to ergonomics and size considerations. Understanding these criteria ensures the selection of a torch that not only matches the welding requirements but also enhances the welding experience.

Compatibility with Welding Machines

The first step in selecting a TIG torch is ensuring it is compatible with the welding machine you intend to use. Compatibility affects the torch’s ability to handle the machine’s output and connect seamlessly with its power source and controls. Most TIG torches use a standard connection, but variations exist, especially with newer or specialized welding machines. For instance, machines offering advanced features like pulse welding require torches capable of supporting these functions.

It’s vital to check the connector type (DINSE, Tweco, etc.), the amperage capacity, and whether the torch supports the machine’s features such as remote control capabilities. Using a torch that matches the machine’s specifications ensures efficient power use and prevents equipment damage. For example, a machine with a maximum output of 250 amps requires a torch rated for at least the same amperage to avoid overheating and potential failure.

Welding Amperage and Torch Cooling Needs

The welding amperage significantly influences the choice between air-cooled and water-cooled TIG torches. Air-cooled torches are typically suitable for applications up to 200 amps, beyond which water-cooled torches become necessary due to their superior cooling efficiency. Selecting the right cooling method is crucial for maintaining the torch’s longevity and performance.

Water-cooled torches, although more complex and expensive due to the additional cooling equipment, allow for continuous high-amperage welding without the risk of overheating. This makes them ideal for industrial applications where welding operations are extensive and demand high power. In contrast, air-cooled torches offer simplicity and mobility for lower amperage tasks, making them perfect for light fabrication and repair jobs.

Ergonomics and Torch Size

Ergonomics play a pivotal role in selecting a TIG torch. A torch with an ergonomic design minimizes hand and wrist fatigue, allowing for longer welding sessions with greater comfort and control. Features such as a flexible head, lightweight construction, and a comfortably shaped handle can significantly impact the welder’s productivity and welding quality.

The size of the torch also matters, especially when working in confined spaces or on intricate pieces. Smaller torches offer better maneuverability and access to tight areas, while larger torches may provide more power and cooling capacity for extensive welding tasks. Choosing a torch that balances size with functionality and comfort is key to achieving precise welds and reducing strain on the welder.

Selecting the right TIG welding torch involves a careful consideration of compatibility with welding machines, the required welding amperage, and the specific cooling needs of the torch, alongside ergonomic factors and size. By prioritizing these criteria, welders can ensure they choose a torch that not only fits their welding needs but also enhances their welding experience, leading to better quality welds and increased productivity.

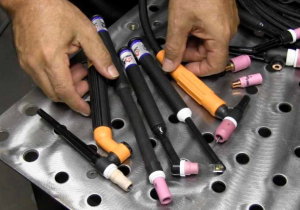

What are the types of TIG welding torches available

Maintenance and Care for TIG Welding Torches

Proper maintenance and care of TIG welding torches are crucial for ensuring their performance and longevity. Regular maintenance not only prevents common issues but also saves costs related to replacements and repairs. Here’s a detailed look at how to keep your TIG torch in top condition and troubleshoot common problems.

Routine Maintenance Tips

Regular Inspection and Cleaning: Before and after each use, inspect your TIG torch for any signs of wear or damage. Check the collet, collet body, and back cap for tightness and ensure the gas nozzle is clean and free of any obstructions. A clean torch ensures optimal gas flow and arc stability, critical for high-quality welds.

Proper Handling: Always handle the torch carefully to prevent any damage to its parts. Avoid kinking the cable, as this can cause internal wire breaks leading to poor electrical conductivity and heating issues.

Replacing Consumables: Replace consumables, such as the tungsten electrode, collet, and nozzle, at the first sign of wear. Using worn-out consumables can significantly degrade the weld quality. For instance, a worn tungsten can create an unstable arc, leading to poor welds.

Correct Assembly: Ensure that all parts of the torch are correctly assembled and securely fastened. A loosely assembled torch can lead to gas leaks and ineffective cooling, which may damage the torch over time.

Regular Cooling System Checks: For water-cooled torches, regularly check the coolant level and the pump’s operation. Ensure there are no leaks in the cooling system. A well-maintained cooling system prevents overheating and prolongs the torch’s lifespan.

Troubleshooting Common Issues

Arc Instability: If you notice the arc is unstable, check the tungsten for proper grinding and shape. Also, verify that the gas flow is consistent and the consumables are not worn out. Replacing or adjusting these components often resolves arc stability issues.

Overheating Torch: Should the torch overheat, first ensure that you are not exceeding its amperage rating. For air-cooled torches, overheating may indicate a need for a switch to a water-cooled system for high-amperage welding. In water-cooled torches, check for blockages in the cooling system or a malfunctioning coolant pump.

Gas Leaks: Detecting a decrease in gas efficiency or hearing a hissing sound might indicate a gas leak. Check all connections and fittings for tightness. Applying a soapy water solution can help identify the leak source, which usually requires tightening or replacing the faulty component.

Poor Weld Quality: If weld quality declines, assess the condition of your consumables, the cleanliness of the torch, and the correct assembly of all parts. Often, simply cleaning the torch or replacing consumables can restore weld quality.

By adhering to these routine maintenance tips and knowing how to troubleshoot common issues, welders can significantly enhance their TIG torch’s performance and durability. Investing time in regular care not only ensures consistent, high-quality welds but also extends the life of your welding equipment, ultimately leading to more efficient and cost-effective welding operations. Regular maintenance and attentiveness to the torch’s condition allow for a smoother welding process, reducing downtime and increasing productivity.

Innovations and Technological Advancements in TIG Torches

The TIG welding industry has witnessed significant technological advancements that have transformed TIG torches, enhancing both their performance and usability. These innovations not only improve the welding process but also contribute to higher efficiency, better weld quality, and increased comfort for the welder.

Latest Features in Modern TIG Torches

Integrated Controls: Modern TIG torches now come equipped with integrated finger or foot controls, allowing welders to adjust amperage on the fly without stopping the weld. This feature significantly enhances precision and control, enabling adjustments to be made mid-weld for optimal results.

Flexible Heads: The introduction of flexible torch heads has been a game-changer, providing the ability to adjust the angle of the torch to access tight or awkward spaces. This flexibility improves welder comfort and significantly increases the quality of welds in challenging positions.

Advanced Cooling Systems: Innovations in cooling systems, particularly for water-cooled torches, have improved efficiency and allowed for longer welding periods without overheating. These systems now more effectively manage heat, extending the torch’s lifespan and reducing downtime for maintenance.

Lightweight and Ergonomic Designs: There’s been a focus on reducing the weight and improving the ergonomics of TIG torches. Lighter materials and better-designed handles reduce fatigue, allowing welders to operate more comfortably for extended periods.

Quick-Change Consumable Systems: Newer TIG torches feature systems that allow for quick changes of consumables, reducing the time and effort needed for maintenance and adjustments. This feature streamlines the welding process, enhancing productivity.

Impact of Technology on Performance and Usability

The technological advancements in TIG torches have had a profound impact on their performance and usability:

Enhanced Weld Quality: With features like integrated controls and flexible heads, welders can achieve greater precision and access, resulting in higher quality welds. These improvements have made it easier to work with a variety of metals and thicknesses, broadening the range of applications for TIG welding.

Increased Efficiency: Innovations such as quick-change consumable systems and advanced cooling technologies have significantly reduced downtime. Welders can now operate more efficiently, with less time spent on adjustments and maintenance.

Improved Welder Comfort and Safety: Ergonomic designs and lighter materials have greatly reduced the physical strain on welders, lowering the risk of repetitive strain injuries. Additionally, the enhanced control features and cooling systems minimize the exposure to heat and fumes, further improving the safety of the welding environment.

Cost Savings: While the initial investment in modern TIG torches may be higher, the improvements in efficiency, reduced maintenance costs, and longer lifespan of the equipment lead to significant cost savings over time. The ability to produce higher quality welds with fewer defects also reduces waste, further contributing to cost effectiveness.

In conclusion, the continuous innovation and technological advancements in TIG welding torches are setting new standards for what welders can achieve. These developments not only enhance the capabilities of the welders but also contribute to a safer, more efficient, and cost-effective welding process. As technology continues to evolve, we can expect further enhancements that will continue to push the boundaries of TIG welding performance and usability.

How does the cooling method affect the power capacity of TIG torches?

Air-cooled torches are suitable for lower amperage welding, typically up to 200 amps. In contrast, water-cooled torches can handle amperages exceeding 300 amps, making them ideal for high-amperage applications.

What is the cost difference between air-cooled and water-cooled TIG torches?

Air-cooled torches are generally more cost-effective initially due to their simpler design. Water-cooled torches tend to have a higher upfront cost due to the additional cooling equipment required.

How do flexible torch heads impact the efficiency of TIG welding torches?

Flexible torch heads allow for better maneuverability, enabling welders to access tight or awkward spaces with ease. This feature significantly improves the efficiency and quality of welds in challenging positions.

Are there specific torch sizes suitable for different welding applications?

Yes, smaller torches offer better maneuverability and are ideal for confined spaces or intricate workpieces. Larger torches may provide more power and cooling capacity, making them suitable for extensive welding tasks.

What is the typical lifespan of TIG welding torches?

The lifespan of TIG torches depends on factors like usage and maintenance. With proper care, air-cooled torches can last several years, while water-cooled torches can have a longer lifespan due to their efficient cooling systems.
