Choose based on project complexity and material. MIG for speed, TIG for precision.
MIG Welding
Overview of MIG Welding
MIG welding, or Gas Metal Arc Welding (GMAW), is a widely used welding process that involves the use of a continuous consumable electrode wire. This wire, often made of the same material as the workpiece, is fed through a welding gun. Simultaneously, an inert shielding gas, such as argon or a mixture of argon and carbon dioxide, is supplied to protect the weld zone from atmospheric contamination. The electric arc generated between the electrode wire and the workpiece melts the wire and the base metal, forming a strong bond when they solidify.
Advantages of MIG Welding
Ease of Use: MIG welding is renowned for its user-friendliness, making it accessible for beginners and professionals alike. The process relies on automatic wire feeding, reducing the need for precise manual control.
High Welding Speed: The continuous wire feed allows for faster welding compared to some other methods. This speed makes MIG welding well-suited for production environments.
Versatility: MIG welding can be applied to a wide range of materials, including carbon steel, stainless steel, and aluminum. This versatility is valuable in various industries.
Less Skill Demanding: While skill is essential, MIG welding demands less manual dexterity and finesse than other methods like TIG welding.
Minimal Weld Cleanup: The process produces minimal slag, reducing the need for extensive post-weld cleaning and resulting in efficient work.
Disadvantages of MIG Welding
Weld Aesthetics: MIG welds may not always exhibit the same level of visual appeal as TIG welds due to the larger weld bead formed during the process.
Precision Limitations: Intricate and precise welding tasks may be better suited for methods like TIG welding, as MIG welding can lack the same level of precision.
Joint Complexity: Some complex joint configurations may pose challenges for MIG welding, necessitating alternative methods.
Surface Preparation: Adequate surface preparation is crucial; contaminants like rust, oil, or dirt can negatively impact the quality of MIG welds.
Appropriate Applications for MIG Welding
Automotive Repair: MIG welding’s speed and versatility make it ideal for repairing automotive body panels, exhaust systems, and chassis components1.
Fabrication: MIG welding is commonly used in the fabrication of metal structures, frames, and components for various industries2.
Heavy Equipment Manufacturing: In the production of heavy machinery and equipment, MIG welding ensures robust and reliable joints3.
General Maintenance: MIG welding is a go-to choice for routine repair and maintenance tasks in industrial settings4.
Farm Equipment: The agricultural sector benefits from MIG welding’s strength and efficiency in repairing and constructing farm machinery5.
Cost Considerations
Equipment Costs: MIG welding machines generally have a more affordable upfront cost compared to other welding processes, making it an attractive option for those on a budget.
Consumables: While the continuous electrode wire and shielding gas incur ongoing costs, they are relatively economical compared to some other welding methods.
Power Consumption: It’s worth noting that MIG welding tends to consume more power compared to processes like TIG welding.
TIG Welding
Overview of TIG Welding
TIG welding, also known as GTAW (Gas Tungsten Arc Welding), is a precise and versatile welding process. In TIG welding, a non-consumable tungsten electrode generates the electric arc, and a separate filler metal is added manually, if needed. The weld zone is protected from contamination by an inert gas, typically argon or helium. This process produces high-quality welds with exceptional aesthetics and integrity.
Advantages of TIG Welding
Superior Aesthetics: TIG welding is renowned for producing visually appealing welds with precise control over bead size and appearance.
Exceptional Precision: The process allows for intricate and delicate welding, making it ideal for artistic and detailed work.
Clean and Contaminant-Free Welds: The shielding gas effectively prevents atmospheric contamination, resulting in high-purity welds.
Weld Strength: TIG welds often exhibit superior joint strength and durability, especially when proper techniques are employed.
Disadvantages of TIG Welding
Complex Process: TIG welding demands a higher level of skill and hand-eye coordination due to the need for simultaneous control of the torch, filler rod, and foot pedal.
Slower Welding Speed: The meticulous nature of TIG welding translates to slower welding speeds compared to processes like MIG welding.
Limited Thickness: TIG welding might not be ideal for thicker materials due to its slower deposition rate.
Sensitivity to Wind: Wind and drafts can disrupt the shielding gas protection, potentially compromising the quality of the weld.
Appropriate Applications for TIG Welding
Aerospace and Aviation: TIG welding’s precision and strength make it a preferred choice for critical components in aerospace engineering1.
Fine Art and Sculpture: Artists favor TIG welding for its ability to create intricate welds without compromising aesthetics2.
Medical Equipment: TIG welding is used in the fabrication of medical instruments and devices where cleanliness and precision are paramount3.
High-Purity Welds: Industries requiring high-purity welds, such as semiconductor manufacturing, rely on TIG welding for contaminant-free joints4.
Cost Considerations
Equipment Costs: TIG welding equipment tends to be more expensive than MIG welding equipment due to the complexity of the process and the need for specialized components.
Consumables: While the tungsten electrode is a non-consumable, filler metal rods are additional costs. These rods can be made from various materials to match the base metal.
Labor Intensive: The slower welding speed and manual dexterity required contribute to increased labor time and potential costs.
Welding Machine Selection Criteria
Skill Level and Experience
Beginner-Friendly Machines: For those new to welding, choosing a machine with user-friendly controls and presets can ease the learning curve1.
Advanced Features: Experienced welders might prefer machines with advanced settings that allow fine-tuning of parameters for specific applications2.
Training and Familiarity: Selecting a machine aligned with your skill level ensures efficient and high-quality welding results.
Type of Projects
Small-Scale Projects: Hobbyists and DIY enthusiasts can opt for compact machines suitable for smaller projects3.
Industrial Applications: Large-scale projects demand heavy-duty machines with higher power output and duty cycles4.
Versatility: Choosing a machine that accommodates a range of projects helps prevent the need for multiple welders.
Materials to be Welded
Metal Compatibility: Ensure the machine is capable of welding the specific metals you intend to work with, such as stainless steel, aluminum, or mild steel5.
Multi-Process Options: Some machines support multiple welding processes, allowing you to work with different materials using a single unit6.
Desired Weld Quality
Aesthetic Requirements: Projects with high aesthetic demands, such as art and sculpture, benefit from machines that offer precise control over weld appearance7.
Structural Integrity: Industries like construction require machines that deliver strong and reliable welds for structural integrity8.
Quality Control: Opt for machines that allow you to consistently achieve the desired weld quality, minimizing rework and ensuring consistency.

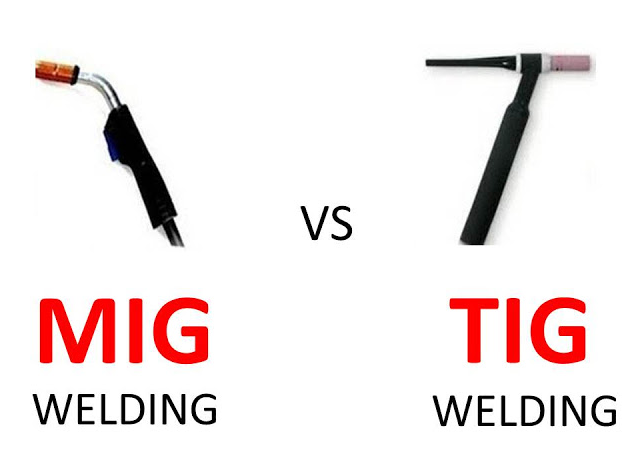

Comparison between MIG and TIG Welding
Welding Process and Techniques
MIG Welding: MIG welding employs a continuously fed consumable electrode wire to create an electric arc between the electrode and the workpiece. The wire serves as both the electrode and the filler material. This process is semi-automatic, offering ease of use and relatively straightforward technique1.
TIG Welding: TIG welding utilizes a non-consumable tungsten electrode to generate an electric arc, while a separate filler metal can be manually added. The welding torch and filler rod are controlled independently, demanding higher skill and precision2.
Welding Speed and Efficiency
MIG Welding: Known for its high welding speed, MIG welding is efficient for large-scale projects and production environments3.
TIG Welding: TIG welding is generally slower due to the manual addition of filler metal and the intricate control required for precise welds4.
Weld Appearance and Cleanliness
MIG Welding: While MIG welds are efficient and strong, the larger weld bead might result in less visually appealing welds compared to TIG welding5.
TIG Welding: TIG welding produces highly aesthetic welds with minimal spatter, making it ideal for applications where appearance matters6.
Joint Strength and Integrity
MIG Welding: MIG welds offer excellent joint strength, making them suitable for structural applications7.
TIG Welding: TIG welds are known for their exceptional strength and integrity, making them suitable for critical applications like aerospace and medical equipment8.
Pros and Cons Analysis
MIG Welding Pros and Cons
Pros:
Ease of Use: MIG welding’s straightforward process and automatic wire feeding make it accessible to beginners1.
High Welding Speed: The continuous wire feed allows for rapid welding, making it efficient for production work2.
Versatility: MIG welding can handle various materials and thicknesses, adding to its flexibility3.
Minimal Cleanup: The process produces less slag and spatter, reducing post-weld cleanup efforts4.
Strong Joints: MIG welds often exhibit good joint strength, suitable for structural applications5.
Cons:
Weld Appearance: MIG welds can lack the clean and aesthetically pleasing look of TIG welds6.
Precision Limitations: Intricate and delicate welding tasks might be better suited for other methods7.
Thicker Materials: MIG welding might struggle with thicker materials due to its heat input8.
Complex Joint Configurations: Certain complex joint designs can be challenging to weld using the MIG process9.
TIG Welding Pros and Cons
Pros:
Superior Weld Aesthetics: TIG welds are known for their precise and attractive appearance, making them suitable for artistic work10.
Exceptional Precision: The ability to control both the arc and filler metal results in highly accurate welds11.
Clean and Contaminant-Free: TIG welding produces welds with minimal spatter and contamination, ensuring high purity12.
Joint Strength: TIG welds offer excellent strength and integrity, crucial for critical applications13.
Cons:
Complex Process: TIG welding demands higher skill levels and dexterity due to the need for simultaneous control of various elements14.
Slower Welding Speed: The meticulous nature of TIG welding translates to slower welding speeds15.
Filler Metal Handling: Manually adding filler metal can be time-consuming and demanding16.
Wind Sensitivity: The shielding gas can be disrupted by drafts, affecting the quality of the weld17.
Key Differences in Welding Equipment
Equipment Setup and Components
MIG Welding:
Wire Feeder: MIG welding machines are equipped with a wire feeder that continuously supplies the consumable electrode wire1.
Spool Gun (Optional): For aluminum welding, a spool gun may be required to prevent wire tangling2.
Gas Regulator: A regulator controls the flow of shielding gas to protect the weld zone3.
Contact Tip: The contact tip guides the electrode wire and conducts the welding current4.
TIG Welding:
Torch and Electrode Holder: TIG welding employs a torch that holds the tungsten electrode and delivers shielding gas5.
Foot Pedal: A foot pedal controls the welding current, allowing for precise adjustments during welding6.
Gas Valve: The operator controls the gas flow using a valve on the torch7.
Gas and Filler Metal Usage
MIG Welding:
Shielding Gas: MIG welding utilizes inert gases like argon or mixtures to shield the weld zone9.
Filler Metal: The consumable electrode wire also acts as the filler metal in MIG welding10.
TIG Welding:
Shielding Gas: TIG welding employs inert gases like argon or helium to protect the weld11.
Power Requirements
MIG Welding:
Power Output: MIG welding machines require a consistent power output to maintain the arc13.
Voltage Settings: Operators adjust voltage settings to control the heat input14.
TIG Welding:
Polarity Selection: The choice of polarity affects the weld’s characteristics and penetration16.
Budget Considerations
Initial Investment Costs
MIG Welding:
Machine Cost: Entry-level MIG welding machines are generally more affordable than TIG machines1.
Accessories: Some MIG welding packages include essential accessories like regulators, hoses, and torches2.
TIG Welding:
Machine Cost: TIG welding machines often have a higher initial cost due to their complexity and precision3.
Accessories: TIG welding setups may require additional purchases, such as foot pedals and torch consumables4.
Long-Term Operational Costs
MIG Welding:
Consumables: While electrode wire and shielding gas are ongoing costs, they are relatively affordable5.
Maintenance: MIG welding machines require regular maintenance, such as replacing consumables and checking for wire feed issues6.
TIG Welding:
Maintenance: Regular maintenance includes tungsten electrode replacement and maintaining the torch components8.
Return on Investment
Production Efficiency: MIG welding’s higher speed and ease of use can lead to increased productivity, potentially resulting in a quicker return on investment9.
Quality and Precision: TIG welding’s superior weld quality and precision can lead to higher-quality products and increased customer satisfaction10.
Versatility: Investing in a welding machine that aligns with the variety of projects you undertake can improve your ability to take on different jobs11.
Which welding process is more efficient?
What's the cost difference between MIG and TIG machines?
- Initial investment: MIG is generally cheaper. TIG machines cost more upfront.
- Consumables: TIG requires pricier tungsten electrodes and filler rods.
