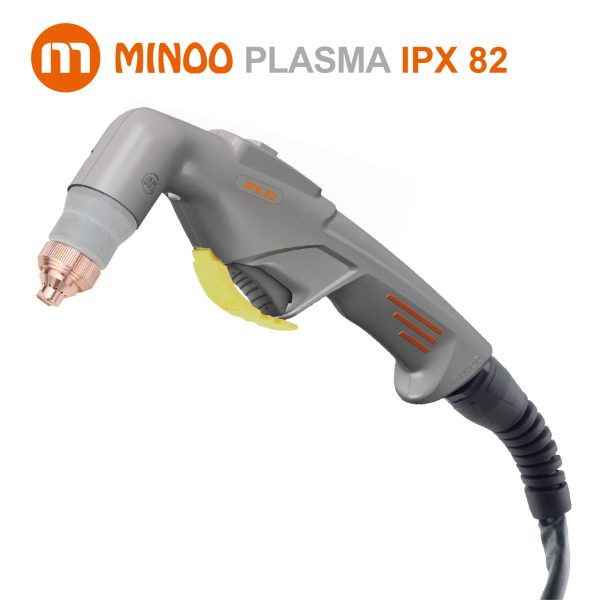

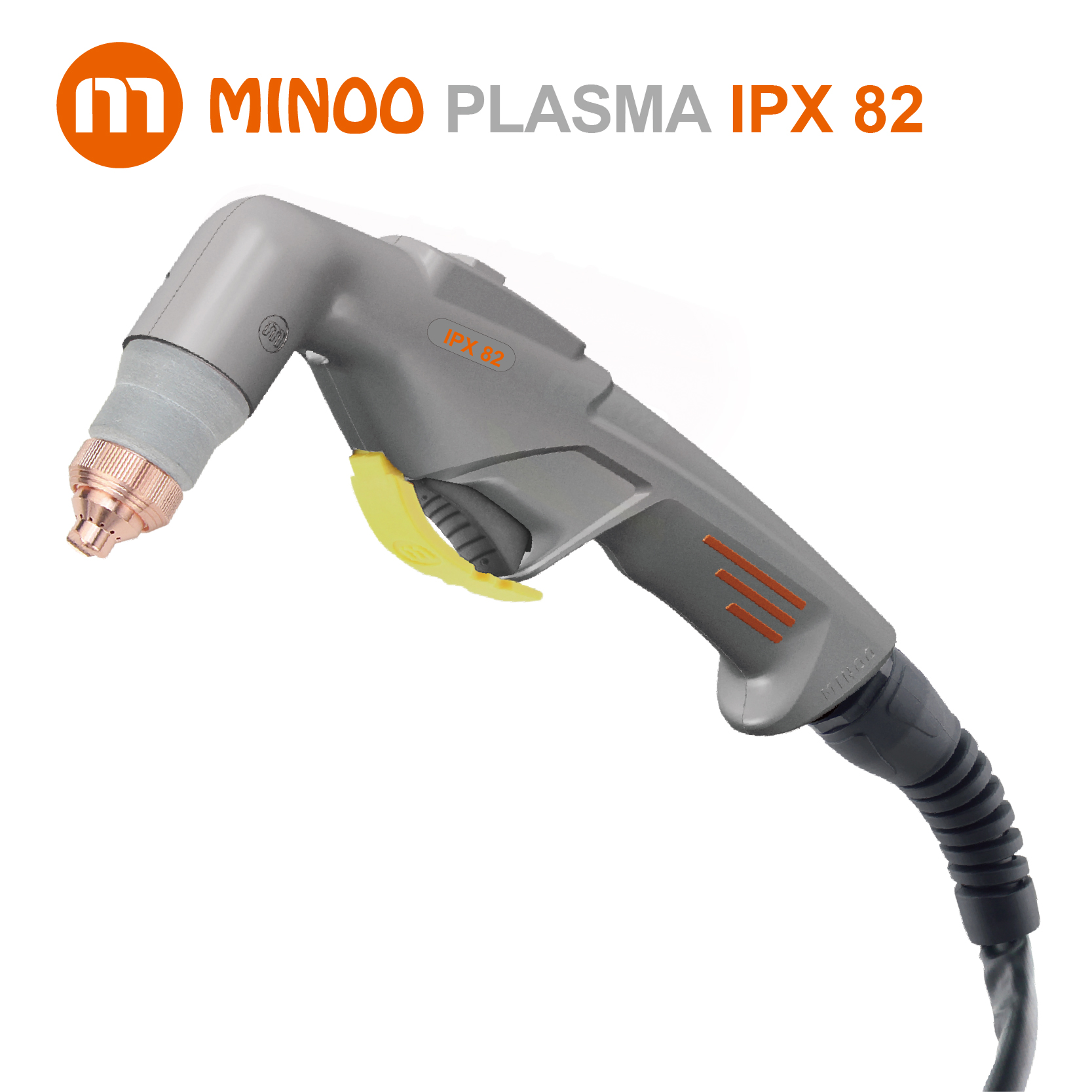

IPX 82

Current：80A With NHF
Duty Cycle：60%
Gas Pressure：4.4~5.0 BAR
Gas Flow：150~160L/min
Post Flow：80s
Recommended Value：25mm(500mm/min)

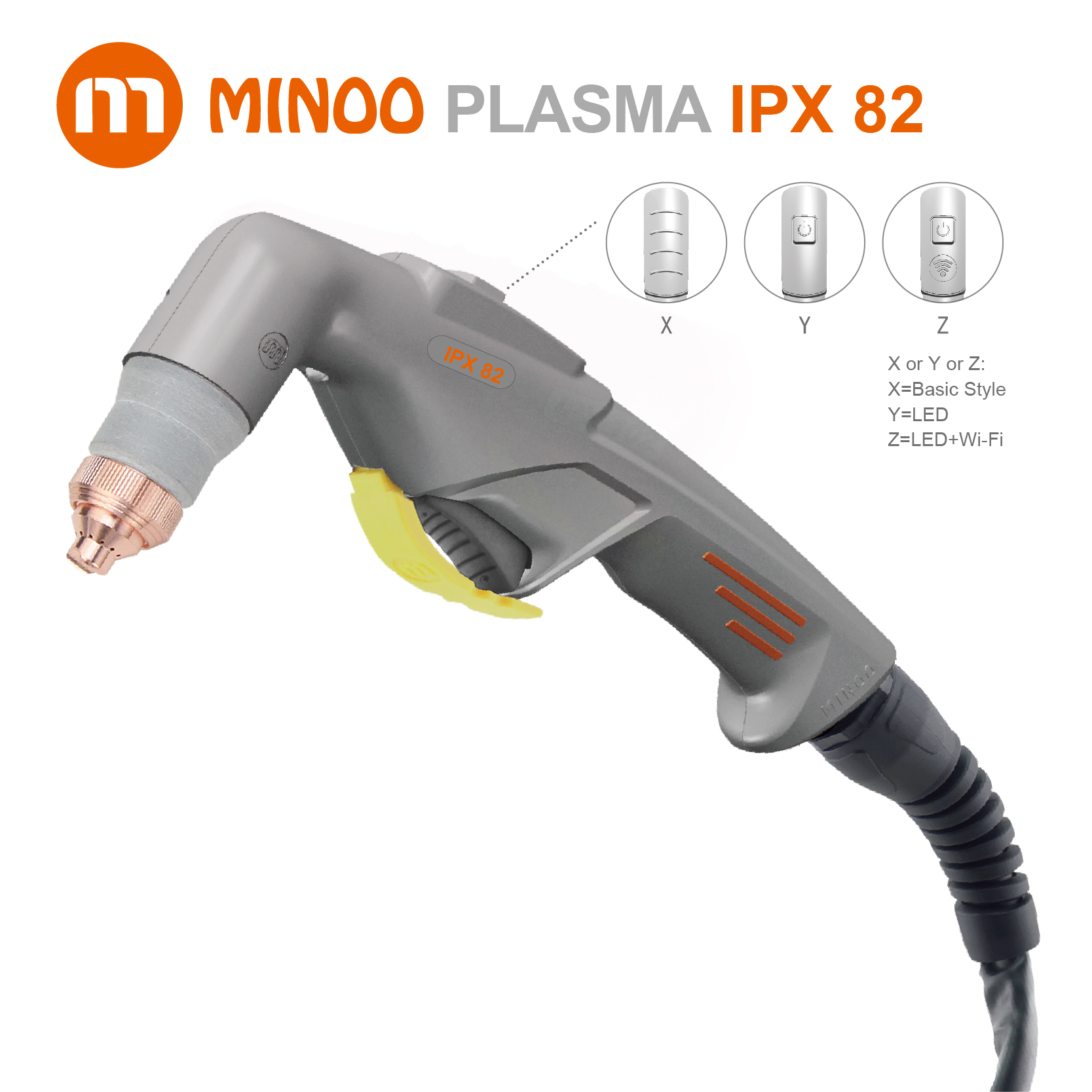

Procurement code+Optional accessory (X or Y or Z)

A    AVT2906+(?)               6M        Pneumatic-electric Integggrated/2Wires

A    AVT2907+(?)             12M        Pneumatic-electric Integggrated/2Wires

B    AVT2908+(?)               6M        Gas electric Separation/2Wires

B    AVT2909+(?)             12M        Gas electric Separation/2Wires

C   AVT2904+(?)                6M        Central Adapter/2Wires

C   AVT2905+(?)              12M        Central Adapter/2Wires

D   AVT20904+(?)             6M        Central Adapter/4Wires

D   AVT20905+(?)           12M        Central Adapter/4Wires

E   AVT2904-00+(?)         6M        Central Adapter/Coaxial

E   AVT2905-00+(?)       12M        Central Adapter/Coaxial
