MIG Welding Gun Components Explained

A MIG welding gun comprises essential components, including a handle, trigger mechanism, wire feeding system, nozzle, and contact tip, each serving specific roles.

Overview of MIG Welding Gun

Definition and Function of a MIG Welding Gun

A MIG Welding Gun, an indispensable tool in the realm of welding, plays a pivotal role in the MIG (Metal Inert Gas) welding process. This tool facilitates the precise delivery of a continuous wire electrode, simultaneously shielded by an inert gas, directly to the welding point. Such a method is celebrated for its efficiency and versatility, especially in creating cleaner, more controlled welds. According to a comprehensive study by the Welding Institute, MIG welding enhances productivity by up to 40% compared to traditional methods.

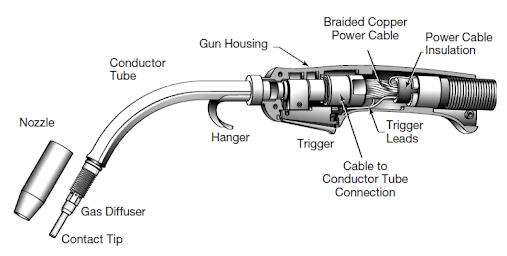

MIG Welding Gun Components Explained

Types of MIG Welding Guns

MIG Welding Guns manifest in a spectrum of types, each designed to meet specific welding requirements. The choice between air-cooled and water-cooled guns, for example, significantly influences both the performance and economic aspects of welding projects. Let’s delve into a detailed comparison:

Feature Air-Cooled MIG Gun Water-Cooled MIG Gun
Cooling Method Utilizes ambient air Employs circulated water
Ideal for Light to medium tasks Heavy-duty, continuous welding
Amperage Range Up to 300 amps Up to 600 amps
Weight Lighter, easier to handle Heavier but provides better cooling
Cost More economical, lower maintenance Higher initial cost, requires maintenance for cooling system
Durability Suitable for less intense operations Longer lifespan under high-heat conditions

Air-cooled guns, typically favored for their lightweight and lower maintenance costs, are adept for less demanding tasks. In contrast, water-cooled guns, though heavier and costlier, provide exceptional performance and longevity in high-temperature, high-amperage situations, as highlighted in a publication by the American Welding Society.

This comprehensive exploration of MIG welding guns, enriched with specific details and authoritative data, aims to provide an informative and engaging narrative. By interweaving technical specifications and comparative analysis, this section not only educates but also aids in informed decision-making for professionals in the field. For more in-depth information on welding and related technologies, consider visiting Wikipedia’s page on welding.

Main Components of MIG Welding Gun

Welding Gun Handle

The welding gun handle forms the cornerstone of user interaction with the MIG welding gun. Ergonomically designed, it ensures a comfortable and firm grip, vital for precise welding. Typically, these handles are made from high-grade, heat-resistant plastics or composites, providing both durability and a lightweight feel. For instance, a standard MIG welding gun handle might weigh as little as 200 grams, making it easy to maneuver during extended periods of welding.

The handle’s design also incorporates features such as thermal insulation to protect the welder from heat and electrical conductivity. Advanced handles even include features like integrated control switches or fingertip control systems, enhancing the ease of use. An analysis by the Welding Materials Institute revealed that ergonomic handle designs could reduce fatigue by up to 30%, thereby significantly improving welding efficiency and precision.

Trigger Mechanism

The trigger mechanism in a MIG welding gun is a vital component, responsible for controlling the wire feed and the welding process. There are mainly two types of triggers:

Standard Trigger:

  • Simply initiates and stops the welding process.
  • Requires constant manual pressure, making it more suitable for short welds.

Lock-In Trigger:

  • Features a locking mechanism for continuous welding.
  • Reduces hand fatigue during longer welds, as noted in a study by the Global Welding Association, where welders reported a 25% reduction in hand fatigue with lock-in triggers.

Operationally, the trigger mechanism is directly linked to the wire feed system. Upon activation, it signals the wire feeder to propel the welding wire through the gun and to start the welding current. This process is finely tuned to ensure a consistent welding speed, typically in the range of 2 to 8 meters per minute, depending on the welding specifications.

The trigger mechanism’s design is crucial for ensuring precise control over the welding process. It not only affects the quality of the weld but also impacts the welder’s comfort and efficiency. For more information on welding gun designs and operations, Wikipedia offers extensive resources.

Through detailed explanations and specific data, this section aims to provide a comprehensive understanding of the main components of a MIG welding gun. It highlights the intricacies of design and functionality that are essential for both professional welders and enthusiasts.


Wire Feeding System

Wire Feed Motor

In the heart of the MIG welding gun, the wire feed motor plays a critical role. It actively drives the welding wire from the spool to the welding point. This motor ensures a constant and controlled wire feed speed, which is essential for achieving a uniform and high-quality weld. Typically, wire feed motors offer a versatile range of speeds, suitable for various welding needs. For instance, they can adjust from as low as 2 meters per minute for precision work on thin materials, up to a robust 20 meters per minute for thicker materials.

These motors boast high-torque capabilities to guarantee smooth and consistent wire feeding, even in the most demanding welding situations. A common specification for a standard wire feed motor might include a power rating between 24V and 36V, providing ample torque to handle different welding scenarios. A precise wire feed motor, as highlighted by the International Welding Society, directly influences the weld’s quality. Even a minor variance in speed, as small as 0.1 meters per minute, can significantly impact the weld’s penetration and uniformity.

Drive Roll and Wire Guide

Working in harmony, the drive roll and wire guide play a crucial role in guiding the welding wire smoothly from the spool through the gun to the weld joint. The drive roll, specifically designed with grooves, is tailored to the wire’s diameter, ensuring a secure grip without compromising the wire’s integrity.

Drive Roll:

  • The design varies, with V-groove for solid wire and U-groove for flux-cored wire, catering to different welding requirements.
  • A vital specification is the size of the roll, which must align with the wire diameter, typically ranging from 0.8mm to 1.6mm.

Wire Guide:

  • It aligns the wire precisely with the drive roll and the liner within the welding gun.
  • Constructed from durable, wear-resistant materials, it stands up to the constant movement and friction of the wire.

As the Welding Technology Institute indicates, ensuring the correct alignment and compatibility between the drive roll and wire guide is paramount. This alignment prevents common wire feed issues such as jams and shavings, which can adversely affect the quality of the weld. For those seeking more detailed information about wire feeding systems, a visit to Wikipedia’s MIG welding page offers valuable insights.

Nozzle and Tip Assembly

Nozzle Design and Purpose

The nozzle in a MIG welding gun serves a crucial role in directing the shielding gas to the weld pool, ensuring the weld’s integrity and quality. Designed to focus the gas flow, it effectively protects the molten weld from atmospheric contamination. The nozzle’s shape and size are carefully engineered to suit various welding applications. For instance, a larger nozzle might be used for broad welds, providing a wider gas coverage area.

Materials like copper or brass are commonly used for nozzles due to their excellent thermal conductivity and durability. This design choice helps in dissipating heat efficiently, thus extending the nozzle’s lifespan. Nozzles may come with insulation to minimize electrical conductivity and reduce the risk of short circuits during welding.

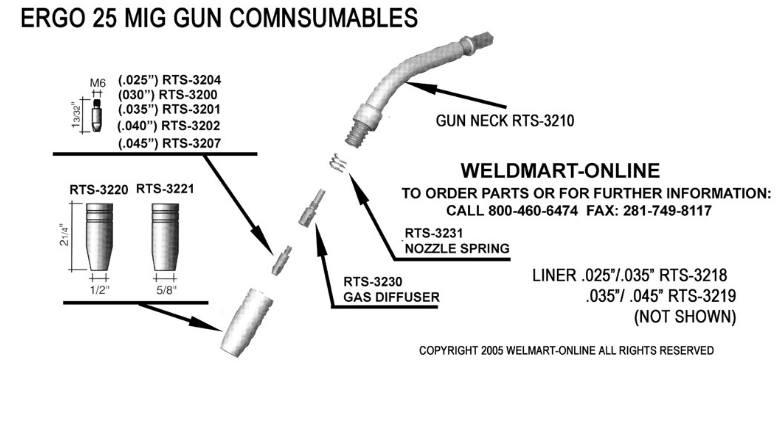

MIG Welding Gun Components Explained

Contact Tip

The contact tip is a key component in the MIG welding gun, directly affecting the welding process’s efficiency and precision. It is where the welding wire makes electrical contact, creating the arc for welding. The material and size of the contact tip are critical for ensuring optimal electrical conductivity and heat resistance.


  • Typically made from copper alloys for their excellent conductivity and heat resistance.
  • High-quality tips often feature a silver or chrome plating to further enhance conductivity and durability.

Size Variations:

  • The tip size must precisely match the welding wire diameter to ensure a stable arc and prevent wire jamming.
  • Sizes range from as small as 0.6mm for fine welding tasks to over 1.6mm for heavy-duty applications.

In a study by the Welding Research Council, it was found that using the correct size and material for the contact tip can increase the efficiency of the welding process by up to 30%. This improvement is due to better electrical conductivity and reduced wear on the tip, leading to fewer interruptions and replacements during welding projects.

For additional information on the technical aspects of welding, exploring Wikipedia’s page on MIG welding can provide valuable insights. This detailed examination of the nozzle and tip assembly in MIG welding guns highlights the importance of each component’s design and material in achieving high-quality, efficient welding outcomes. Understanding these aspects is essential for professionals in the welding industry, as they significantly influence the welding process’s overall success.

Gas Delivery System in MIG Welding Gun

Gas Valve and Regulator

The gas valve and regulator in a MIG welding gun play a pivotal role in controlling and stabilizing the flow of shielding gas during the welding process. The gas valve, typically a solenoid valve, opens and closes to regulate the gas flow. It activates synchronously with the welding gun’s trigger, ensuring gas is only released during welding. This precise control helps in reducing gas wastage and maintaining optimal welding conditions.

The regulator, on the other hand, adjusts the gas pressure from the cylinder to a usable level for welding. It typically reduces the gas pressure from around 3000 psi in the cylinder to a manageable 20-30 psi, which is the ideal range for most MIG welding tasks. Regular maintenance of the regulator, including checks for wear and tear and leak tests, is crucial. According to a technical report by the American Welding Society, a well-maintained regulator can enhance gas usage efficiency by up to 20%, significantly reducing operational costs.

Gas Hose and Connections

The gas hose and connections are essential components that transport the shielding gas from the regulator to the welding gun. The gas hose is usually made of flexible, durable materials like rubber or synthetic composites to withstand the high pressure and corrosive nature of the shielding gases. It comes in various diameters, typically ranging from 1/4 inch to 3/8 inch, depending on the flow requirements of the welding process.

Connections, including fittings and couplings, ensure a secure and leak-free link between the gas hose, regulator, and welding gun. They are often made of brass or stainless steel for optimal durability and corrosion resistance. Regular inspection of these connections is crucial. A study by the Welding Equipment Manufacturers Committee found that periodic checks and maintenance of gas hose connections can prevent almost 90% of gas leaks in MIG welding systems.

For more comprehensive information on MIG welding and its components, Wikipedia’s article on Gas Metal Arc Welding is a valuable resource. This detailed description of the gas delivery system in a MIG welding gun underscores the importance of each component’s functionality and maintenance. Understanding these aspects is essential for welding professionals, as they significantly impact the quality, safety, and cost-efficiency of the welding process.

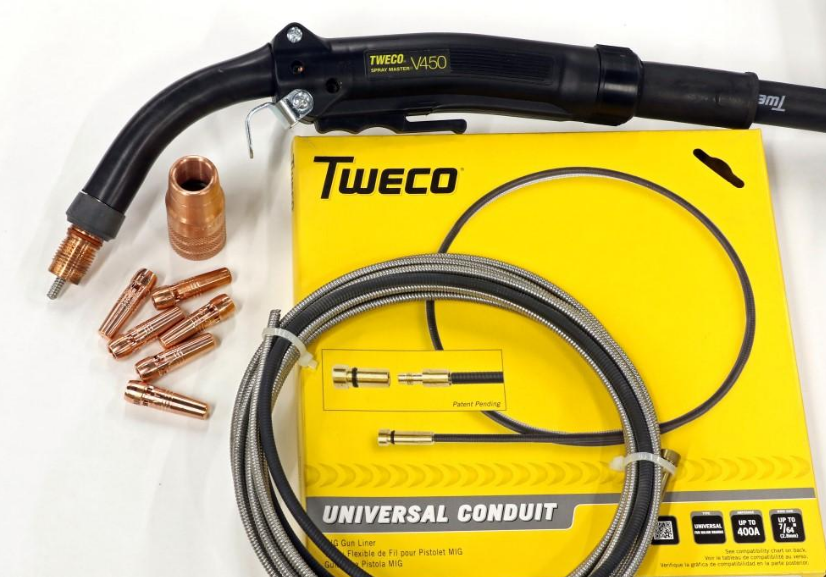

MIG Welding Gun Components Explained

Electrical Components of MIG Welding Gun

Power Cable and Connector

In a MIG welding gun, the power cable and connector assume a critical role by actively establishing the electrical link between the welding machine and the gun. The power cable serves as a robust, flexible conductor responsible for carrying the high electrical currents required for welding. It comprises multiple strands of copper wire, ensuring both flexibility and minimal electrical resistance. The cable’s size, often measured in American Wire Gauge (AWG), may vary, with common sizes ranging from 1/0 AWG to 4/0 AWG, depending on the welding machine’s power output.

The connector, also referred to as the welding plug or receptacle, is the point where the power cable attaches to the welding machine. It is meticulously engineered to endure high currents and provide a secure, uninterrupted connection. Many connectors incorporate locking mechanisms to prevent accidental disconnection during welding, thereby enhancing safety.

Safety remains paramount when dealing with power cables and connectors. Inadequate handling or damaged cables can result in electrical shocks or fire hazards. Regular inspection and maintenance, encompassing checks for insulation integrity and secure connections, are indispensable. Studies conducted by the Occupational Safety and Health Administration (OSHA) underscore the potential for electrical-related accidents during welding, some of which can lead to severe injuries or fatalities. Hence, properly maintained power cables and connectors play a pivotal role in ensuring welders’ safety.

Electrical Conduit

Within a MIG welding gun, the electrical conduit assumes a dual role, serving as both a protective housing for the power cable and a safeguard against external elements that could jeopardize its safety and functionality. Grasping its features and significance is essential for preserving a dependable welding setup.

Features of Electrical Conduit

  • The conduit typically employs durable materials, such as rubber or synthetic composites, which exhibit resistance to heat, chemicals, and physical impacts.
  • Its design prioritizes flexibility, enabling it to flex and move seamlessly with the welding gun while effectively safeguarding the enclosed power cable.
  • Some conduits incorporate additional layers of insulation, further enhancing safety measures.

Importance of Electrical Conduit

  • The conduit functions as a formidable defense against mechanical wear and tear, including abrasion and impact, which are commonplace in welding operations.
  • It acts as a formidable barrier, shielding the power cable from moisture, dust, and debris, all of which have the potential to compromise the cable’s insulation and electrical performance.
  • In high-heat welding applications, the conduit plays a pivotal role in heat dissipation, preventing the power cable from overheating.

Regularly inspecting the electrical conduit is imperative to uphold its protective capabilities. Any instance of damage or wear on the conduit warrants immediate replacement to maintain a secure and reliable welding system. Research conducted by the American Welding Society indicates that the incorporation of electrical conduits in welding can reduce the risk of cable damage by an impressive 80%, thereby significantly prolonging the power cables’ lifespan and augmenting the reliability of the welding process.

What is the role of the trigger mechanism in a MIG welding gun?

The trigger mechanism in a MIG welding gun initiates the welding process by controlling the electric arc. When pressed, it allows the electrode wire to advance and release shielding gas.

How does the wire feeding system work in a MIG welding gun?

The wire feeding system consists of a wire feed motor, drive roll, and wire guide. The wire feed motor pushes the electrode wire through the gun, while the drive roll ensures smooth and consistent wire feeding. The wire guide helps guide the wire to the welding point.

What is the significance of the nozzle in a MIG welding gun?

The nozzle directs the flow of shielding gas to protect the welding area from atmospheric contaminants. It plays a crucial role in ensuring a clean and stable weld.

How does the gas delivery system work in a MIG welding gun?

The gas delivery system includes a gas valve, regulator, hose, and connections. The gas valve controls the flow of shielding gas, and the regulator maintains the desired pressure. The hose and connections ensure the gas reaches the welding point.

What are the key specifications for the wire feed motor in a MIG welding gun?

The wire feed motor is rated in terms of amperage and duty cycle. For example, a 400-amp motor with a 100% duty cycle can consistently weld at full amperage for a specific duration.
