How to Achieve Consistent Welds with MIG Welding?

To achieve consistent welds with MIG welding, focus on precise setup, technique refinement, and routine equipment maintenance.

Setting Up for Consistency in MIG Welding

Achieving consistency in MIG welding begins with meticulous setup. A well-prepared welder equips themselves with the right tools and knowledge, ensuring each weld is as precise as the last. This process involves understanding the intricacies of the welding equipment and the materials at hand.

Ensuring Proper Equipment Configuration

The journey towards consistent welding starts with configuring your equipment correctly. Inspect the welding gun and cable, ensuring they are free from damage and properly connected. A well-maintained gun and cable are crucial for smooth and uninterrupted welding. Next, focus on the gas supply. For MIG welding, a common choice is a mixture of Argon and Carbon Dioxide. The gas flow rate typically ranges between 20-25 cubic feet per hour, but this can vary depending on the specific welding application and the environment. Regularly checking and adjusting the gas flow is vital for preventing porosity in the welds.

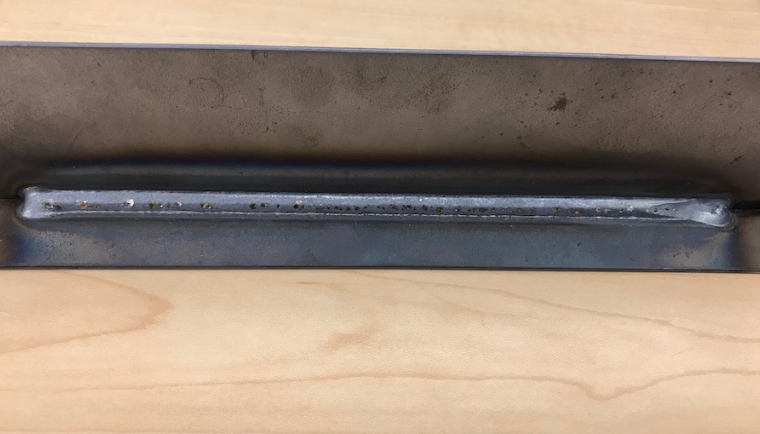

How to Achieve Consistent Welds with MIG Welding

The choice of wire is also paramount. For instance, a wire diameter of 0.030 inches is a versatile option for welding thin to medium thickness materials. Ensure the wire feed speed aligns with the welding current. For example, a speed of 200 inches per minute at a current of 100 amperes is a good starting point. This balance is crucial for achieving a stable arc and consistent weld penetration.

Selecting Appropriate Welding Parameters

Selecting the correct welding parameters is essential for achieving consistency. This selection process involves a detailed understanding of the welding material and the desired weld quality. For instance, welding mild steel requires a different approach compared to stainless steel or aluminum.

The thickness of the material dictates the power settings. Typically, a setting of 100 amps is suitable for 1/8 inch thick steel, while thicker materials may require up to 200 amps or more. It’s important to refer to a welding chart or guidelines specific to the material and thickness you’re working with.

In addition to power settings, travel speed plays a critical role. A speed that’s too fast can lead to incomplete fusion, while too slow a speed can cause excessive burn-through. A travel speed of approximately 12 inches per minute is a common starting point, but this should be adjusted based on the material thickness and welding position.

Fine-tuning these parameters is a continuous process. As you gain more experience, you’ll develop a sense for the subtle adjustments needed for different materials and conditions. Consistency in MIG welding is not just about setting up once; it’s about continually adapting and refining your approach with each weld.

In conclusion, setting up for consistency in MIG welding requires a blend of technical knowledge, practical skills, and continuous learning. By paying close attention to equipment configuration and welding parameters, and by regularly adapting to the material and task at hand, you can achieve high-quality, consistent welds every time.

Mastering the MIG Welding Technique

Mastering the MIG welding technique is a journey that combines skill, precision, and a deep understanding of the process. It’s not just about joining two pieces of metal; it’s about creating a strong, reliable bond that stands the test of time. This mastery involves fine-tuning various aspects like speed, angle, and bead appearance to perfection.

Optimizing Welding Speed and Gun Angle

To achieve mastery in MIG welding, you need to optimize both the welding speed and the gun angle. The welding speed affects the quality and strength of the weld. A speed too fast can lead to weak, under-penetrated welds, whereas a slow speed might cause excessive penetration and distortions. Ideally, for a material thickness of 1/8 inch, a welding speed of around 12 to 15 inches per minute is effective.

The gun angle also plays a crucial role. Holding the gun at a 10 to 15-degree angle towards the direction of welding helps in achieving better penetration and control over the weld bead. This angle ensures an even distribution of heat, reducing the likelihood of weak spots.


Achieving Consistent Bead Appearance

Consistent bead appearance is a hallmark of a skilled MIG welder. It indicates uniformity in welding technique and parameter settings. A well-formed bead should be evenly sized, smooth, and without excessive spatter. Achieving this requires a steady hand and an eye for detail. For instance, maintaining a consistent distance of approximately 3/8 inch between the nozzle and the workpiece ensures uniform heat distribution and arc stability.

In terms of appearance, a good weld bead on steel should have a slight crown and be about three times the width of the wire used. For a 0.030-inch wire, a bead width of about 0.090 inches is ideal. This size ensures adequate penetration without excessive heat input, which can warp the metal.

Incorporating these techniques into your welding practice requires patience and practice. Regularly experimenting with different speeds, angles, and materials helps in developing an intuitive understanding of how to achieve the best results. Remember, the goal is not just to create a weld, but to craft a weld that is as strong aesthetically as it is structurally.

By focusing on these aspects, you can elevate your MIG welding technique from mere proficiency to true artistry. It’s a journey that not only enhances the quality of your welds but also enriches your overall experience as a welder.

Maintaining Equipment for Reliable Welds

Reliable welds stem from well-maintained equipment. Regular and thorough maintenance not only extends the lifespan of your welding gear but also ensures consistency in your welding projects. It’s about taking proactive steps to keep everything in top working condition.

Routine Maintenance of Welding Equipment

Performing routine maintenance on your welding equipment is key to avoiding unexpected downtime and ensuring every weld is as good as the last. Here are some essential maintenance tips:

  • Inspect the Welding Gun: Regularly check for any signs of wear or damage. Replace any frayed wires or cracked handles as soon as you spot them.
  • Clean the Nozzle and Contact Tips: Build-up of spatter can obstruct the gas flow and affect the quality of the weld. Cleaning the nozzle and replacing contact tips when they show signs of wear helps maintain a stable arc.
  • Check the Gas Hoses: Look for cracks or leaks in the gas hoses. Even a small leak can significantly impact the shielding gas coverage, leading to poor quality welds.

Managing Wire Feed and Voltage Settings

Properly managing wire feed and voltage settings is crucial for achieving the desired weld quality. Here are some steps to ensure optimal settings:

  • Calibrate Wire Feed Speed: The speed at which the wire feeds into the weld pool directly impacts penetration and bead quality. For instance, a wire feed speed of around 200 inches per minute is suitable for a 0.030-inch wire diameter when welding mild steel.
  • Adjust Voltage Settings: The voltage setting determines the width and depth of the weld bead. A setting too high can lead to excessive spatter, while too low a setting causes poor penetration. For example, welding 1/8 inch thick steel typically requires a voltage setting around 18-20 volts.

Consistent attention to these aspects of equipment maintenance and setting management can greatly enhance the quality and reliability of your welds. It’s not just about fixing things when they break; it’s about keeping everything in the best possible condition to prevent problems before they start. This proactive approach saves time and money in the long run and elevates the standard of your welding work.

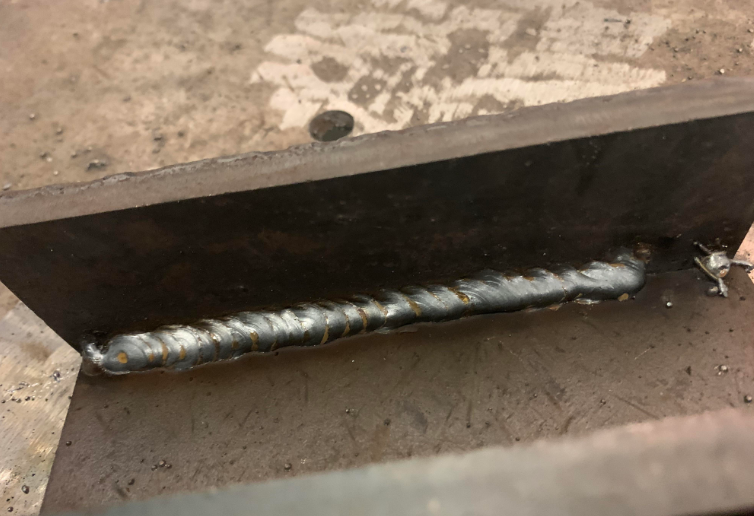

How to Achieve Consistent Welds with MIG Welding

Advanced Strategies for Consistent MIG Welding

Achieving consistency in MIG welding is a craft honed with experience and the application of advanced strategies. These strategies involve adapting to various materials and thicknesses and employing best practices for a continuous, high-quality weld.

Adapting to Different Metals and Thicknesses

Welding different metals and varying thicknesses demands a deep understanding of how these factors influence welding parameters. Here are key considerations:

  • For Different Metals: When switching from steel to aluminum, you must adjust the welding speed and voltage. For instance, aluminum requires a higher welding speed due to its higher thermal conductivity. A speed of 18-20 inches per minute might be necessary, compared to 12-15 inches for steel.
  • For Varying Thicknesses: Thicker materials require higher voltage and slower welding speeds to ensure adequate penetration. For example, welding 1/4 inch thick steel may require a voltage setting of around 22-24 volts, compared to 18-20 volts for 1/8 inch steel.

Employing Best Practices for Continuous Welding

To ensure continuous, high-quality welding, here are some best practices:

  • Preheat Thicker Materials: Preheating minimizes the temperature difference between the welding arc and the metal. For thick steel plates, preheating to about 100-150 degrees Fahrenheit can be beneficial.
  • Utilize Pulse Welding: Pulse welding involves alternating between a high peak current and a lower background current. This technique is particularly effective for welding thin materials or out-of-position welds, as it reduces the heat input and minimizes distortion.

Incorporating these advanced strategies into your MIG welding practices enhances your ability to adapt to various challenges, ensuring consistent, high-quality welds across different materials and thicknesses. It’s about understanding the nuances of each task and applying the right techniques to achieve the best results. With a combination of knowledge, practice, and attention to detail, you can elevate your MIG welding skills to a professional level.

What is the optimal wire feed speed for MIG welding?

The optimal wire feed speed varies but generally, for a 0.030-inch wire diameter, around 200 inches per minute is effective for welding mild steel.

What voltage setting is needed for welding 1/8 inch thick steel?

Welding 1/8 inch thick steel typically requires a voltage setting of around 18-20 volts.

How does material thickness affect MIG welding parameters?

Thicker materials require higher voltage and slower welding speeds for adequate penetration. For example, 1/4 inch steel may need around 22-24 volts.

What are the maintenance essentials for MIG welding equipment?

Regular inspection of the welding gun, cleaning the nozzle, and checking gas hoses for leaks are essential maintenance practices.

How do different metals affect MIG welding techniques?

Different metals require adjustments in welding speed and voltage. For instance, aluminum needs higher welding speeds compared to steel due to its higher thermal conductivity.
