Can you TIG weld thin aluminum sheets?

Yes, TIG welding can effectively join thin aluminum sheets, requiring skill and proper technique.

Basics of TIG Welding Thin Aluminum Sheets

TIG (Tungsten Inert Gas) welding, also known as GTAW (Gas Tungsten Arc Welding), stands out as a highly precise method that is perfect for welding thin aluminum sheets. The technique involves using a non-consumable tungsten electrode to produce the weld, while an inert gas, typically argon, shields the weld area from atmospheric contamination.

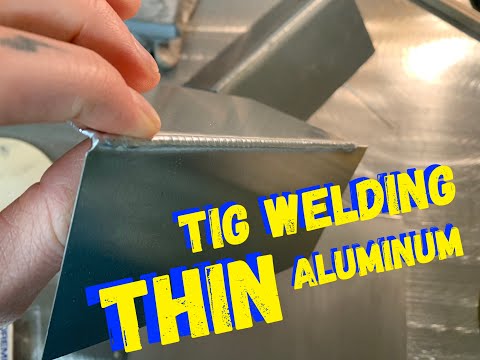

Can you TIG weld thin aluminum sheets

Understanding TIG Welding

TIG welding’s hallmark is its ability to yield high-quality, clean welds, especially on non-ferrous metals like aluminum. The process offers the welder superior control over the weld compared to other welding methods, such as MIG (Metal Inert Gas) welding. This control is crucial when working with thin aluminum sheets, where precision is paramount to prevent burn-through and warping.

The key to mastering TIG welding lies in the welder’s ability to maintain a steady hand and control the heat input with precision. The process can be slower than other welding methods, but the trade-off is a higher quality and stronger weld.

Advantages of TIG Welding for Aluminum

TIG welding offers several compelling advantages for welding aluminum, notably:

  • Superior weld quality: The precision and cleanliness of TIG welding produce aesthetically pleasing welds with minimal splatter.
  • Versatility: TIG welding is effective on a wide range of aluminum thicknesses, but it shines when applied to thin materials where other methods might falter.
  • Control: The welder has extensive control over the welding process, allowing for adjustments in real-time to accommodate for heat sensitivity in aluminum.

Aluminum Welding Challenges

Despite its advantages, TIG welding aluminum presents unique challenges:

  • Heat Conductivity and Distortion: Aluminum’s high thermal conductivity means it heats up and cools down quickly, leading to potential warping or distortion of the material. Welders must expertly manage heat input to mitigate these effects.
  • Cleaning and Preparation: Aluminum surfaces must be thoroughly cleaned before welding to remove any oxide layer or contaminants that could impair the weld quality. Proper cleaning involves using a stainless steel brush and solvents to ensure the surface is free of oils and other residues.

TIG Welding Techniques and Considerations

Achieving success with TIG welding thin aluminum sheets demands attention to several key techniques and considerations:

  • Precise Heat Control: The welder must finely tune the heat input to prevent burn-through. This often involves using a foot pedal to adjust the power output of the welder dynamically.
  • Proper Filler Material Selection: Choosing the right filler material is crucial. For aluminum, 4043 and 5356 are common choices, with 4043 being favored for its ease of welding and smooth finish.
  • Welding Speed and Angle: Maintaining an optimal welding speed and torch angle ensures even heat distribution and prevents warping.

By addressing these challenges with the right techniques and considerations, welders can achieve strong, visually appealing welds on thin aluminum sheets. The process requires patience and skill but mastering TIG welding for aluminum opens up a world of possibilities for fabrication and repair work in industries ranging from aerospace to custom automotive.

Equipment and Materials for TIG Welding Aluminum

Selecting the appropriate equipment and materials is pivotal for achieving success in TIG welding, especially when working with aluminum. The choice of welder, power settings, and filler materials can significantly influence the quality and integrity of the weld.

Selecting the Right TIG Welder

When choosing a TIG welder for aluminum, the decision between AC (Alternating Current) and DC (Direct Current) welders is crucial. AC welders are generally preferred for aluminum welding due to their ability to clean the oxide layer on aluminum’s surface during the welding process, a phenomenon known as “cleaning action.” This feature is vital for achieving strong, clean welds on aluminum.

The power requirements for welding thin aluminum sheets must also be considered. A welder with a power output ranging from 100 to 200 amps is typically sufficient for most thin aluminum welding applications. This range provides the flexibility needed to weld thin materials without causing burn-through or excessive distortion.

AC vs. DC TIG Welders

AC TIG welders are essential for effectively welding aluminum because they offer a balance between cleaning the oxide layer and penetrating the metal. The ability of AC welders to alternate between positive and negative currents ensures that the weld area is free of contaminants while adequately heating the aluminum for a strong weld.

On the other hand, DC TIG welders are more suited for welding ferrous metals. They provide deeper penetration compared to AC welders but lack the cleaning action required for aluminum, making them less ideal for this specific application.

Power Requirements for Thin Aluminum

Welding thin aluminum sheets requires a welder that can operate at low amperages to prevent burn-through while still providing enough heat to ensure proper fusion. A machine that offers a wide amperage range gives the welder the versatility needed to adjust for different thicknesses and welding positions. Additionally, features like pulse welding capabilities can help manage heat input, reducing the risk of warping and distortion in thin materials.

Welding Rods and Filler Materials

The selection of welding rods and filler materials plays a significant role in the quality of the weld. For aluminum, the choice of filler material affects the weld’s strength, corrosion resistance, and appearance.

Types of Filler Materials

There are several types of filler materials suitable for TIG welding aluminum, each with its own set of properties and applications:

  • 4043 Aluminum Alloy: Known for its excellent fluidity and reduced shrinkage, making it ideal for welding thin sheets.
  • 5356 Aluminum Alloy: Offers greater tensile strength and better corrosion resistance, suitable for marine applications.

Choosing the Right Filler Rod Diameter

The diameter of the filler rod is another critical consideration. For thin aluminum sheets, a thinner filler rod, typically ranging from 1/16 inch to 1/8 inch, is preferred. This size allows for better control over the weld pool and helps in producing a cleaner, more precise weld. The choice of rod diameter should match the thickness of the material being welded to ensure optimal fusion and strength.

By carefully selecting the right TIG welder, understanding the importance of AC versus DC welding for aluminum, adhering to the power requirements for thin materials, and choosing the appropriate filler materials and rod diameters, welders can significantly improve their welding results on aluminum. These considerations, combined with skill and practice, are key to mastering the art of TIG welding aluminum.

TIG Welding Techniques for Thin Aluminum Sheets

Mastering TIG welding techniques for thin aluminum sheets demands precision, patience, and a thorough understanding of the welding process. Proper preparation, equipment setup, and welding approach can significantly impact the quality and strength of the weld.

Welding Preparation and Setup

Before initiating the welding process, preparing the materials and setting up the equipment correctly is essential to ensure a successful weld.

Cleaning the Aluminum Surface

Aluminum surfaces must be cleaned meticulously before welding to remove any oxide layer and contaminants. Use a stainless steel brush designed for aluminum or solvents like acetone to clean the surface. This step is crucial because any impurities can lead to weld defects such as porosity or lack of fusion.

Setting Up the Welder

Configuring the welder properly is pivotal for TIG welding thin aluminum sheets. Adjust the amperage based on the thickness of the aluminum, with lower amperage for thinner materials to prevent burn-through. Ensure the TIG torch is equipped with a suitable tungsten electrode, typically pure tungsten or zirconiated tungsten for aluminum welding. The electrode should be sharpened to a point to focus the arc and reduce heat spread.

Welding Techniques and Tips

The technique used while welding plays a significant role in the outcome of the weld. Precision in controlling heat input, welding speed, and manipulation of the welding torch can mitigate common issues like warping and distortion.

Controlling Heat Input

Controlling heat input is paramount when welding thin aluminum sheets. Utilize a pulse welding technique to minimize heat input while still ensuring adequate penetration. Pulsing the weld helps in managing the heat affected zone, reducing the risk of warping and burn-through.

Welding Speed and Angle

Maintaining an optimal welding speed and angle ensures a consistent weld bead and penetration. Move the torch at a steady pace that allows the filler metal to fuse properly with the base metal without overheating the area. The torch angle should be around 10 to 15 degrees from vertical, allowing for good visibility and control over the weld pool.

Dealing with Warping and Distortion

Warping and distortion are common challenges when welding thin aluminum due to its high thermal conductivity. To counteract these issues, apply tack welds along the length of the seam before completing the weld. This technique helps in maintaining alignment and reducing the thermal stress during welding. Additionally, using a backing material to dissipate heat evenly or clamping the workpiece to a heat-sink can also be effective in minimizing distortion.

By adhering to these detailed preparation and welding techniques, welders can enhance their ability to produce high-quality, strong welds on thin aluminum sheets. The key lies in meticulous preparation, precise control of the welding process, and adapting techniques to manage the unique challenges presented by aluminum.

Can you TIG weld thin aluminum sheets

Troubleshooting Common Issues

Tackling the challenges in TIG welding thin aluminum sheets involves a deep understanding of common issues like cracking and porosity, and knowing how to enhance the appearance and strength of welds. By addressing these issues head-on, welders can significantly improve the quality and durability of their work.

Solving Cracking and Porosity

Causes of Cracking

Cracking often results from the high thermal expansion and contraction of aluminum during welding. It is particularly prevalent in alloys that are not designed for welding or when the material is too thin. To mitigate this, ensure proper alloy selection and preheat the material if necessary to reduce the thermal gradient.

Preventing Porosity

Porosity in welds can compromise the integrity and appearance of the weld. It is primarily caused by contamination and improper gas shielding. Using a high-quality argon gas shield, ensuring the welding environment is free from drafts that could disperse the shielding gas, and thoroughly cleaning the base and filler materials can help prevent porosity.

Weld Appearance and Strength

Improving Weld Appearance

A visually appealing weld is often a sign of quality and precision in welding. Achieving a smooth, uniform bead requires maintaining a consistent speed and angle, as well as adjusting the heat input to avoid excessive melt-through. Additionally, using a filler material that closely matches the base material in composition can help in achieving a clean, aesthetically pleasing weld.

Ensuring Weld Strength and Integrity

The strength and integrity of a weld are paramount, especially in applications where the welded structure is subject to stress or load. Proper technique and material preparation are critical. This includes choosing the right filler material, ensuring a clean welding surface, and controlling the heat input to avoid weakening the material around the weld. Implementing a post-weld heat treatment can also improve the distribution of residual stresses and enhance the overall strength of the weld.

By focusing on these aspects of TIG welding thin aluminum sheets, welders can overcome common challenges and achieve results that are not only structurally sound but also visually appealing. The key lies in diligent preparation, precise control during the welding process, and a thorough understanding of the material properties and welding dynamics.

What is the ideal thickness for TIG welding aluminum sheets?

For optimal results, TIG welding is best suited for aluminum sheets ranging from 0.020 inches to ¼ inch. Thicker materials may require preheating or multiple passes.

How much does a quality TIG welder for aluminum cost?

A reliable TIG welder suitable for aluminum can cost between $700 and $2,500, depending on its features, brand, and power capabilities.

What power settings are recommended for welding thin aluminum?

For thin aluminum sheets, a power setting between 20 to 60 amps is often adequate, ensuring a balance between penetration and minimizing burn-through.

How do I choose the right filler material for TIG welding aluminum?

Select a filler material based on the aluminum alloy being welded. For general purposes, 4043 and 5356 are popular choices, with 5356 offering greater strength but less fluidity.
