Yes, maintaining a TIG welding gun is straightforward with regular cleaning, inspections, and proper care.
Understanding TIG Welding Guns
TIG (Tungsten Inert Gas) welding, also recognized as GTAW (Gas Tungsten Arc Welding), stands out for its use of a non-consumable tungsten electrode to produce the weld. This welding method shines in its precision and cleanliness, particularly when working with thin materials or intricate designs. Its hallmark lies in the control and accuracy it offers, resulting in high-quality welds with an aesthetically pleasing, clean finish.

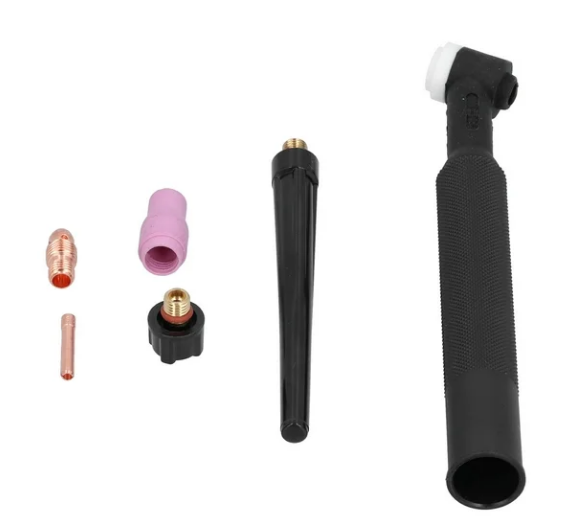

Components of a TIG Welding Gun
In the heart of a TIG welding gun, several essential components synergistically create the perfect welding environment.
- Tungsten Electrode: The tungsten electrode forms the core of the gun, generating the welding arc. Tungsten, chosen for its high melting point of around 3422°C (6192°F), stands resilient against the intense heat of welding.

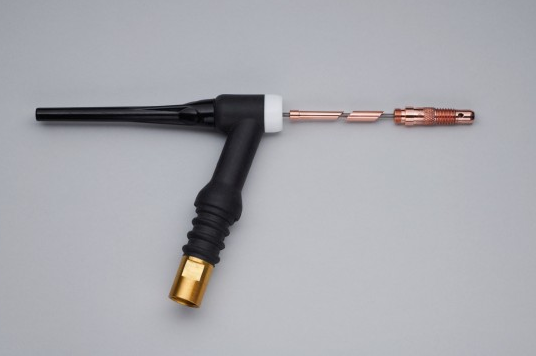

- Collet and Collet Body: These parts securely hold the tungsten electrode and guide the shielding gas flow, ensuring stability during welding.
- Nozzle: Typically crafted from ceramics, the nozzle expertly channels the shielding gas to the weld pool, safeguarding it against atmospheric contaminants.
- Shielding Gas: Argon or an argon mix shields the weld area from atmospheric gases like oxygen and nitrogen, which could otherwise introduce flaws into the weld.
- Power Supply: The gun relies on a steady current supply, either AC or DC, tailored to the specific requirements of the welding task.
Basic Functionality of TIG Welding Guns
The TIG welding gun thrives on its ability to generate a stable and controlled arc between the tungsten electrode and the workpiece. The welder skillfully feeds a filler metal into the weld pool, offering unparalleled precision in the welding process.
- Controlled Heat: With tools like a foot pedal or fingertip control, the welder adeptly manages the heat input, crucial for handling sensitive materials.
- Precision: This welding method grants the welder superior control over the process, an indispensable asset for complex or detailed welding tasks.
- Quality and Aesthetics: TIG welding is synonymous with clean, slag-free welds and minimal smoke, leading to a visually appealing finish often requiring no additional cleanup.
For those eager to dive deeper into the TIG welding process, the TIG Welding Wikipedia page is an excellent resource. It offers a wealth of information on the process’s history, techniques, and applications, providing a well-rounded view of this intricate welding method.
Maintenance Requirements for TIG Welding Guns
Maintaining a TIG welding gun is crucial for ensuring its optimal performance and longevity. Regular maintenance not only extends the life of the welding gun but also maintains consistent welding quality and safety. For any welder, a well-maintained TIG welder is an indispensable tool, key to achieving precise and clean welds.
Frequency of Maintenance Checks
For frequent users, conducting daily checks is ideal to ensure all components are functioning at their best. This regular inspection includes looking for signs of wear or damage, especially in the tungsten electrode and ceramic nozzles, which directly affect the welding quality. Less frequent users should perform thorough inspections before and after each use. Conducting a comprehensive monthly check, focusing on aspects like cable integrity and gas hose connections, is highly beneficial.
Common Maintenance Procedures
Effective maintenance of a TIG welding gun encompasses several critical procedures:
Cleaning the Gun: Regular cleaning is essential. Dust or debris buildup can impair electrical conductivity, negatively impacting the welding process. Using a clean, dry cloth to wipe down the gun and its components is a straightforward yet effective method.
Inspecting and Replacing Tungsten Electrodes: Tungsten electrodes can wear down or become contaminated over time. It’s crucial to inspect the electrode for any signs of wear or contamination and replace it as needed to maintain a stable arc.
Checking Gas Hoses and Connections: It’s vital to ensure that gas hoses are free from cracks and that the connections are secure to maintain proper shielding gas flow, a critical component of TIG welding.
Examining the Collet and Collet Body: These parts should be in good condition and free of debris. A damaged collet or collet body can result in poor electrode grip and inaccurate welding.
Nozzle Maintenance: Keeping the ceramic nozzle free of cracks or blockages is essential. A damaged nozzle can disrupt gas flow, leading to poor shielding and potential contamination of the weld.
For in-depth knowledge about the various aspects of TIG welding, including maintenance, the TIG Welding Gun Wikipedia page provides comprehensive information.
Regular and thorough maintenance of a TIG welding gun is essential not just for prolonging the equipment’s life but also for ensuring consistent welding quality and safety. A well-maintained TIG welder is a reliable tool for producing high-quality, precise welds. Adhering to these maintenance practices ensures that TIG welding guns remain in excellent condition, ready for any welding task.
Step-by-Step Guide to Maintaining a TIG Welding Gun
Proper maintenance of a TIG welding gun is essential to ensure its longevity and peak performance. This step-by-step guide provides detailed instructions on how to maintain your TIG welding gun effectively.
Cleaning and Inspecting the Gun
Regular cleaning and inspection are fundamental for keeping your TIG welding gun in optimal condition. Here’s a comprehensive approach to this crucial step:
Safety Precautions
Before starting any maintenance, ensure that the welding machine is turned off and disconnected from the power source. Safety glasses and gloves are a must for protection.
Exterior Cleaning
Begin by wiping down the exterior of the gun with a clean, dry cloth. Pay close attention to the handle and trigger area, removing any dirt, dust, or residue. This simple step helps prevent contaminants from entering the gun’s internal components.

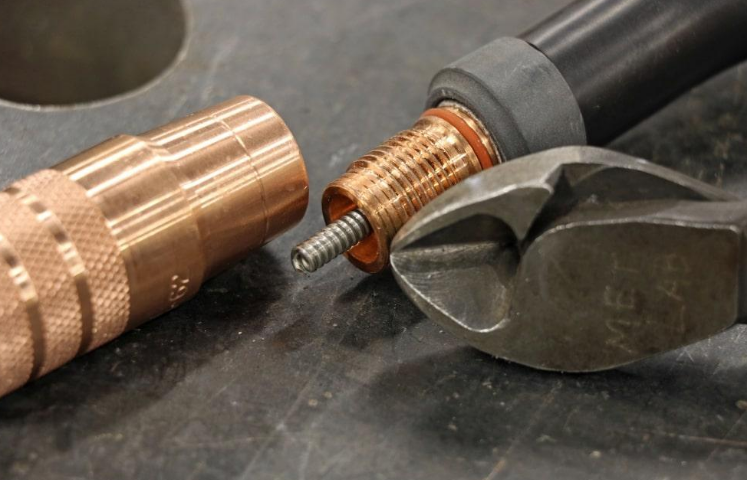

Disassembly
To access the internal components, disassemble the gun according to the manufacturer’s instructions. This typically involves removing the nozzle, collet, collet body, and tungsten electrode.
Cleaning Internal Parts
Tungsten Electrode: Inspect the tungsten electrode for wear or contamination. If necessary, clean it with a dedicated electrode cleaning brush or replace it with a new one.
Collet and Collet Body: Ensure these components are clean and free of debris. Use a wire brush to remove any stubborn residue.
Nozzle: Examine the ceramic nozzle for cracks or blockages. Clean it using compressed air or a specialized nozzle cleaning tool.
Inspecting Cables and Connections
Check the welding cables and connections for any signs of damage, such as fraying or loose connections. Ensure that they are securely attached to the welding machine and the gun.
Reassembly
Carefully reassemble the gun, ensuring that all components are correctly positioned and tightened according to the manufacturer’s specifications.
Replacing Worn Parts
Over time, certain components of a TIG welding gun may wear out and need replacement. Here’s how to identify and replace worn parts:
Tungsten Electrode Replacement
- Signs of Wear: Look for a blunted or contaminated electrode, which can lead to an unstable arc.
- Replacement: If the electrode shows signs of wear, replace it with a new, correctly sized electrode.
Nozzle and Collet Body Replacement
- Signs of Wear: Cracks, chipping, or wear in the nozzle or collet body can disrupt gas flow and electrode stability.
- Replacement: Replace damaged or worn nozzles and collet bodies with compatible replacements.
Cable Replacement
- Signs of Wear: Inspect cables for fraying, kinks, or exposed wires.
- Replacement: If cables are damaged, replace them with the appropriate replacements to maintain safe and efficient operation.
By following this step-by-step guide, welders can ensure that their TIG welding guns remain in top-notch condition, providing consistent performance and high-quality welds. For further information on TIG welding and related topics, you can refer to the TIG Welding Wikipedia page.
Troubleshooting Common Issues with TIG Welding Guns
TIG welding, known for its precision, can encounter common issues that affect the welding process. This guide provides specific troubleshooting steps for addressing these issues effectively.
Identifying Common Problems
Before diving into troubleshooting, it’s essential to identify the most frequent problems encountered with TIG welding guns. Here are some common issues welders may face:
Erratic Arc or Arc Instability
- Possible Causes: Contaminated tungsten electrode, improper gas flow, or incorrect settings.
- Identification: An arc that flickers, wavers, or fails to maintain consistency during welding.
Porosity in Welds
- Possible Causes: Inadequate shielding gas, contaminated base metal, or improper welding technique.
- Identification: Welds with visible bubbles or holes within the bead.
Excessive Spatter
- Possible Causes: Incorrect amperage settings, poor electrode condition, or improper gas coverage.
- Identification: Spatter of molten metal particles surrounding the weld area.
Inadequate Penetration
- Possible Causes: Insufficient current, improper electrode angle, or welding too quickly.
- Identification: Welds that do not fully penetrate the base metal.
DIY Fixes vs. Professional Repairs
After identifying the issue, it’s important to determine whether a DIY fix or professional repair is required. Here’s a detailed approach:
DIY Fixes
In many cases, welders can address common problems with TIG welding guns on their own:
Erratic Arc: Check the tungsten electrode for contamination or wear. Replace or re-sharpen it if needed. Ensure proper gas flow and set the correct parameters.
Porosity: Verify the shielding gas flow rate, clean the base metal thoroughly, and refine your welding technique. Practice and adjustments can often resolve this issue.
Excessive Spatter: Adjust the amperage settings, maintain a clean electrode, and ensure adequate gas coverage. Proper technique can significantly reduce spatter.
Inadequate Penetration: Increase the current, adjust the electrode angle, and weld more slowly to achieve better penetration. Practice and technique refinement can help.
Professional Repairs
Some issues may require the expertise of a professional welder or technician:
Severe Damage: If the gun or its components are severely damaged or worn beyond repair, it’s advisable to seek professional repair or replacement.
Complex Electrical Issues: Problems related to the welding machine’s electrical components may require the expertise of a qualified technician.
Gas System Problems: Issues with the gas supply or regulator should be examined by a professional to ensure safe operation.
Identifying common issues in TIG welding guns is the first step towards effective troubleshooting. Depending on the severity of the problem, welders can often perform DIY fixes, but professional assistance may be required for more complex or severe issues. Maintaining a high level of skill and adhering to best practices in TIG welding can significantly reduce the likelihood of encountering these problems.
Extending the Life of Your TIG Welding Gun
Proper maintenance and care of your TIG welding gun are essential to maximize its lifespan and ensure consistent performance. This guide explores best practices for regular maintenance and provides tips for ensuring long-term functionality.
Best Practices for Regular Maintenance
Maintaining your TIG welding gun involves a series of best practices to keep it in top condition:
Daily Cleaning
- Importance: Clean the exterior of the gun daily to prevent dirt and debris from entering internal components.
- Procedure: Use a clean, dry cloth to wipe down the gun, paying special attention to the handle and trigger areas.
Periodic Disassembly and Inspection
- Importance: Regularly disassemble the gun to inspect and clean internal components.
- Procedure: Follow the manufacturer’s instructions to disassemble the gun and inspect the tungsten electrode, collet, collet body, and nozzle for wear or contamination.
Tungsten Electrode Maintenance
- Importance: The tungsten electrode is critical for the welding arc. Proper maintenance ensures a stable arc.
- Procedure: Inspect the electrode for wear or contamination. Sharpen or replace it as needed.
Gas Hose and Connection Check
- Importance: Proper shielding gas flow is vital for weld quality. Inspect gas hoses and connections regularly.
- Procedure: Ensure gas hoses are free from cracks, and connections are secure to maintain the correct gas flow.
Electrical Cable Inspection
- Importance: Damaged cables can compromise safety and performance.
- Procedure: Check welding cables for signs of damage such as fraying or exposed wires. Ensure secure connections to the welding machine.
Nozzle and Collet Body Maintenance
- Importance: These components affect shielding gas flow and electrode stability.
- Procedure: Inspect the ceramic nozzle for cracks or blockages and clean as needed. Ensure the collet and collet body are free from debris.
Tips for Ensuring Long-Term Functionality
To prolong the functionality of your TIG welding gun, consider the following tips:
Proper Storage
- Importance: Storing the gun correctly prevents damage and contamination.
- Tip: Store the gun in a clean, dry location, and protect it from dust and moisture when not in use.
Training and Skill Development
- Importance: Proper welding technique reduces wear on the gun and improves weld quality.
- Tip: Invest in training and practice to refine your welding skills and minimize wear on the gun.
Use High-Quality Consumables
- Importance: Quality consumables, such as tungsten electrodes and nozzles, contribute to better welds and longer gun life.
- Tip: Invest in reputable, high-quality consumables for consistent performance.
Regular Calibration and Maintenance Checks
- Importance: Periodic calibration and professional maintenance checks can detect and address potential issues early.
- Tip: Schedule regular maintenance checks with a qualified technician to ensure your gun remains in top condition.
By following these best practices and tips, you can extend the life of your TIG welding gun, reduce maintenance costs, and continue to achieve high-quality welds. Regular maintenance and proper care not only maximize the gun’s lifespan but also contribute to safe and efficient welding operations. For further information on TIG welding and related topics, you can refer to the TIG Welding Wikipedia page.
