Introduction to Plasma Cutting
Plasma cutting stands as a process that employs an ionized gas jet at high velocity to cut through metal. It has revolutionized metal fabrication by providing high precision cuts at an accelerated speed, making it a preferable option for many industries.
The Basic Principle of Plasma Cutting
At its core, plasma cutting involves passing a gas through a narrow opening and ionizing it with an electrical arc. This ionized gas, or plasma, conducts electricity and reaches temperatures capable of melting metal swiftly and with great precision. The high-speed plasma and compressed gas blow the molten metal away, resulting in a clean cut.
Types of Metals Commonly Cut by Plasma Cutters
Plasma cutters excel at slicing through a variety of metals, including but not limited to, stainless steel, aluminum, brass, and copper. They handle varying thicknesses with ease, from thin sheets to metal several inches thick. However, the cutter’s power output—typically measured in amperage—and the type of gas used play crucial roles in determining the cut quality and speed. High-power models cut through metal up to 2 inches thick, whereas smaller units are suitable for material up to a quarter-inch thick.
In terms of efficiency, plasma cutters outpace many traditional cutting methods. They can cut metal at a rate of up to 20 inches per minute, depending on the material’s thickness and the machine’s power. The cost varies with the cutter’s specifications; entry-level models may be affordable at a few hundred dollars, but industrial-grade machines can command prices of several thousand dollars.
Quality also factors into the plasma cutting equation. A high-quality plasma cutter achieves a cut accuracy within +/- 0.01 inches, and the edge quality often requires minimal post-cut finishing. However, one should note the potential downsides, such as the high energy consumption that can impact the operational costs, especially when dealing with thicker materials.
Overall, plasma cutting offers a compelling balance of speed, precision, and versatility. With advances in technology, it continues to push the boundaries of what’s possible in metal fabrication, providing a robust solution for cutting a wide array of metal types and shapes.
apabilities of Plasma Cutting
Plasma cutting thrives as a versatile and swift method for slicing through different metals. It brings efficiency and speed to the table, often outperforming traditional methods when it comes to the sheer pace and versatility.
Maximum Cutting Thickness for Various Metals
The maximum cutting thickness plasma cutters can handle varies widely. For instance, a cutter with a power output of 40 amps can typically slice through steel up to 1/2 inch thick. In contrast, an 80-amp machine might handle up to 1 inch of steel. The maximum thickness for aluminum and stainless steel might be slightly less due to their thermal conductivity and resistance characteristics. It’s essential to consult the manufacturer’s specifications for precise capabilities. Higher-end models with increased amperage and improved design can achieve cuts in steel up to 2 inches thick.
Limitations of Plasma Cutting on Different Metal Types
Despite its impressive capabilities, plasma cutting does have its limitations. It may struggle with extremely thick or very thin metals, leading to less precision or slower speeds. For very thin metals, there’s a risk of warping due to the intense heat. Moreover, certain metals like reflective aluminum can present challenges due to reflectivity and thermal conductivity, which may affect the cutter’s efficiency and the quality of the cut.
The operational costs for plasma cutting can escalate quickly; a high-quality machine with advanced specs and longer lifespan may have a price tag in the tens of thousands, not including the electricity it consumes. However, for many applications, the speed—often exceeding 200 inches per minute for thin sheets—and precision justify the investment. For example, intricate patterns on 1/4 inch steel can be cut at speeds of approximately 100 inches per minute.
In summary, plasma cutting offers a powerful solution for cutting various metals, balancing speed and precision against operational costs. Its capabilities can significantly reduce production time, enhancing productivity across numerous applications.
Plasma Cutting Across Metal Varieties
Plasma cutting, a process versatile in nature, has made cutting across different metals efficient, maintaining quality and speed.
Cutting Ferrous Metals with Plasma Cutters
Ferrous metals, which contain iron, are a stronghold for plasma cutting. When cutting ferrous metals like mild steel, a plasma cutter with an output of 25 amps can comfortably cut through a 1/4 inch plate at a speed of approximately 20 inches per minute. To cut through a 1-inch thick steel plate, a more powerful 80-amp cutter is suitable, operating at the same speed. The efficacy of plasma cutting technology allows it to maintain high quality in the cuts with minimal kerf and heat-affected zones, which is essential when precision is paramount.
Efficacy of Plasma Cutting on Non-Ferrous Metals
Non-ferrous metals such as aluminum and copper also yield to plasma cutters, but with specific considerations due to their thermal properties. For aluminum, a plasma cutter must counteract the high thermal conductivity to ensure a precise cut. A 60-amp plasma cutter can make a 1/2 inch deep cut in aluminum at about 10 inches per minute. Copper, being more reflective, requires careful handling, yet a powerful plasma system with proper gas selection can cut through a 1/2 inch thick copper plate at similar speeds.
The costs for plasma cutting, especially on non-ferrous metals, can vary. The machines capable of handling such metals come with advanced technologies and therefore, might cost more, both in purchase price and operational expenses. For example, a high-definition plasma system suited for non-ferrous metals may have a price point upwards of $30,000.
In essence, plasma cutting provides a versatile solution that meets the demands of cutting both ferrous and non-ferrous metals, offering businesses and fabricators a tool that can quickly adapt to various materials and thicknesses.
Factors Influencing Plasma Cutting Efficiency
Plasma cutting efficiency depends on a variety of factors, from the metal being cut to the specifics of the plasma system used.
Impact of Metal Composition and Properties
The composition and properties of a metal can greatly impact the speed and quality of plasma cutting. Hard metals like high-carbon steel require more power to cut than softer metals like aluminum. A metal’s thickness also affects the necessary power level and cutting speed. For example, cutting through a 1/2 inch plate of mild steel at optimal quality may require a 45-amp output at a speed of 15 inches per minute, while softer aluminum of the same thickness could be cut at faster speeds of around 20 inches per minute with the same power setting.
Furthermore, the presence of alloying elements like chromium can affect the plasma cutting process, as these elements may change the melting point and thermal conductivity of the material. The higher the melting point, the more power is needed, and this increases the overall operational costs. For instance, cutting alloy steels will typically require more power and thus more energy than cutting carbon steel, leading to higher costs.
Role of Plasma Gas in Cutting Different Metals
The type of plasma gas used is another critical factor in cutting efficiency. For most applications, a combination of argon and hydrogen is ideal for cutting stainless steel and aluminum due to the high-quality cuts and speed it offers. Cutting thicker steel often requires gases like oxygen to achieve a faster cut speed and better quality, although this can increase the cost due to the higher price of oxygen compared to air.
The efficiency of the plasma cutter is also determined by gas pressure and flow rate. The incorrect setting can lead to poor cut quality and reduced cutting speed. For example, an incorrect flow rate could decrease the cut speed by as much as 5-10 inches per minute, which significantly impacts production time.
The prices for different plasma gases can fluctuate, with argon-based mixtures typically being more expensive than air or nitrogen. These costs can impact the overall budget for a project, making it essential to choose the right gas for the job to balance efficiency and expense. The efficiency, therefore, hinges not only on the machine’s specifications but also on the correct choice and management of plasma gases.
Comparison with Other Metal Cutting Techniques
Cutting is one of several options available for cutting metal, each with its advantages and disadvantages depending on the specific requirements of the job.
Plasma Cutting vs. Laser Cutting: Metal Compatibility
Plasma cutting is highly compatible with various metals, including both ferrous and non-ferrous types, and it can handle higher thickness levels cost-effectively. For example, plasma can cut steel up to 2 inches thick, while laser cutting is typically more efficient for thicknesses up to 5/8 inch. The initial cost for a plasma cutting system can be significantly lower than a laser cutter; for instance, a mid-range plasma system might cost around $15,000, whereas a comparable laser system could exceed $100,000.
However, laser cutting offers greater precision and lower heat input, which can be crucial for certain applications. Lasers can achieve a cutting speed of up to 70 inches per minute on 1/4 inch stainless steel, while plasma might achieve around 40 inches per minute on the same material and thickness with a comparable quality cut.
Plasma Cutting vs. Water Jet Cutting: Quality and Precision
When comparing plasma cutting to water jet cutting, the latter is known for its high precision and ability to cut without introducing heat, eliminating the possibility of a heat-affected zone (HAZ). A water jet can cut materials up to 10 inches thick with a high degree of precision, but the cutting speeds are considerably slower, and the cost per hour can be higher due to slower cutting speeds and higher maintenance costs. Plasma cutting, conversely, is faster but may not match the precision of water jet cutting, especially on complex patterns or very thick materials.
Water jet machines can cost anywhere from $100,000 to over $300,000, whereas plasma cutting systems can be set up for a fraction of that cost, albeit with different performance specs. For example, a high-definition plasma cutting system may cost around $50,000 to $100,000 but will cut faster than a water jet, making it more efficient in terms of time.
Each cutting technology has its niche where it excels, and the choice between plasma, laser, and water jet cutting will depend on the specific requirements for metal type, thickness, precision, quality, and production speed, as well as budget constraints.
Enhancing Plasma Cutting for Various Metals
Improving plasma cutting involves adapting to the various metals and their properties, as well as embracing technological advancements.
Technological Advancements in Plasma Cutting Equipment

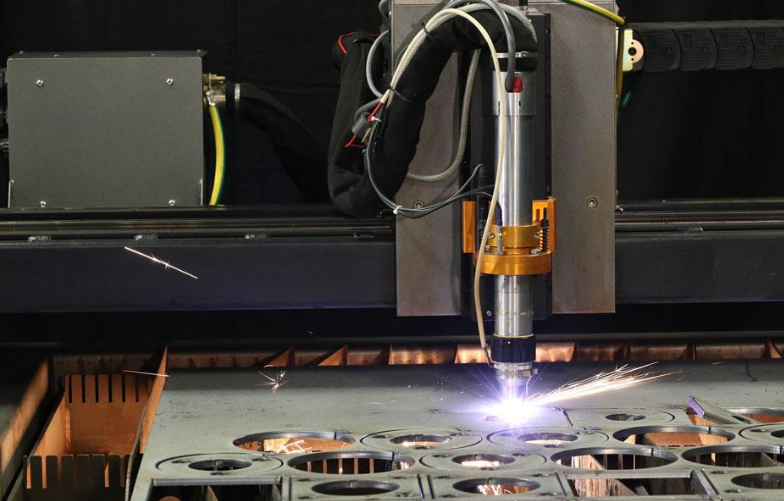

New technologies in plasma cutting systems are raising the bar for power, precision, and ease of use. The introduction of CNC (Computer Numerical Control) technology allows for more precise cuts, better quality, and reduced waste. Modern plasma cutters have become more energy-efficient, with some systems offering a 30% reduction in energy consumption compared to older models. Additionally, newer machines may feature automatic gas adjustment, which can help optimize performance and cut quality across different metals and thicknesses.
For example, a latest-generation plasma cutter with a power rating of 60 kW can cut up to 6-inch thick stainless steel, something that was much harder to achieve efficiently with older systems. Moreover, such advancements have brought the cost per cut down by improving the speed and quality of cuts, which reduces the time and resources needed.
Best Practices for Plasma Cutting Multiple Metal Types
When cutting various types of metals, certain best practices can ensure the best results. Preparing metal surfaces properly by removing rust and coatings can increase cut quality and speed. For instance, cleaning a steel surface before cutting can improve the cut speed by up to 20%, saving time and reducing operating costs.
Choosing the right consumables for the job is also crucial. Using an appropriate cutting tip that matches the current and metal type can enhance the cut quality and extend the life of the consumables. For example, using a fine-cut consumable at lower amperage on thin stainless steel can enhance the cut quality and increase the consumable life by up to 50%.
Additionally, maintaining a consistent standoff height is key to achieving optimal results. A proper standoff can affect the edge quality and precision of the cut. A variation of even 1 mm in standoff height can result in a 5% variation in cutting speed and a noticeable difference in cut quality.
By following these best practices and leveraging technological advancements, operators can enhance plasma cutting capabilities across a range of metals, improving efficiency, reducing costs, and delivering better-quality cuts.
