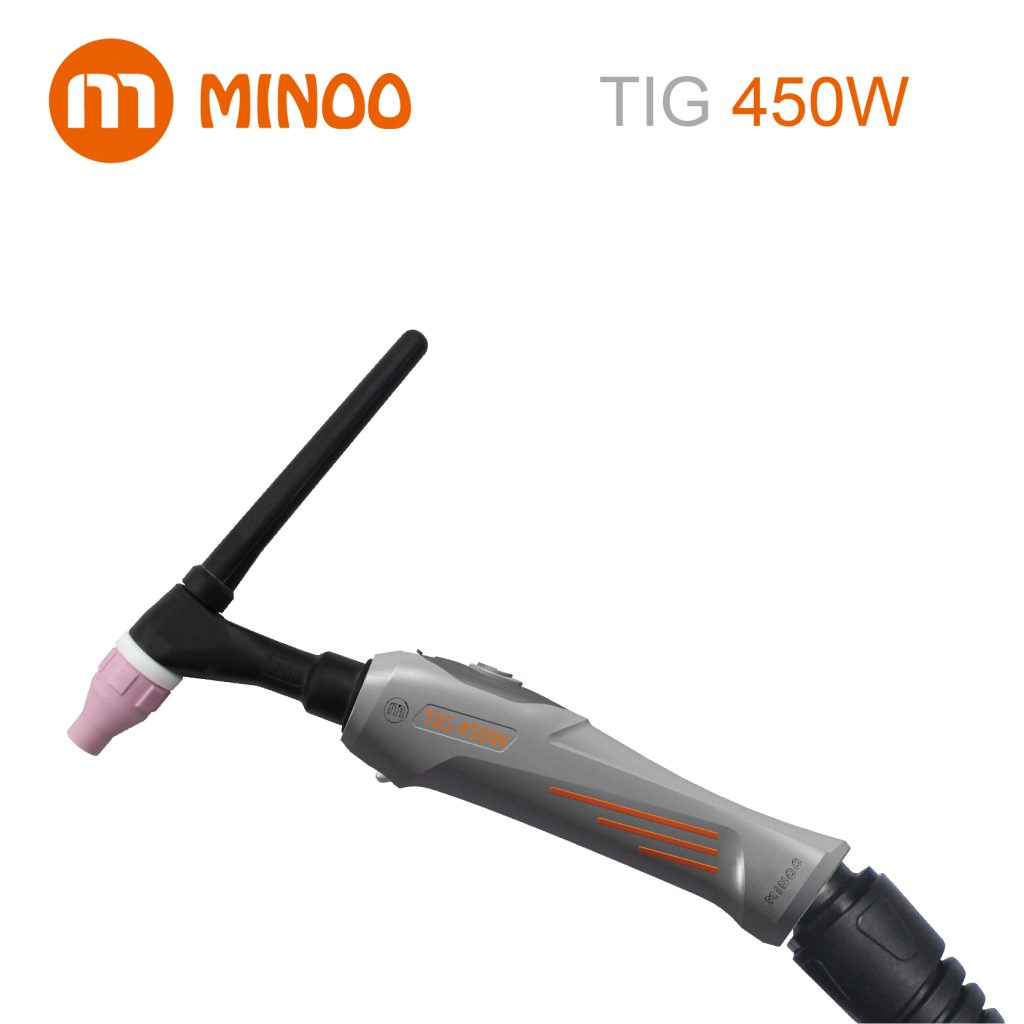

TIG 450W
Technical Parameter
WATER COOLED
DUTY 35% DC: 400A
DUTY 35% AC: 280A
WIRE SIZE :0.5~3.2mm
Procurement code
ABT1174-101
4M
ABT1178-101
8M

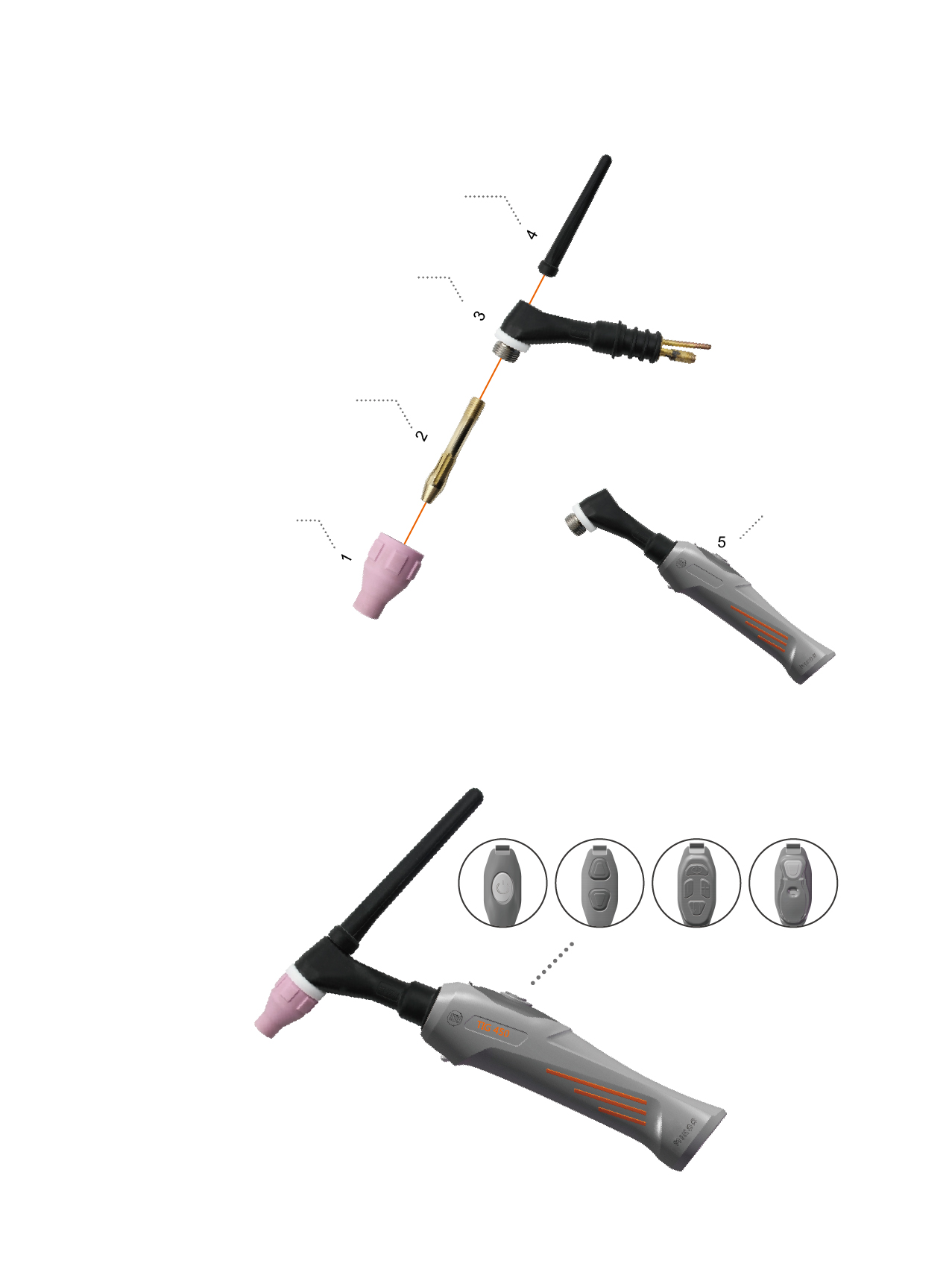

Consumables procurement code(with”🔴”is the standard configuration)
| Position | Code | Ref. | Description |
|---|---|---|---|
| 🔴1.1 | MGS0702 | GR6 | 9.5mm |
| 1.2 | MGS0701 | GR8 | 16mm |
| 1.3 | MGS0703 | GR10 | 12.5mm |
| 1.4 | MGS0704 | GR12 | 19.5mm |
| 🔴2.1 | MGU0607-16 | 775.0062 | 1.6mm |
| 2.2 | MGU0607-24 | 775.0063 | 2.4mm |
| 2.3 | MGU0607-32 | 775.0064 | 3.2mm |
| 2.4 | MGU0607-48 | 775.0066 | 4.8mm |
| 🔴3 | MGI0563 | ||
| 🔴4.1 | MHJ0611 | ||
| 4 | MHJ0612 | ||
| 🔴5 | AGI0563-00 |
